16" window balance set needed

Handy Person from 34681, Florida

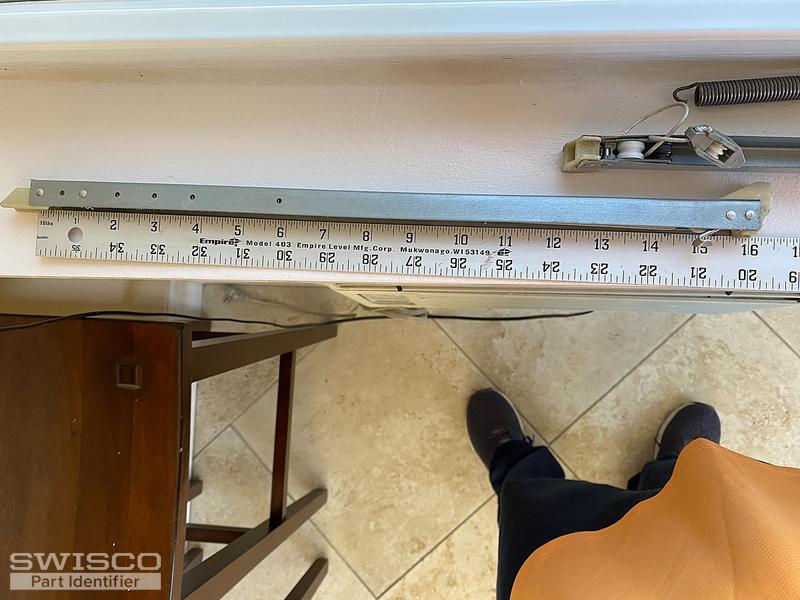

The nylon cord broke which rendered this set useless
Length is 16 inches
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

It looks like you have either our S351-16, with a 15-002 bottom attachment, or S390-16, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You will also need a stamp option of 1550. If you have any further questions please let us know!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Handy Person from 34681, Florida
Mine is 1 inch, so I need the 15-002

I have no idea what I stamp option of 1500 means - can you explain?
Emily
Emily from SWISCO
SWISCO
Expert

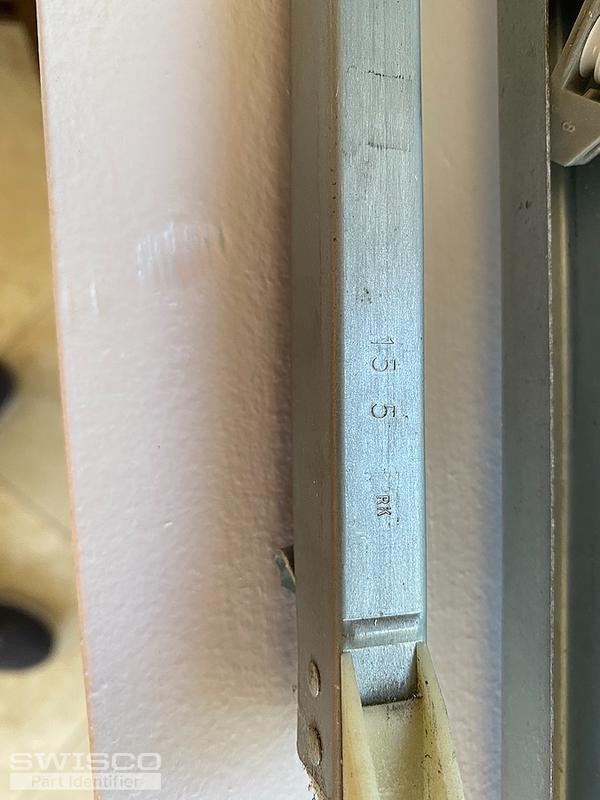

If you go on the S351-16's product page, you'll see a list of number options to the right of the product image. The stamp on your channel balance is marked "15 5" which means you'll choose the option 1550. This option indicates that the balance will support a window sash between 13 and 17 pounds. I hope this helps. Let us know if you have any further questions!
