17 4 JR CALDWELL 18" channel balance
Home Owner from Portland, OR
Sep 20, 2023 1:50 pm

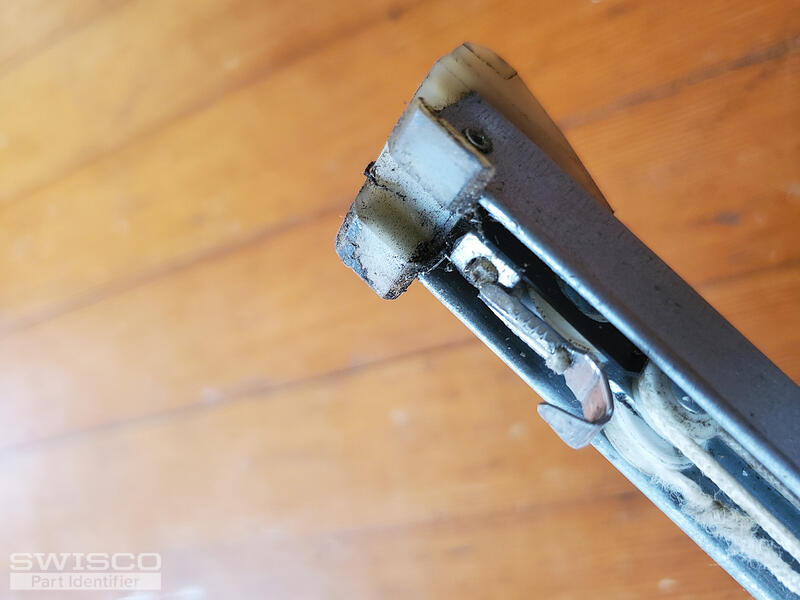

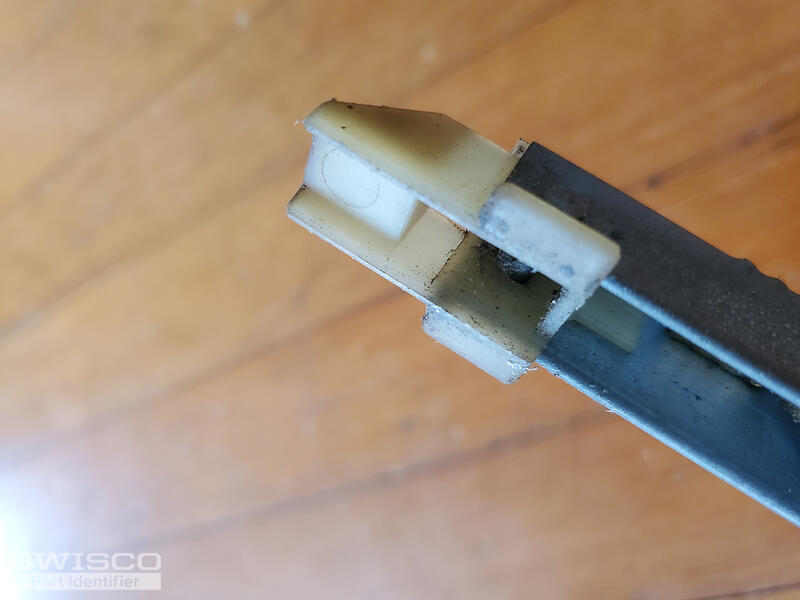

Hello, Please help me gets 2 replacements for my window. It is 18" long, 1/2" wide, marking says "17 4 JR CALDWELL". Thank you.
5 user uploaded images
2 Replies
Lauren from SWISCO
Sep 21, 2023 9:51 am
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You will need a 18" balance with a 1740 stamp option. Please review and let me know if you have any additional questions!
Comparison of the S378, S380 and S385 balance shoes.
