The stamp is 19 6 B.S.I.

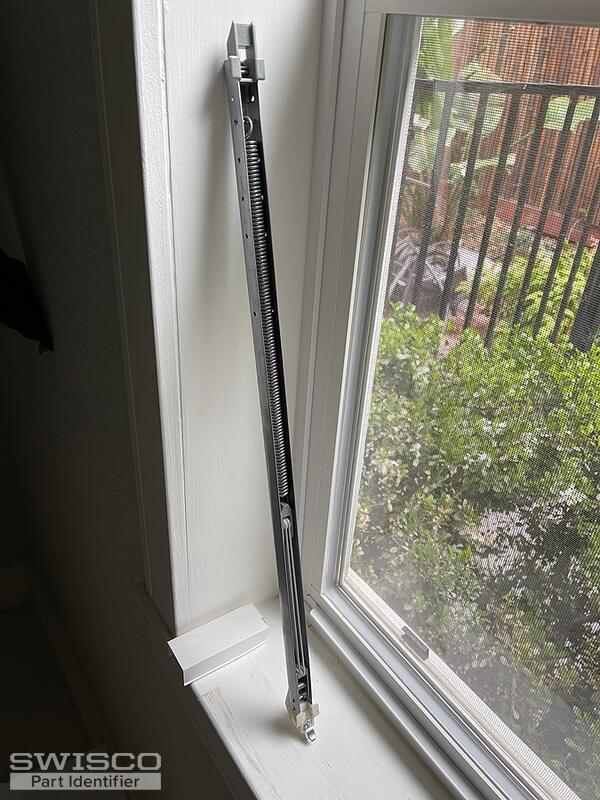

The measurements I took of the balancer are:
L: 19 5/8"
H: 5/8"
W: 1/2"
The only issue in measurements I find is on the bottom part which on the diagram sent shows a measurement of 1 1/8" but mine measures 1 1/16". Not sure if this makes a difference?
19 6 originally for Milgard 2006
Quick Learner from Los Angeles CA
May 31, 2023 4:21 pm
3 user uploaded images
3 Replies
Quick Learner from Los Angeles CA
May 31, 2023 4:23 pm
The weight is about 15lbs
1 user uploaded image
Emily from SWISCO
Jun 2, 2023 3:00 pm
Hello there!
Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length of 19-5/8" which is what makes it custom.
What I will do now is email you a purchase link and price quote for (2) that you can use to place an order on our website.
