1944 house wooden window sash which raises up .

Home Owner from Seattle

Feb 23, 2017 6:34 pm

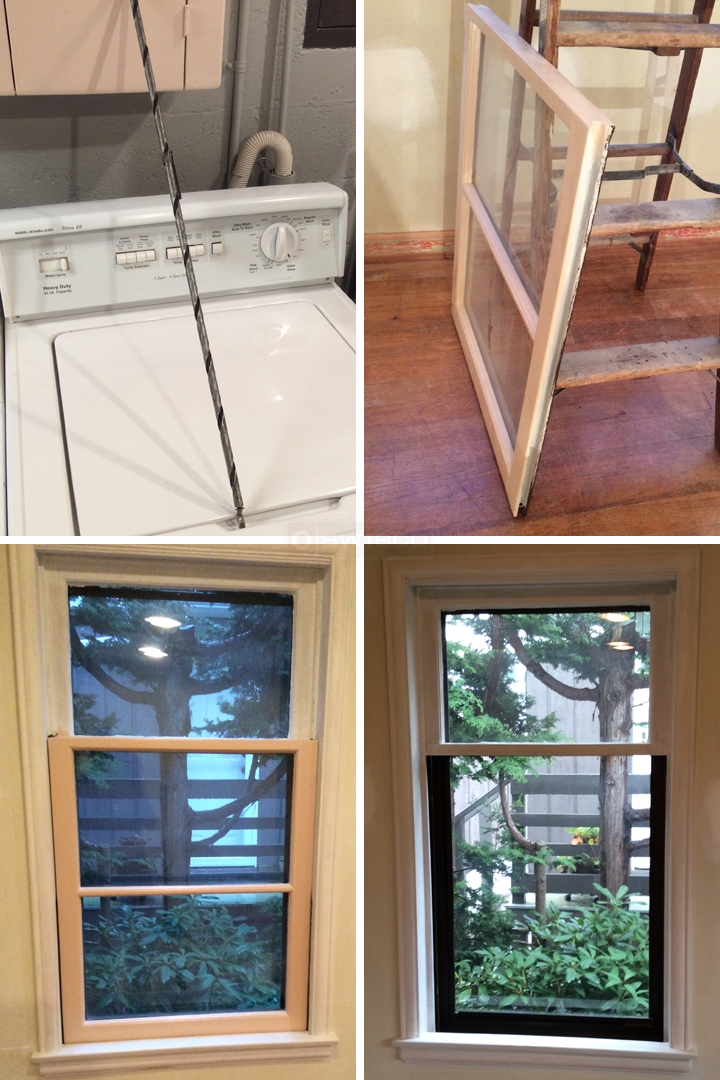

The old mechanism didn't work, and I can't find a replacement. I need help with what kind to buy from you.The sash is 31 1/2 inches tall, the channels are 5/8 " wide and 3/4" deep. It weighs 10 pounds. The sash is shown in place and removed.

User submitted photos of window hardware.

4 Replies

Paul from SWISCO

Feb 28, 2017 1:15 pm

I'm afraid your balance system is no longer available. That said I believe you can use our Series 500 spiral balance with a 5/8" outer tube. I'd also recommend a 17-012 bottom bracket, which attaches to the bottom of the sash. For a 10 pound sash you should be able to use a red tip color option. I would just confirm the length of the old outer tube.

Quick Learner from Seattle

Mar 1, 2017 12:11 am

My reference no. is D81904 Thank you for the fast reply.You said to verify the old tube length. Overall it is 303/4 " long. The sash is 311/2"long.Will the series 500 31" be the correct one? Paul responded to my original question. Noel

Paul from SWISCO

Mar 1, 2017 11:16 am

Hmm... if the length of the old tube is 30-3/4", then I think you could get away with using our S500-31, yes.
