1970 era steel bifold doors

Handy Person from Addison, IL 60101

Jul 15, 2019 11:09 am

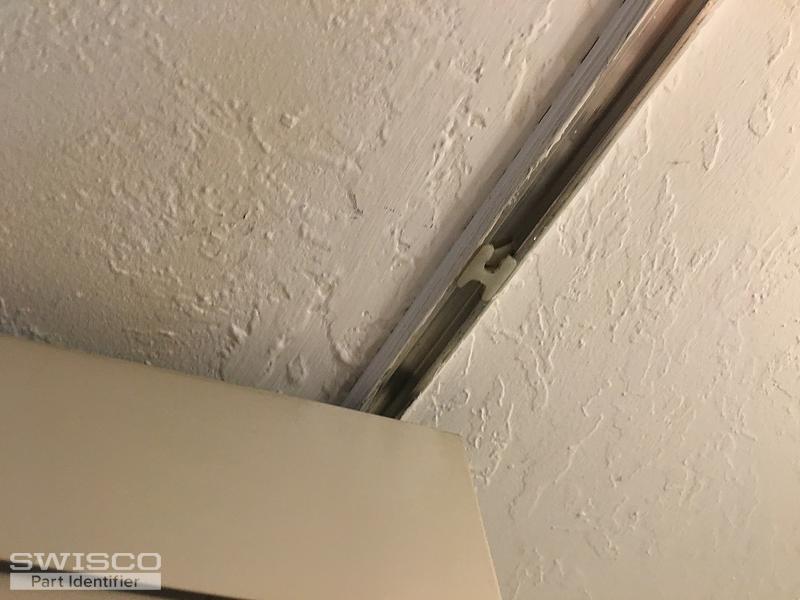

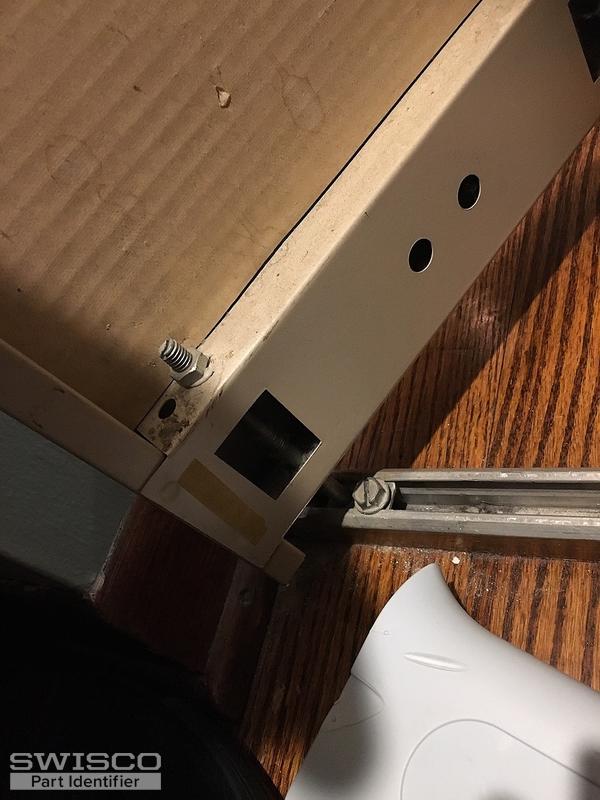

Hi, I want to replace all hardware on 3 of these bifold doors (including top and bottom tracks). The door openings are 4' x 8 '. All of the plastic clips are worn out and the tracks are beat up.

5 user uploaded images

9 Replies

Bob from SWISCO

Jul 22, 2019 8:30 am

Thanks for writing in. We may be able to help, but we need information to get started. Can you tell us the diameter of the pins and caps? Can you also tell us the height of the track? Finally, do you know the brand name of the door? That would be a huge help. Many thanks.

Handy Person from Addison, IL 60101

Jul 24, 2019 7:21 am

Leigh Full - Vu doors
Hinge pins - 5/16"
Guide pins - 1/4"
Track Height - 1"
What do you mean by caps?

Tom from SWISCO

Jul 25, 2019 10:52 am

Thank you! Don't worry about the caps; some bifold pivot pins use white nylon caps to plug into their corresponding guide in the track, but Leigh pins do not work this way.

Speaking of Leigh pins, look at our 21-049, 21-048, and 21-058. Let me know what you think!

Handy Person from Addison, IL 60101

Jul 28, 2019 10:20 am

Hi, thanks for the info. Also need the 5/16 spring loaded pivot pin for the top of the door. Also, do you sell the guide rails?
Thanks.

Paul from SWISCO

Jul 29, 2019 9:31 am

Unfortunately, the top 5/16" spring loaded top pin is no longer available and neither are the tracks. I'm afraid the hardware Tom picked out are the best options we have for this old closet door.

Home Owner from Columbus OH

Jun 7, 2020 7:44 pm

Hello - I have closet doors similar to these that need repaired, and I have ordered the parts recommended in this thread. Please forgive the stupid questions, but could you provide any pointers on how to best go about taking down doors like this for repair? If I just loosen the screw on the top fixed end of a door, can I then just pull the door off once loose? Any additional pointers as to how to put the doors back up? Do you set the bottom first, and then put in the top part?

Thanks!

Tom from SWISCO

Jun 11, 2020 9:33 am

Hello! We actually have an instructional video that shows you how to remove this kind of door. Please let me know if this is of any help to your project.

Home Owner from Columbus OH

Jun 13, 2020 4:30 pm

Just what I was looking for, and very helpful.

Thanks!
