1970s Steel Bifold Door Parts Needed

Home Owner from Broomfield CO
Sep 23, 2024 11:50 am

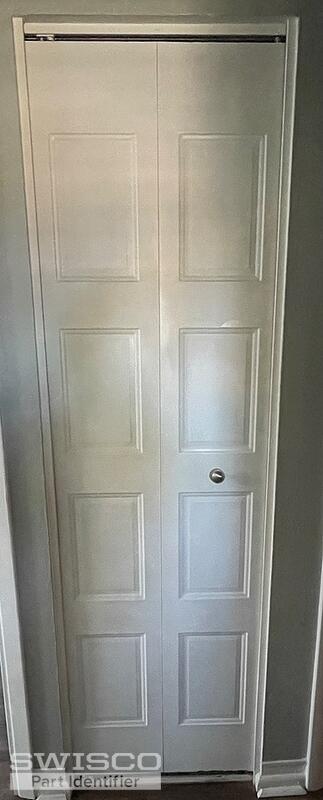

Help! I love my steel doors but various parts, like the bottom pivot bracket, are breaking or missing. I need help finding ALL parts for these doors as a lot of parts are missing for them to be operational. I have included pictures of the parts that I have. I don't need the track or hinges. Hopefully, this will be enough as I can't find a maker's mark on the doors and am unsure of their brand.
IMG_3357 IMG_3356 IMG_3352 IMG_3370
4 user uploaded images
2 Replies
Home Owner from Broomfield CO
Sep 25, 2024 3:51 pm

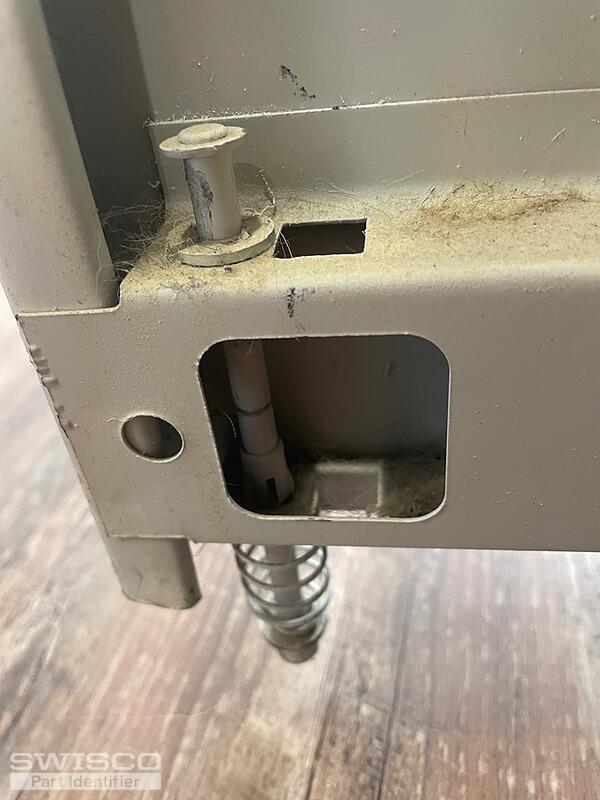

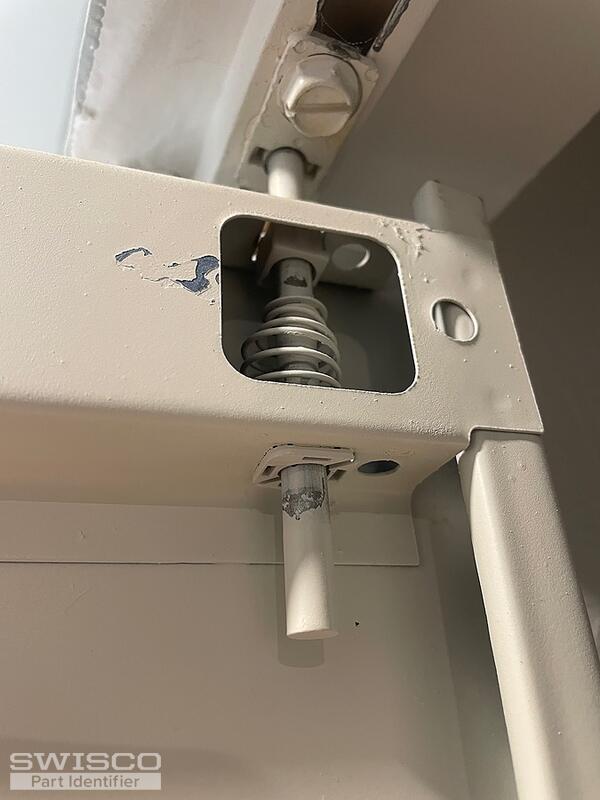

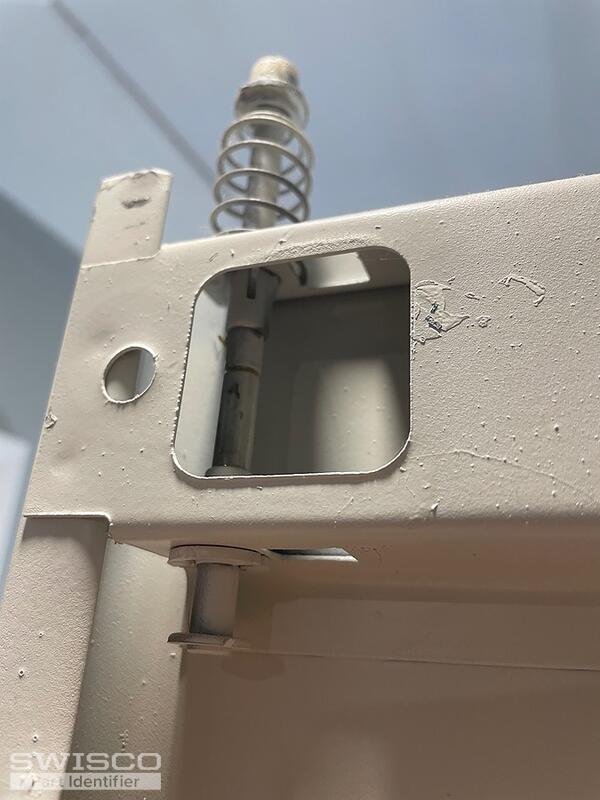

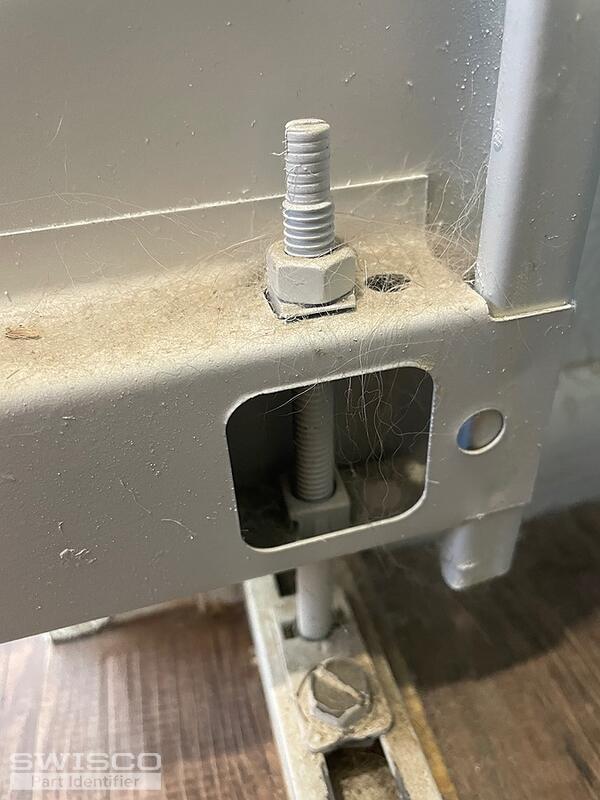

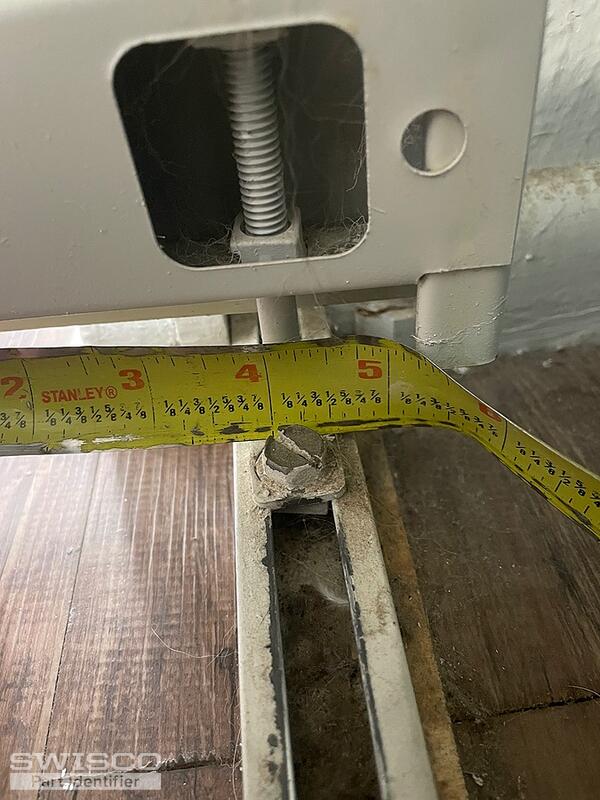

Photos of good parts on another closet door.
IMG_3364 IMG_3365 IMG_3366 IMG_3367 IMG_3368
5 user uploaded images
Paul
Paul from SWISCO
Sep 27, 2024 3:05 pm
SWISCO
EXPERT

Hello,

I believe we can supply the pins and bifold parts you need. The pivot pin bracket resembles the Peachtree 21-210. The bolt shown in your photo looks like part of the 21-210. It also looks like your door uses a combination of the 21-026B, 21-252, and 21-157. See the 21-071 top pivot and guide pin, as well as the 21-003 pivot. Please compare the specifications of each part to confirm if they match your original hardware. Thanks for posting!
