1970's era bifold hardware

A quick learner from USA says:

March 21, 2019

Need help with these replacement parts for 1970s metal closet bifold doors. I am attaching some pictures.

I have pins, but need caps, springs, and whatever holds the pin in place.

Can you help me?

Thumbnail of the uploaded file named robin.jones 3.jpeg

Thumbnail of the uploaded file named Robin.jones 2.jpeg

Thumbnail of the uploaded file named robin.jones 1.jpeg

Paul from SWISCO responded:

March 26, 2019

Hello,

We'd be happy to help, but we'll need a little more information to get started. Is there a name of the manufacturer on the inside of the door? Also, what is the diameter of the metal pin and nylon cap? May we see the track, the pivot block and the bottom threaded pivot pin? With that information, we should be able to narrow down your options. Thank you!

A home owner from Montgomery, Al says:

April 1, 2019

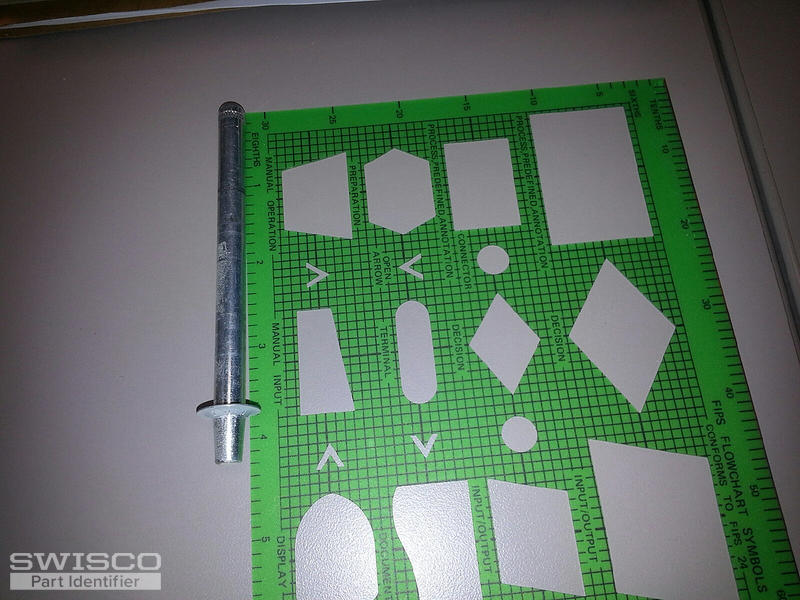

I believe the pin is 5/16 diameter and 4" or so in length.

Thumbnail of the uploaded file named file-5.jpeg

Thumbnail of the uploaded file named manuf.png

Tom from SWISCO responded:

April 2, 2019

Thank you for replying back with more information. The one pin you are showing us is our 21-041. The pin with the nylon cap is the 21-005 or it could be the 21-065 with the spring. Take a look at all parts mentioned and see what you think.

Bifold Door Pin

21-005

$4.10

Bifold Door Top Pivot and Guide Pin, Fenestra

21-065

$4.89

Bi-fold Door Pin Assembly, National
