1988 HURD Casement Window replacement parts

Home Owner from Troy, NY

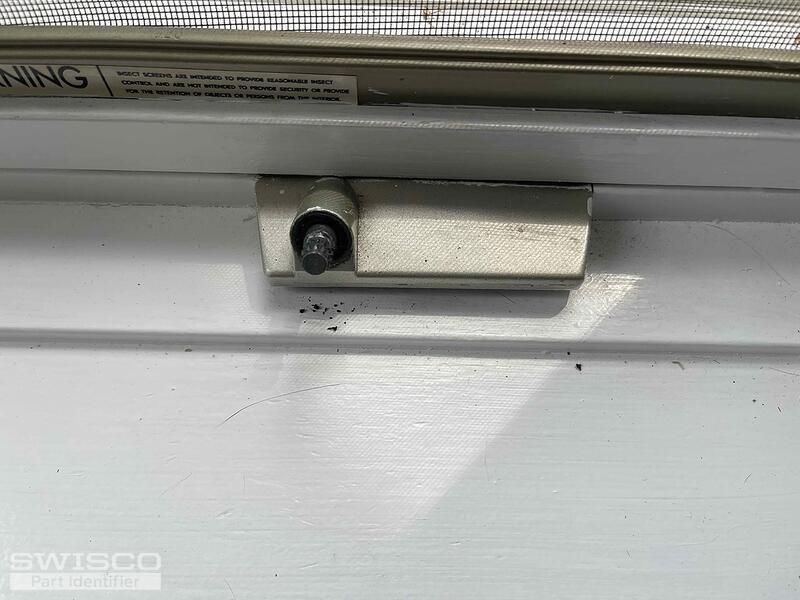

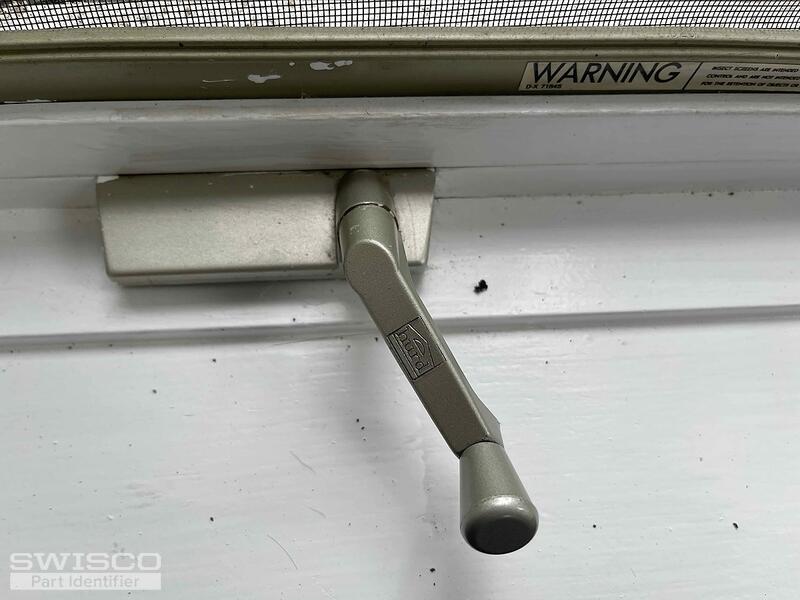

We recently moved into a 1910 home with a 1988 addition that has HURD casement windows. At the moment, we only have one crank handle that we need to move around to operate four windows:


Two windows with openings measuring 1'8 ½" x 2'7 ½"


Two windows with openings measuring 2'5" x 5'8"


We would like to order three additional crank handles.
In addition, one of the bottom brackets (07866) on the smaller casement window is broken and needs to be replaced. Could you please provide the correct part numbers for these items?
It would also be very helpful if you could share a complete replacement parts list for these windows, as we anticipate needing additional parts over time.
Thank you so much for your assistance,
Kim

5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hi Kim. I believe a handle that can fit an 11/32" diameter spline should work. See the 39-114L. For a stud bracket, see if either the 39-545 or 39-560 match what you have. Let me know what you think.

Dimensions for 39-545
Dimensions for 39-545
Dimensions for 39-545
Dimensions for 39-545
