I need to replace these seals
Please help
Thank you

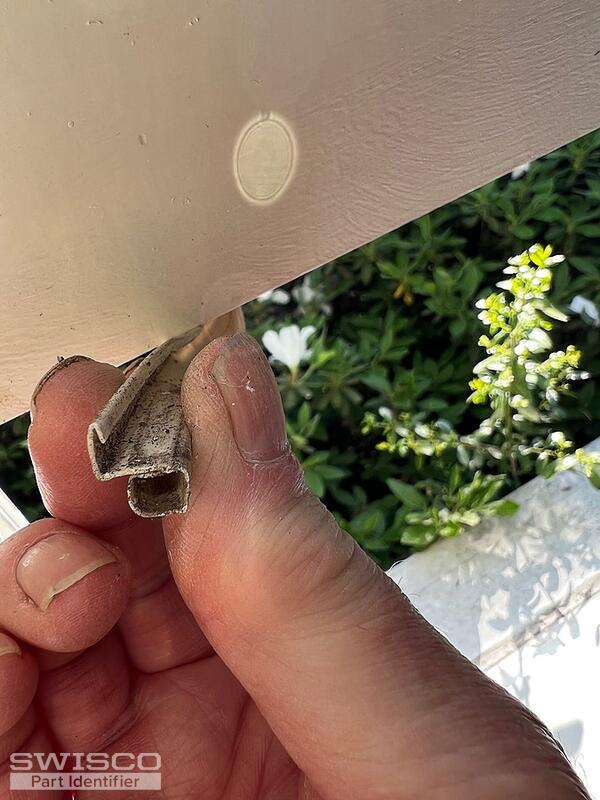

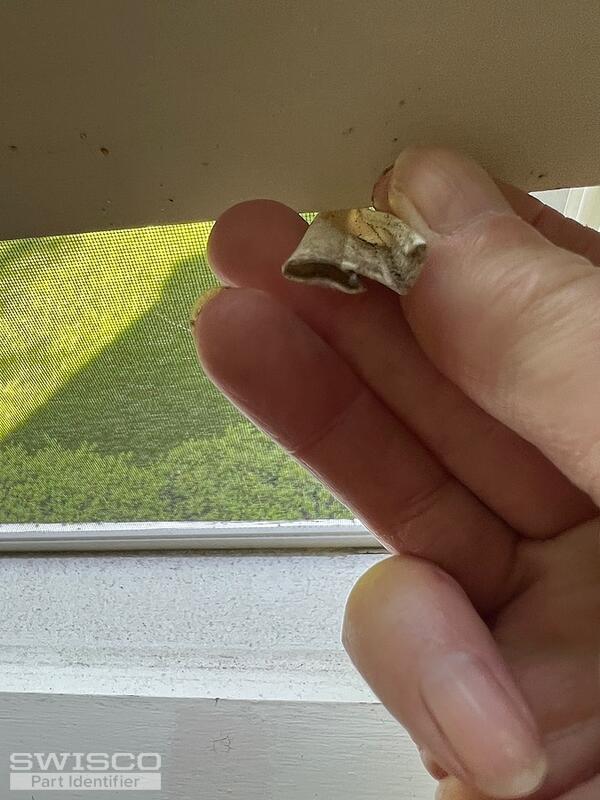

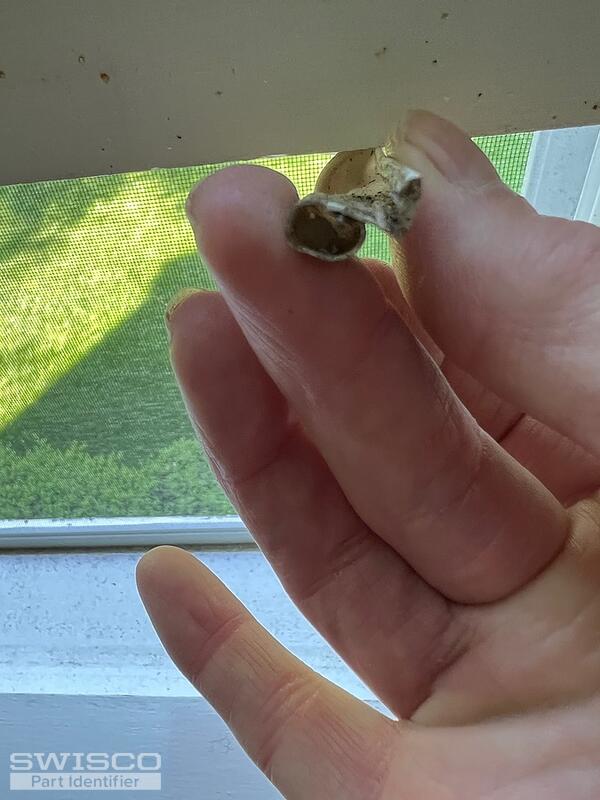

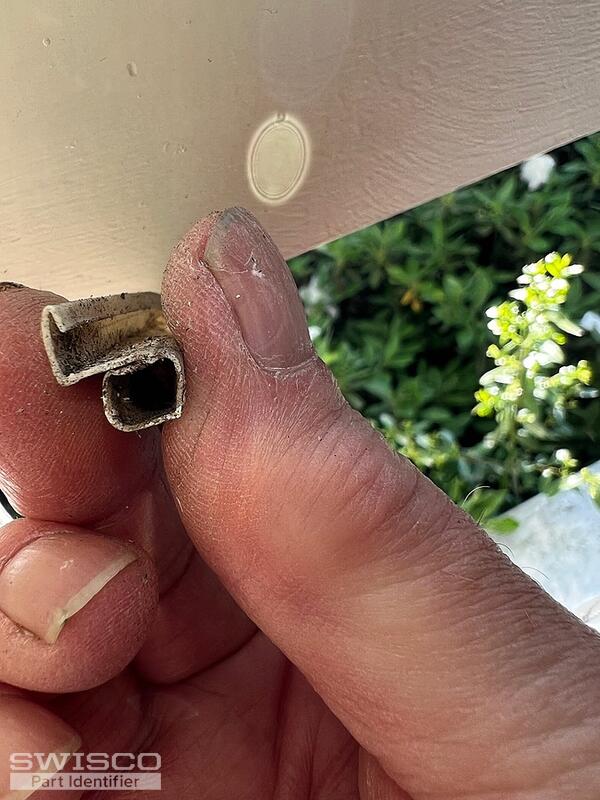

1990 era Marvin double hung window weather stripping bottom seal
Quick Learner from Weston ct
Jun 10, 2023 7:48 pm
4 user uploaded images
9 Replies
Bob from SWISCO
Jun 11, 2023 10:36 am
Hello there. Start by looking at our 58-055. This bubble seal is offset and mounts with a kerf seal. See the end profile dimensions below and see if you think this could work for you.
Profile view of 58-055
Quick Learner from Weston ct
Jun 11, 2023 11:21 am
Thanks Bob
I'll check it
I'll check it
Quick Learner from Weston ct
Jun 11, 2023 11:32 am
Bob
I checked and the dimensions seem to work except I'm not sure the kerf on my window is wide enough
I measured it with inserting business cards-
5 make a snug fit
I measured them and it's about 3/32"?
Think the barbs on the insert will allow it to go in?
Joe
I checked and the dimensions seem to work except I'm not sure the kerf on my window is wide enough
I measured it with inserting business cards-
5 make a snug fit
I measured them and it's about 3/32"?
Think the barbs on the insert will allow it to go in?
Joe
Bob from SWISCO
Jun 12, 2023 10:36 am
I think it would be okay; the "ribs" on the 58-055 kerf are meant to flex. If the gap is a little smaller than our kerf at 3/32", then the ribs would bend to fit while acting as a brace to prevent it from yanking out on its own.
If you're still worried it's too big, you could consider our 58-170B as an alternative. The bubble is a different design, and it's not quite as angled as the 58-055, but the kerf is slightly smaller at .105". It may be worth considering.
Profile view and dimensions for 58-170B
Quick Learner from Weston ct
Jun 12, 2023 11:28 am
Thanks Bob
I'll give the 055 a try
I'll give the 055 a try
Bob from SWISCO
Jun 12, 2023 11:58 am
Sounds good! Thank you for considering us for your business and please let me know if I can be of any further assistance.
Quick Learner from Weston ct
Jun 26, 2023 5:48 pm
I purchased and just received the 58-055 bubble seal.
IT'S A PERFECT REPLACEMENT FOR THE DOUBLE HUNG MARVIN WINDOW BOTTOM SEAL.
Anyone needing a replacement bottom seal- this is it!
Thank you Swisco
IT'S A PERFECT REPLACEMENT FOR THE DOUBLE HUNG MARVIN WINDOW BOTTOM SEAL.
Anyone needing a replacement bottom seal- this is it!
Thank you Swisco
Bob from SWISCO
Jun 27, 2023 8:01 am
You're welcome! I'm so happy to hear that our suggestion worked for you. Please feel free to reach out if you needed anything else.
