1993 charmac closet mirror door

Start a new Discussion

Quick Learner from California

Dec 21, 2014 7:16 pm

Please help me identify if this part is avaialable

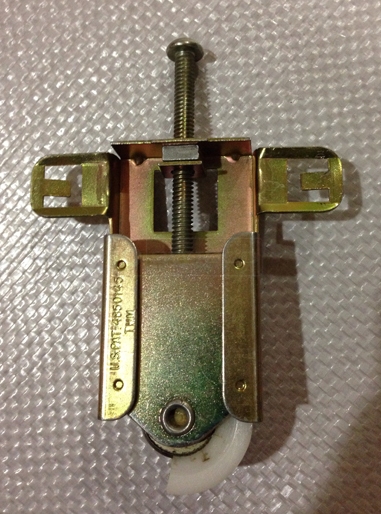

User submitted photo of their closet door roller.

5 Replies

Dave Sr. from SWISCO

Dec 22, 2014 1:47 pm

Hi! Thanks for contacting us. I can't quite tell if your roller has a concave or convex wheel, but I think it might be concave. Look at our 23-064 to start and let me know if this can work for you.

Home Owner from California

Dec 23, 2014 9:26 am

Thank you! It does have a concave wheel. I took a look and I believe it will work.

Thanks again for your time!

KC

Home Owner from California

Jan 9, 2015 12:20 pm

I need to replace this roller for a 1995 Charmac door. I see from prior responses that you think 23-064 might be the right choice. However, I am concerned about the clearance between the back "wall" of the roller and the two small tabs (as seen in the third photo). Mine appears to be 6/16" (or 3/8"). Would 23-064 still work?

Paul from SWISCO

Jan 9, 2015 12:59 pm

The 23-064 remains our closest match. The distance from the tabs to the front of the roller is a light 7/16". Yours 3/8", so it's a very negligible difference that shouldn't affect anything.
