1997 Soft Life Window Parts

Handy Person from Maryland

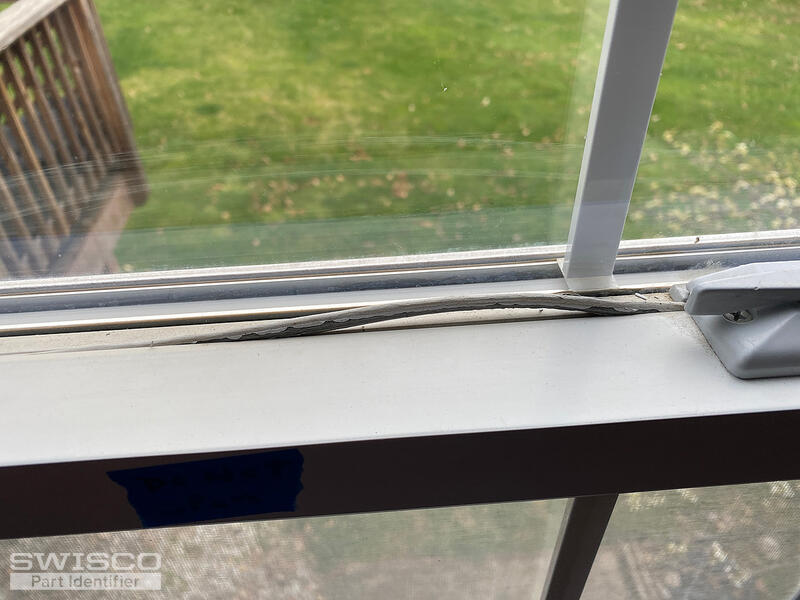

Need parts for 1997 Soft Lite vinyl windows, two seals and two latches.
4 user uploaded images
3 Replies
Handy Person from Maryland

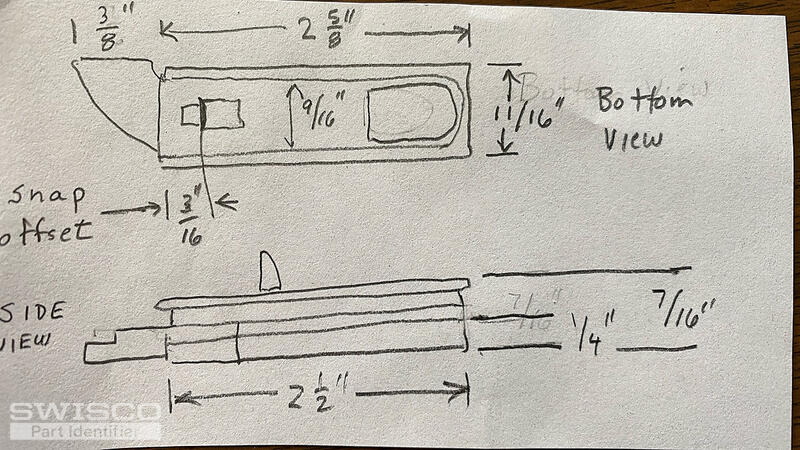

Tilt latch drawing attached. Looks like the latches might be a 26-243 / 26-244 L/R pair.

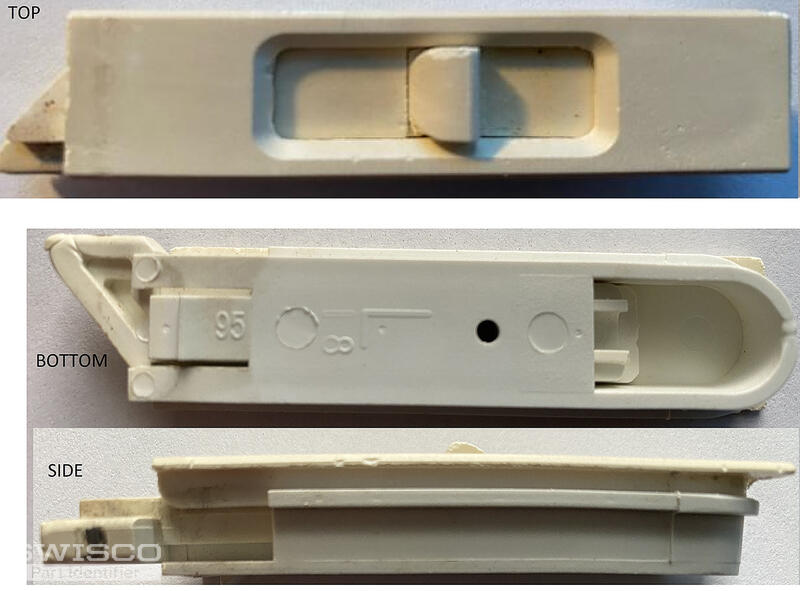

Adding part views for this 1997 Soft Lite Window Lift Lever

2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that our best match for your tilt latches would be the 26-243 and 26-244. We'll include the dimensions from our product page below.

Alternate view of 26-243
Alternate view of 26-243

Profile view of 26-243
Profile view of 26-243

As for the weatherstripping, we would need to see an end profile photo of yours fully removed from the window. We'll also need you to write out the exact width of the backing and pile height to narrow down your options. Thank you!
