1999 woodland park camper

A quick learner from Cadott Wi. 54727 says:
September 23, 2020

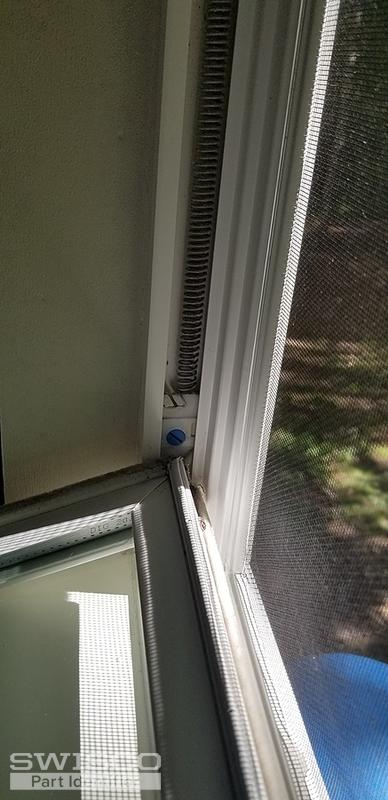

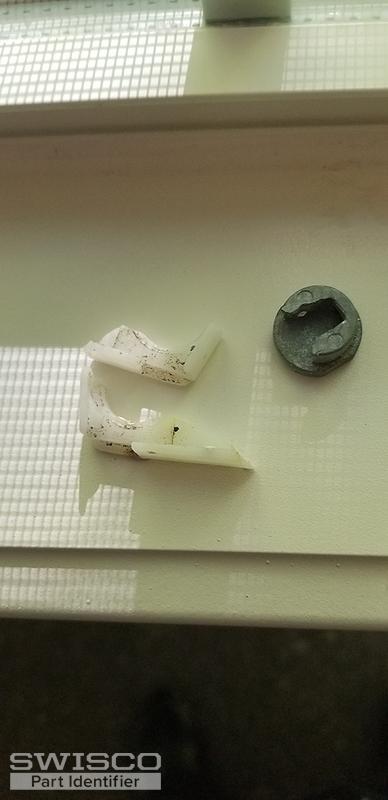

Hi we need the foot and boot for our windows. They are from a 1999 Woodland Park park .odel camper. The name of the windows are manufactured by Carefree(?) Thanks for any help you can give us. Tim Poppe (715) 289-4628 or cell 715 577-6110
Thumbnail of the uploaded file named 20200918_100724.jpg
Thumbnail of the uploaded file named 20200918_100618.jpg
Thumbnail of the uploaded file named 20200918_100752.jpg
Thumbnail of the uploaded file named 20200918_100733.jpg
Thumbnail of the uploaded file named 20200918_100534.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 28, 2020

Your old shoe looks like a match for either our 15-220 or 15-218. Review the pictures and dimensions we show for each part and let me know what you think.
A quick learner from Cadott Wi. 54727 says:
October 7, 2020

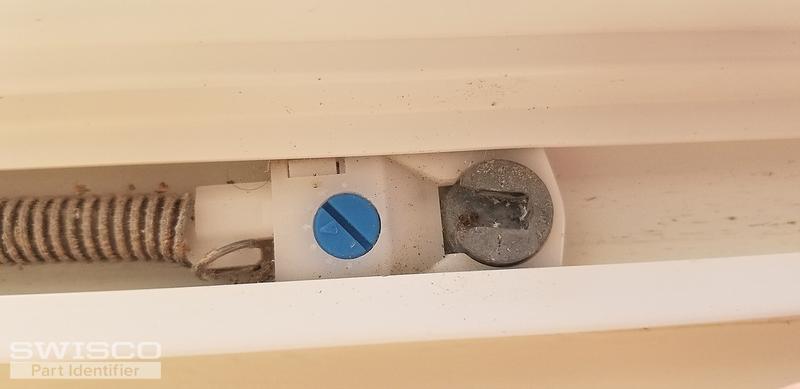

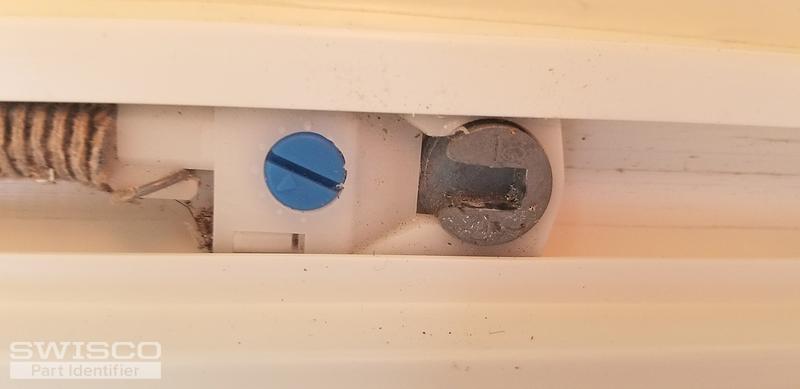

These are better pictures of the items we need. The otherones you sent didnt seemlike the rightones unless the company changed the looks. Thanks Tim

Thumbnail of the uploaded file named 20201007_153550.jpg
Thumbnail of the uploaded file named 20201007_153541.jpg
Thumbnail of the uploaded file named 20201007_160416.jpg
Thumbnail of the uploaded file named 20201007_160426.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2020

I'm afraid these photos don't tell us anything new about your pivot shoe. I can confidently say that the 15-218 and 15-220 are the best matches we have in our inventory. If neither one will work for you, then we have nothing else that will.

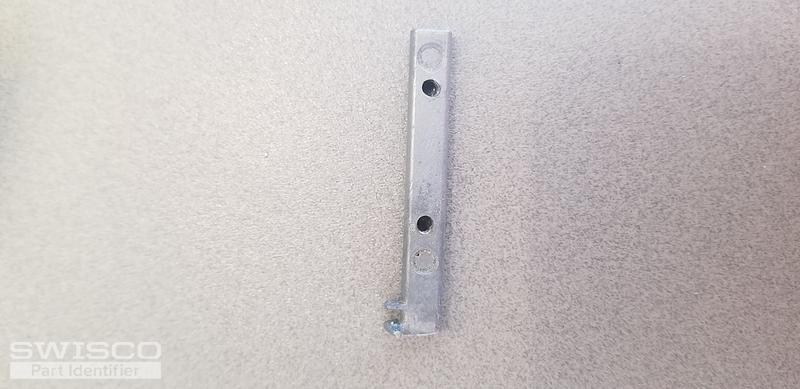

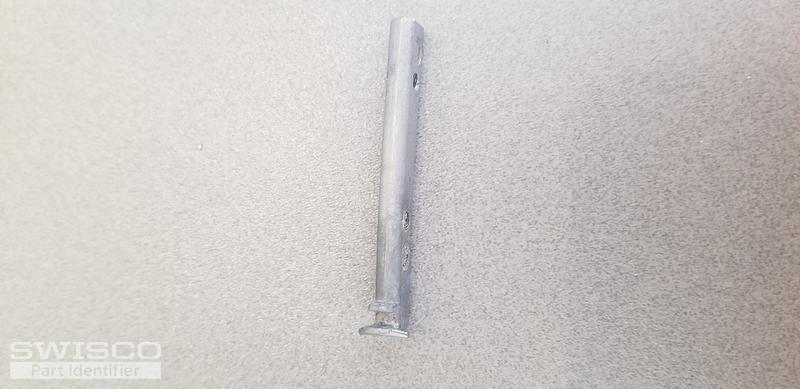

I do recognize your pivot bar. This is an old discontinued part. You won't find an exact match anywhere, but it can be replaced by our 26-424. It should also be noted that the 26-424 is designed to work with both pivot shoes mentioned.
Pivot Balance Shoe, 3/8"
Pivot Balance Shoe, 3/8"
15-218
$3.07
Pivot Balance Shoe, 9/16"
Pivot Balance Shoe, 9/16"
15-220
$3.15
