1"x3" Millco right and left track latch. Zinc diecast pivot bar

A quick learner from Aiken SC says:

January 18, 2023

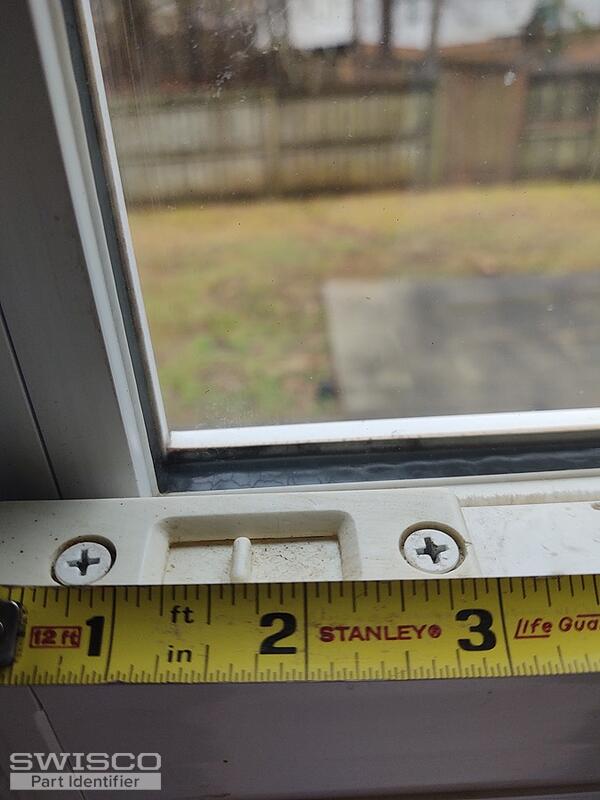

1"x3" Millco right and left track latch with mounting screw holes 2 inches apart.

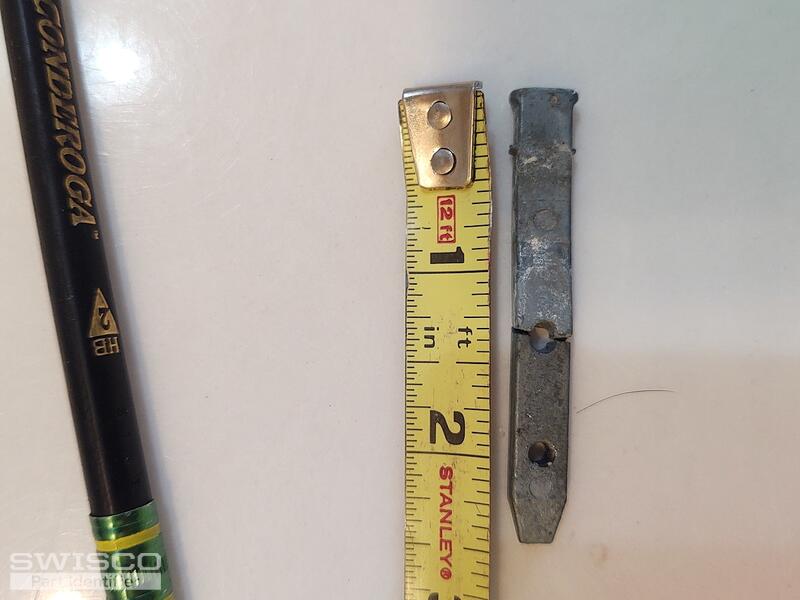

Zinc diecast pivot bar (I do not know if the part is handed). Approx 2.5" OAL x ~5/16 wide x ~3/16 thick. Holes are ~11/16" apart and one hole is ~1 5/16 to 1 3/8" from the flared end.

Thumbnail of the uploaded file named IMG_20230118_093917966.jpg

Thumbnail of the uploaded file named IMG_20230118_093416604.jpg

Paul from SWISCO responded:

January 19, 2023

Hello,

Take a look and compare the specifications of the 26-344 tilt latch pair and 26-360 pivot bar to your original hardware. Thanks for posting.

Alternate image for 26-360

Dimensions for 26-344

A quick learner from Aiken SC says:

January 19, 2023

Will do tomorrow. Thank you.

A quick learner from Aiken SC says:

January 21, 2023

These are dimensionally correct and will work as direct replacements. How do I order it's not intuitive.

Casey from SWISCO responded:

January 23, 2023

If you are having trouble placing an order on our website, you are welcome to give our customer service team a call at (888) 991-1929 for assistance.

Top Tilt Latch Pair, 2", 3/4"

26-344

$5.22

Tilt Sash Pivot Bar, 2-1/2"

26-360

$1.97
