2 guide bars and 3 awning operators

Question

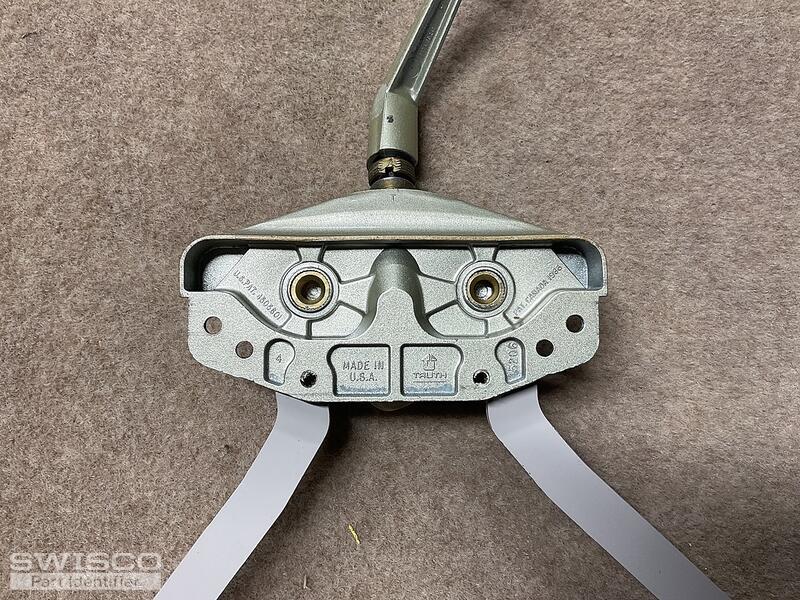

I need to price out replacements as pictured. The casement guide bars came off a left hinge (looking from the interior) I would need a top and bottom. On the awning operator, I need 3 of these priced out and the holes on the arms measure 24". I need the same color and please include the handle on pricing. Thanks. - Jeffs glass and window in Gladstone, Mi.

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. The 39-348 comes to mind for the awning operator. This assembly is used with the 36-078 shoe stud, which is sold separately. As for the hinge, start by taking a look at the 36-048. Note that we recommend replacing the top and bottom hinges at the same time. Review the specifications for these parts and see if they match up with your old hardware.

detail of 39-348

Detail of 36-048

Additional dimensions for 36-048
