2 parts

Landlord from Stratford
Oct 7, 2023 9:40 am

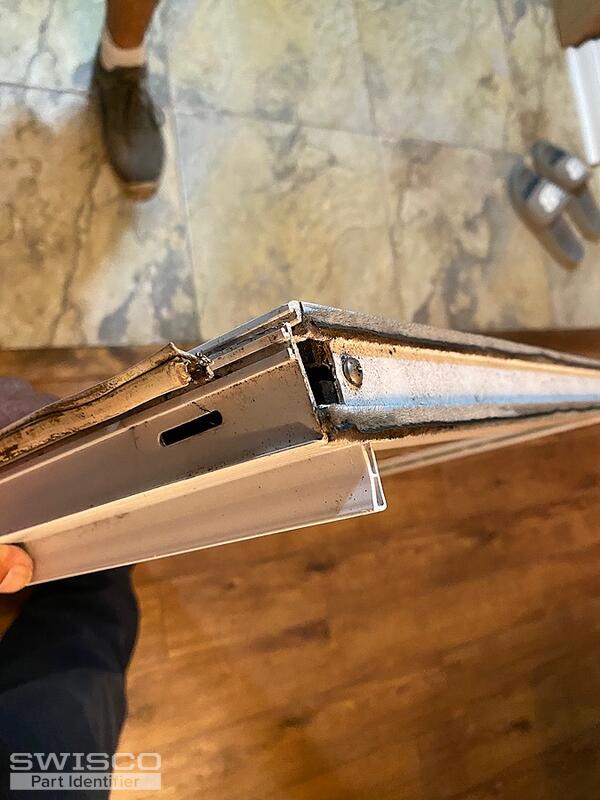

Silver piece-Insert into bottom rail

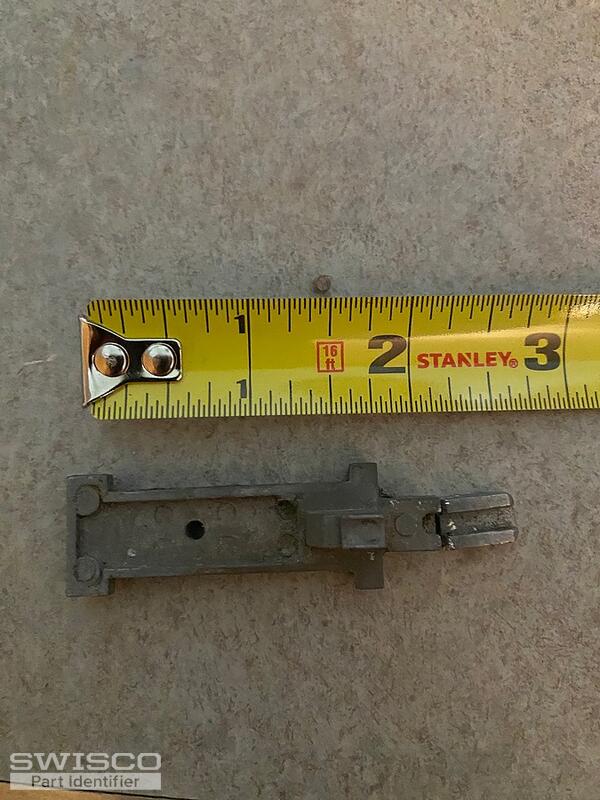

White lock in top rail
IMG_3290 IMG_3289 IMG_3288 IMG_3286 IMG_3287
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Oct 7, 2023 11:44 am
SWISCO
EXPERT

Thanks for posting. For the pivot bar, it looks like you're showing the metal portion of the 26-425. Please compare to ensure it matches what you have. For the internal tilt latches, I am afraid I can't narrow this down at all without either seeing the internal latch removed from the window, or seeing the surface lever that interacts with it--specifically, the prongs on the underside of the lever. In general internal tilt latches are tricky to replace, as many are no longer made. You may want to consider converting to surface mount tilt latches like our 26-228 & 26-229, or our 26-193 & 26-194. The video below shows how to do this.
