20 4 FJ CALDWELL Replacement Balances

Handy Person from Healdsburg, CA

Nov 20, 2023 1:52 pm

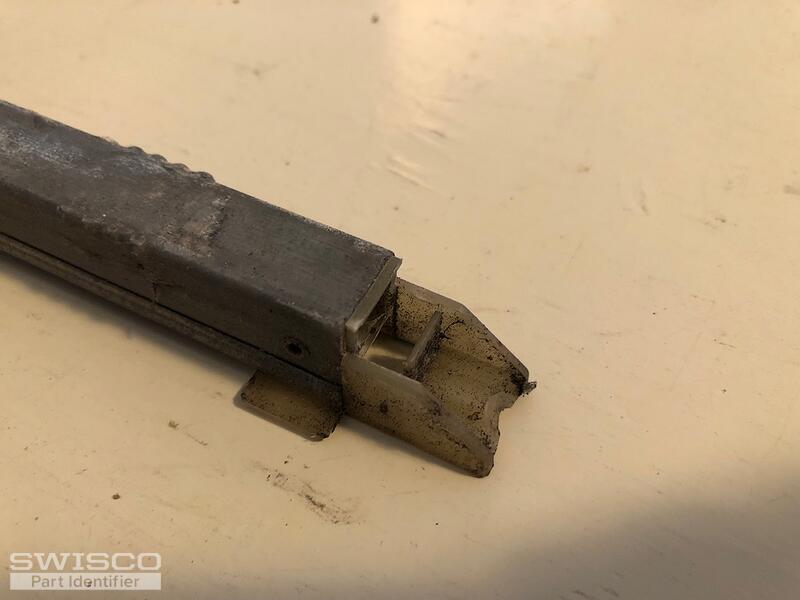

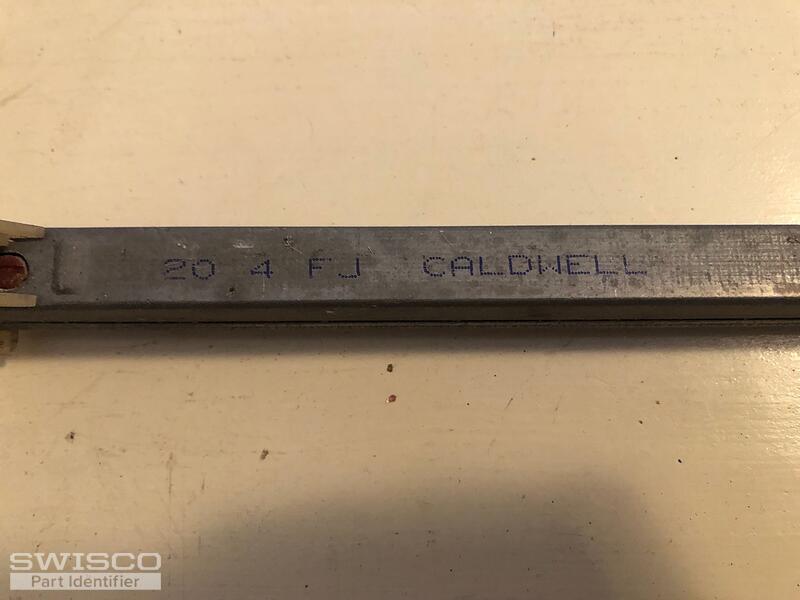

I need to replace these window balancers. They are stamped "20 4 FJ CALDWELL". The metal channel is 1/2" wide on the closed side, 5/8" wide on the open side, and 21" long. The show on the bottom is 1&3/32" deep.

5 user uploaded images

2 Replies

Lauren from SWISCO

Nov 22, 2023 8:38 am

Hello, thank you for posting,

With a 1-3/32" deep bottom shoe, please review the Series 385 channel balance. You will need the S385-21 with a 2040 stamp option. Please review and let us know if you have any additional questions!
