2001 Patio Door Wheel Sets, Track, and Seal Channel

Handy Person from Rochester, MI

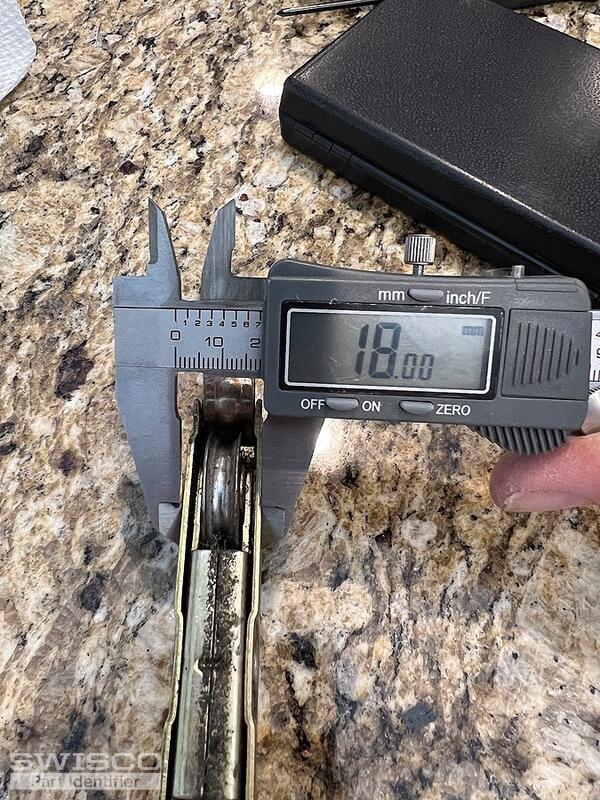

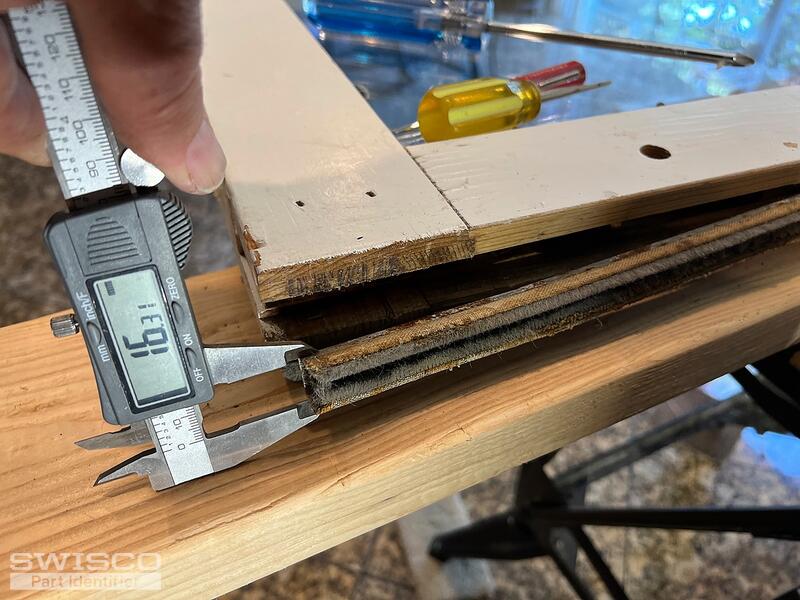

The door was installed in 2001. The rollers sets are identified With "Truth" and 31761A. and 1980 and 1982 US and Can Patent numbers. A great deal of force is required to move the door. The wheel sets have a horizontal Phillips or slot head, but turning the fastener seems to just rotate the wheel sets on a horizontal axis, rather than raise or lower the wheels into the door. Overall length of the portion that insets into the door is 118.2 mm. OA width is 18 mm and height is 31.6 mm. The wheel sets fit in a "seal channel"with "felt" that includes a 16.3 mm wide metal channel that is 14.3 mm deep. The channel is 47.5 inches long. The track the rollers ride on is 6 mm wide and 82 inches long. After cleaning everything, the front door rollers scored the roller track. I am interested in a compatible wheel set that would allow for vertical door adjustment. I will also need a replacement / overlay for the damaged track. And a replacement seal channel if available Thanks for your help, Chris.
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

This looks closest to our 81-018. The dimensions appear close to what you report. Just double-check in comparison to the schematic below to be absolutely sure. The width and height, as well as the wheel diameter, are the crucial measurements.

Alternate image for 81-018
Alternate image for 81-018

Handy Person from Rochester, MI
Thanks for your quick reply Bob! The part checks out. I will place my order.
Bob
Bob from SWISCO
SWISCO
Expert

Great, thank you! We really appreciate the business.

Please feel free to reach out if you had any other inquiries.
