2003 Tilt Window Latches

Handy Person from Georgia, USA

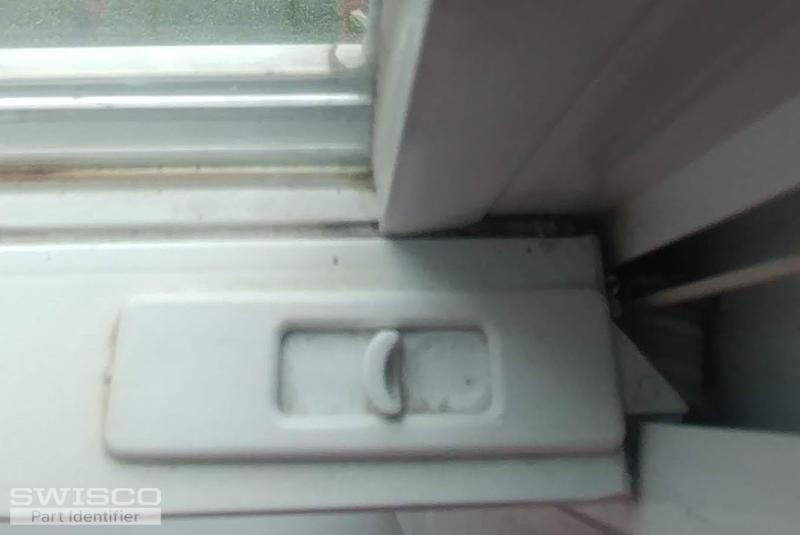

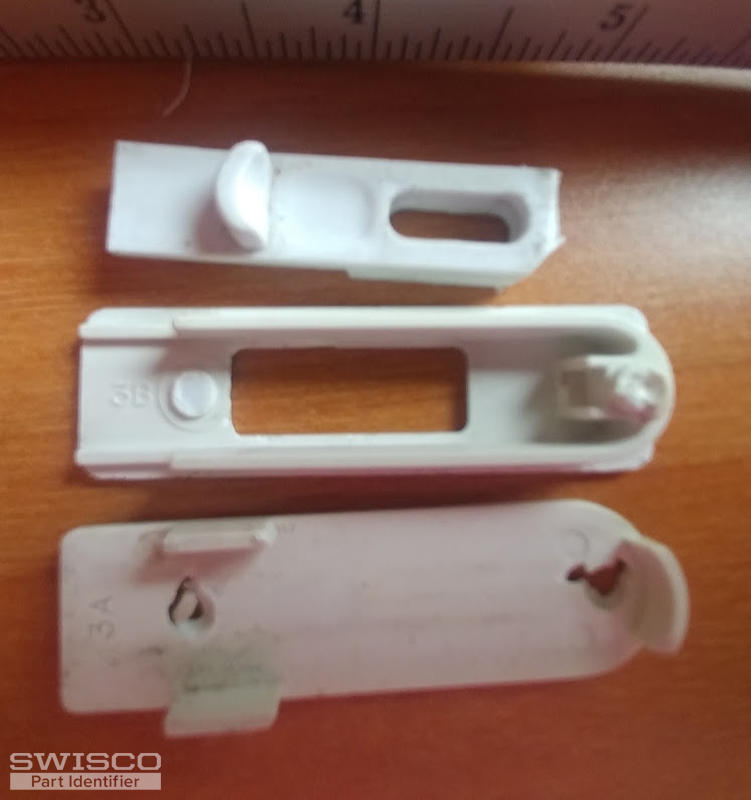

The top piece is labeled "3B", the bottom piece is labeled "3A", the sliding piece doesn't have any markings. The house was built in 2003. It is hard to tell the exact measurements, but it appears that the top piece is ~2-3/8" long. It is just under 3/4" Wide (top view), and the part that fits in the groove of the window (underside of the top piece) is 9/16" wide. The entire latch is ~3/8" thick.
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Thanks for your patience during this busy season. This tilt latch looks a lot like our 26-393B. Look it over and let me know if you agree.
