2004 Rivco dual crank out window lock arm guide clip

A professional from Brookline, NH says:
Hi.

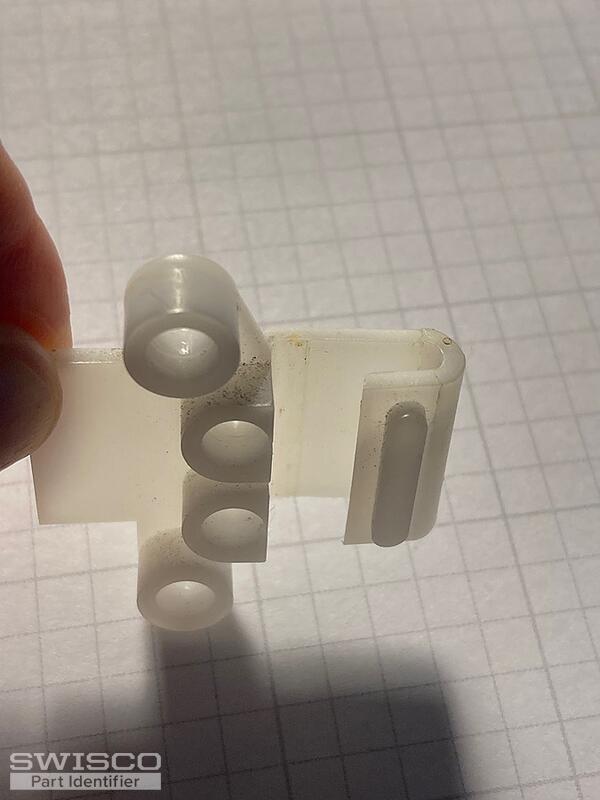

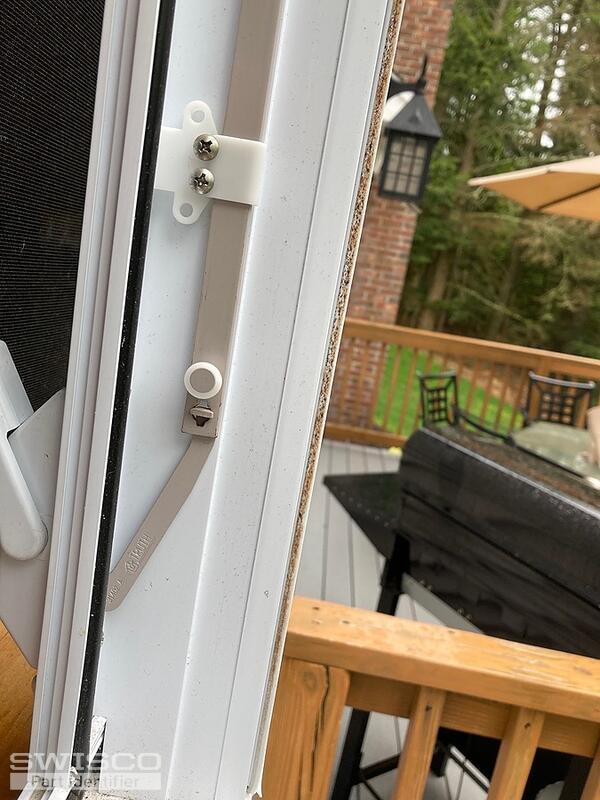

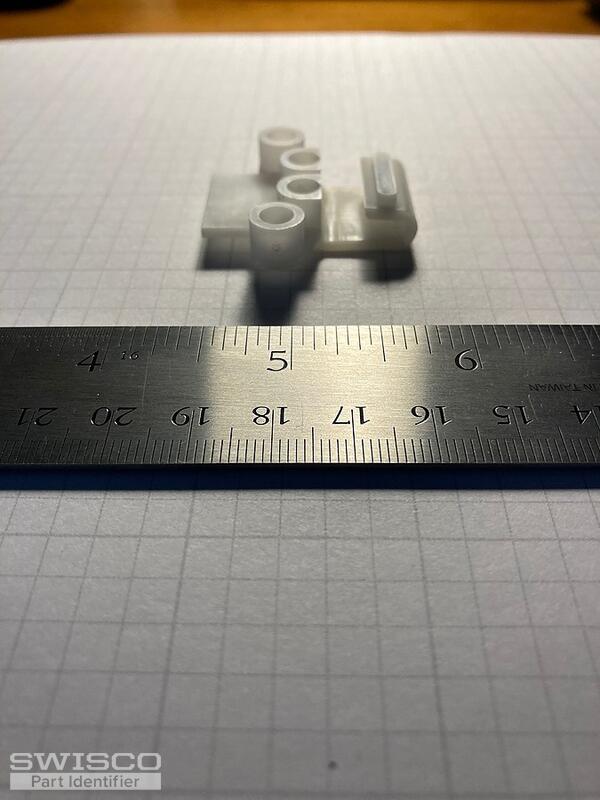

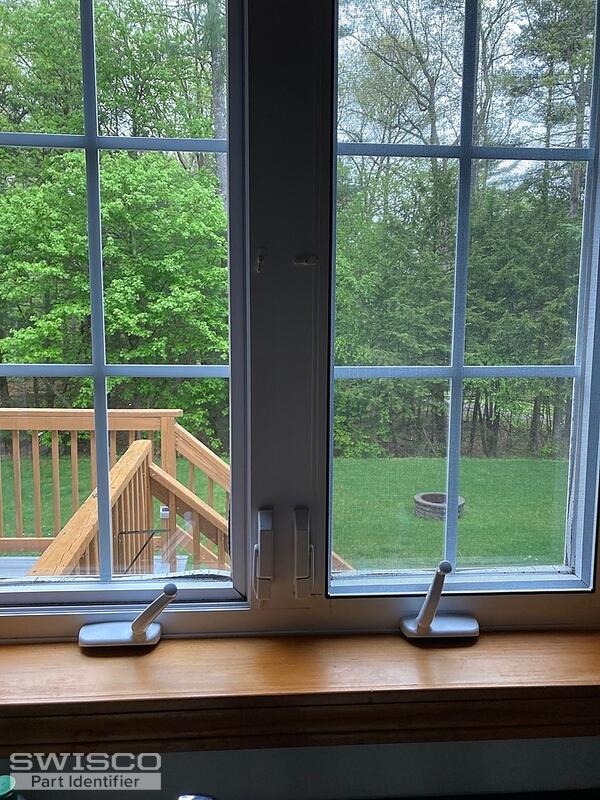

I have an 18 year old Rivco dual crank-out window. One of the arm guides broke. See attached. I am looking for a replacement.
Thanks
Jerry
Thumbnail of the uploaded file named Clip 7.jpg
Thumbnail of the uploaded file named Clip 5.jpg
Thumbnail of the uploaded file named Clip 4.jpg
Thumbnail of the uploaded file named Clip 1.jpg
Profile picture of Lauren
Lauren from SWISCO responded:

Hello, thank you for posting,

Please review the dimensions of the 39-448 tie bar guide to see how it compares to your original.

Alternate view of 39-448 with dimensions
Alternate view of 39-448 with dimensions

Side view with dimensions for 39-448
Side view with dimensions for 39-448

SWISCO 39-417 Tie Bar Guide
SWISCO 39-417 Tie Bar Guide
