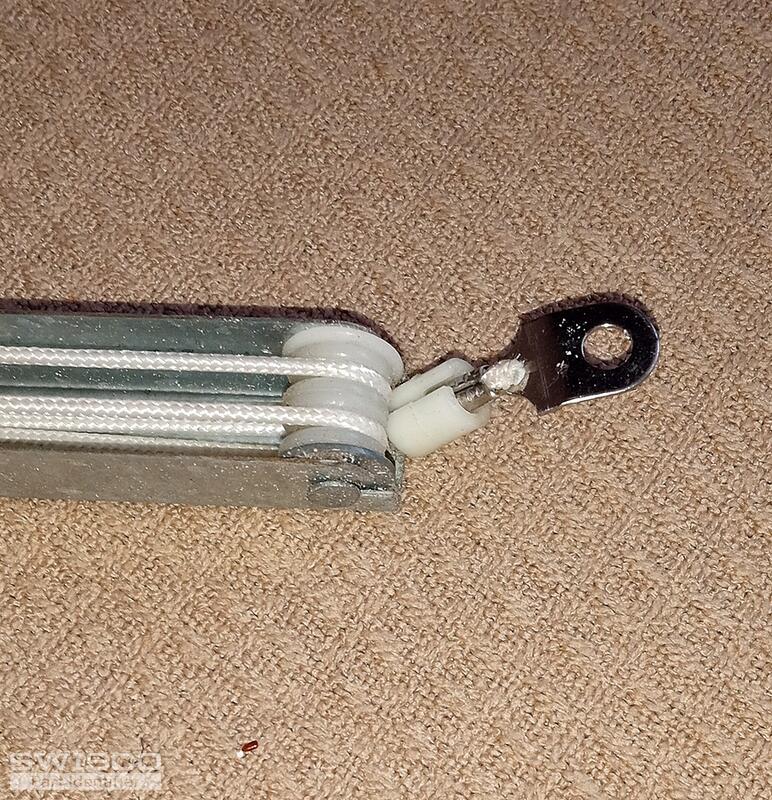

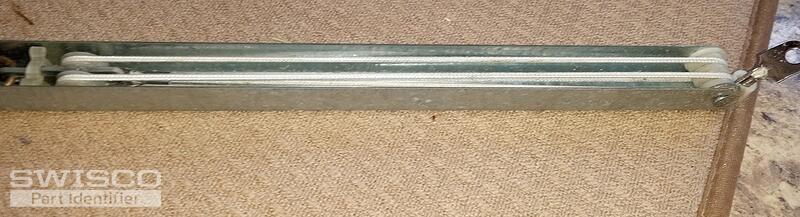

21 " tilt-in block and tackle, 21" long, 9/16 wide, 7/16 deep, cam lock still functional.

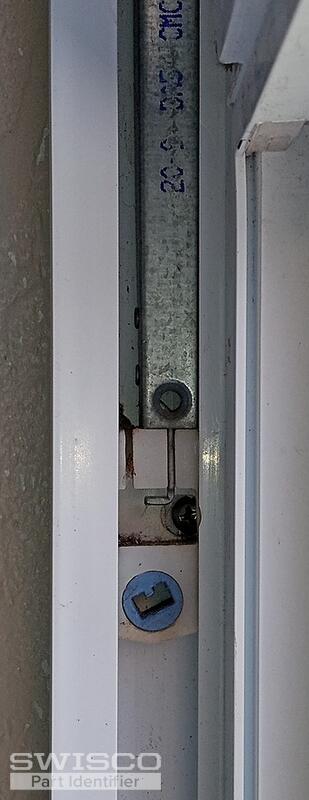

part printed with " 20-9 DA5 CMC "
see photos (2) thanks.
Hello,
We'd be happy to look into this for you but your balance is a bit too damaged to identify. To get started, we would need to see an intact pulley clip attached to an undamaged balance, as well as the pivot shoe that the clip attached to in the window. We'll also need to know the exact weight of your window sash that the balances support to confirm the strength option needed for your replacements.
It also looks like your balances may use an s-clip like the 19-029 or 19-030 for installation in case you need more of this as well. Thank you!
Thanks for getting back to us. Your balance resembles the S765-21 with 20-9 strength options to support between 24-28 lbs. Take a look and let us know if you need anything else.
