2140 model number channel balance

Handy Person from Cocoa Beach, FL

Nov 3, 2022 9:36 am

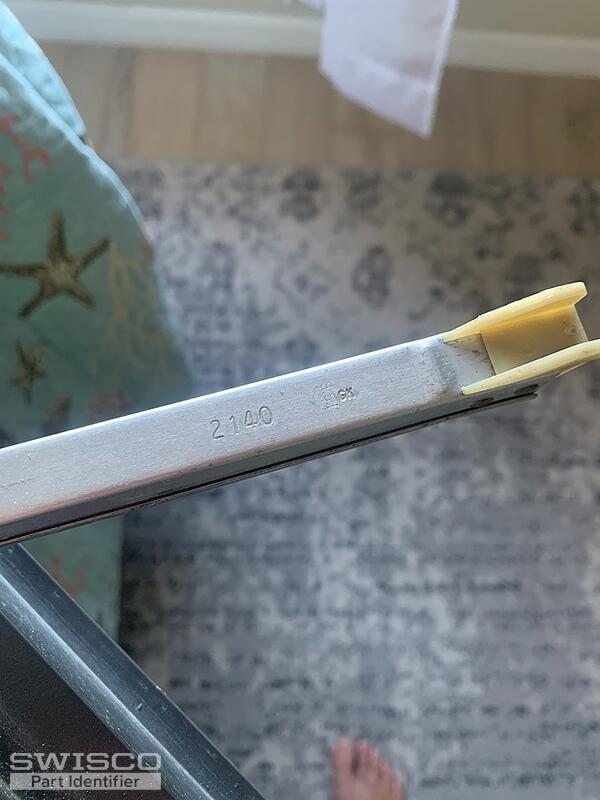

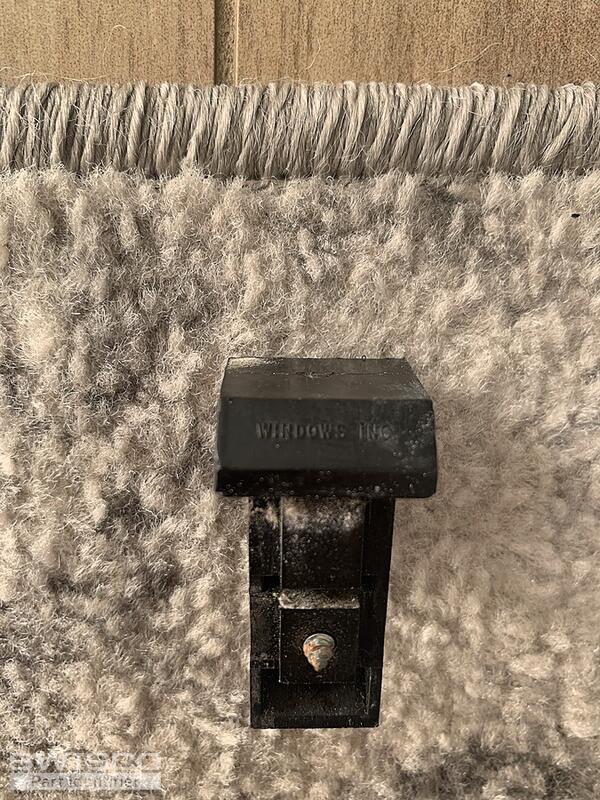

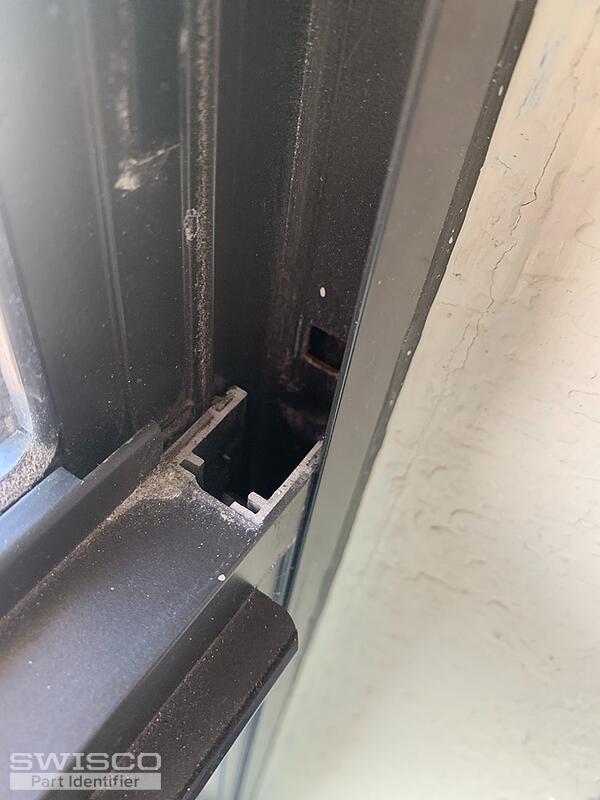

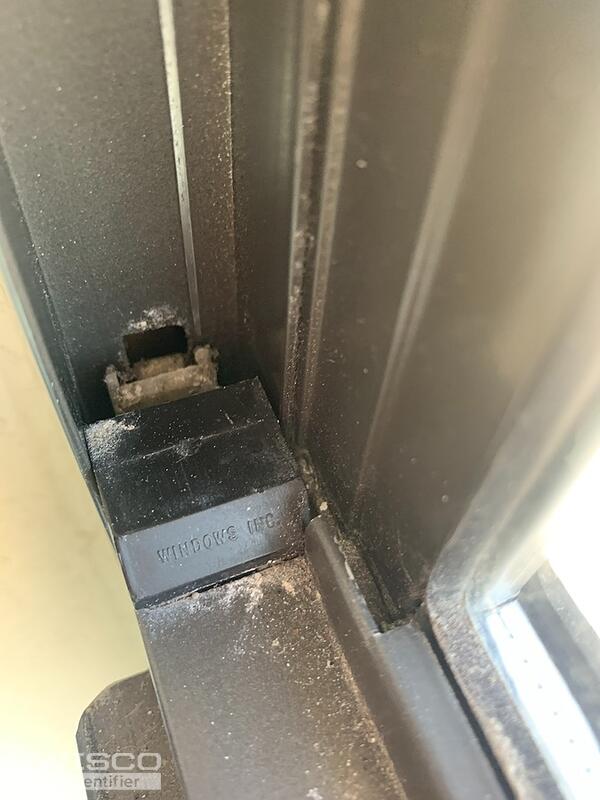

Hi, I'm looking for 6 each model 2140 channel balances for my OLD aluminum single hung windows. they are 1/2" wide, by 5/8" deep and about 23" long. They the window do not tilt. can you tell me your matching model number or what additional information you may need? Additionally, I need a sash cap to cover the channel balance. Photos enclosed. The good one appears to say "windows inc."

2 user uploaded images

5 Replies

Casey from SWISCO

Nov 7, 2022 2:06 pm

Hello,

We'd be happy to help but we would need to see photos of an undamaged balance assembly and top sash guide fully removed from the window to compare to our inventory. Please also include written-out dimensions of your top sash guide and we can go from there. Thank you!

Handy Person from Cocoa Beach, FL

Nov 11, 2022 4:51 pm

Hi, took me a few, we went through a hurricane.

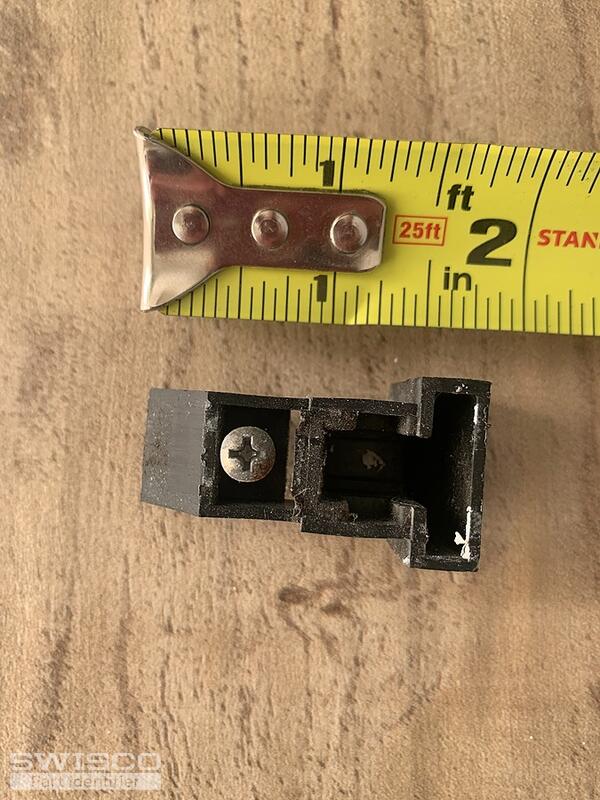

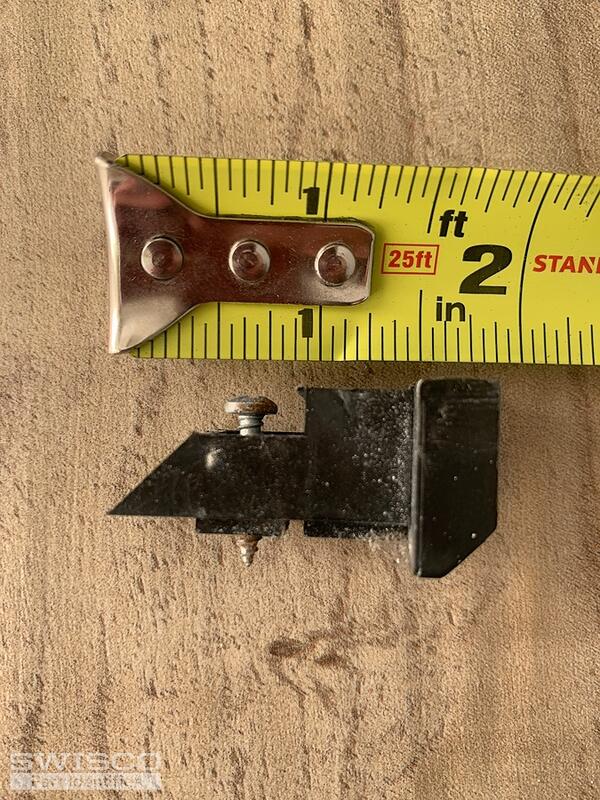

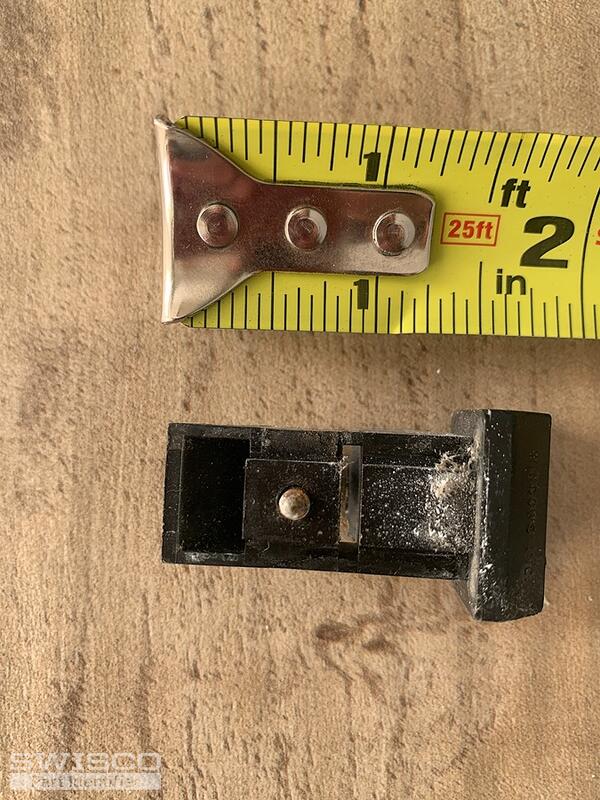

Here are pictures of an undamaged top sash guide.
I hope this helps and we can find parts :)

I will send another response with the undamaged balance assembly

4 user uploaded images

Handy Person from Cocoa Beach, FL

Nov 11, 2022 4:53 pm

2 of 2.

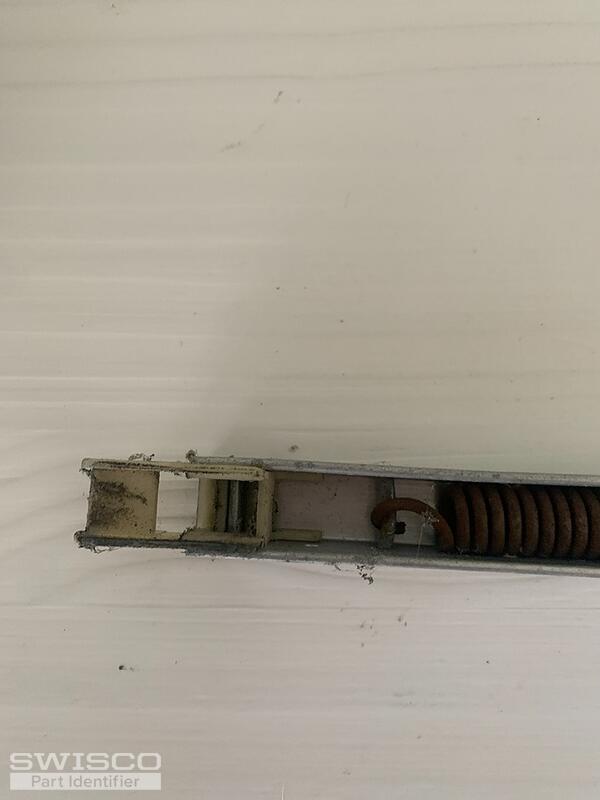

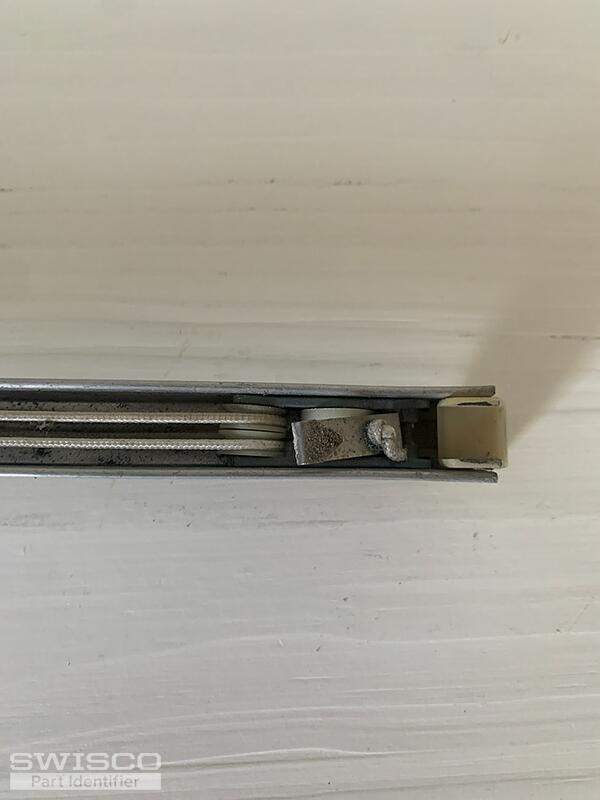

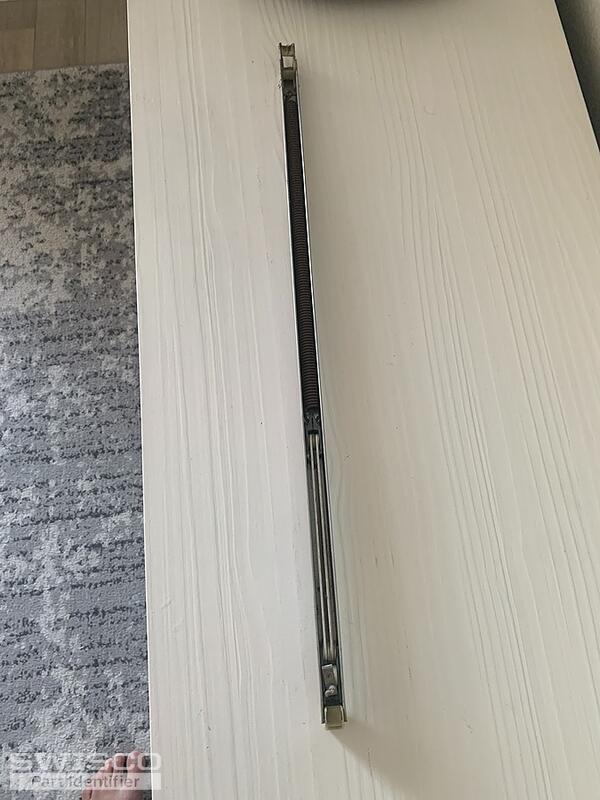

Here are pics of an undamaged balance assembly

4 user uploaded images

Casey from SWISCO

Nov 14, 2022 11:09 am

I'm sorry to hear that you were affected by the recent hurricane. I hope the damage wasn't too bad.

I would recommend starting by comparing the dimensions of our 18-110 top sash guide to yours. As for your channel balances, take a look at the S390-22 with a 2140 strength option and 1-1/8" deep bottom fitting.

Close up view of the S390 balance shoe.
