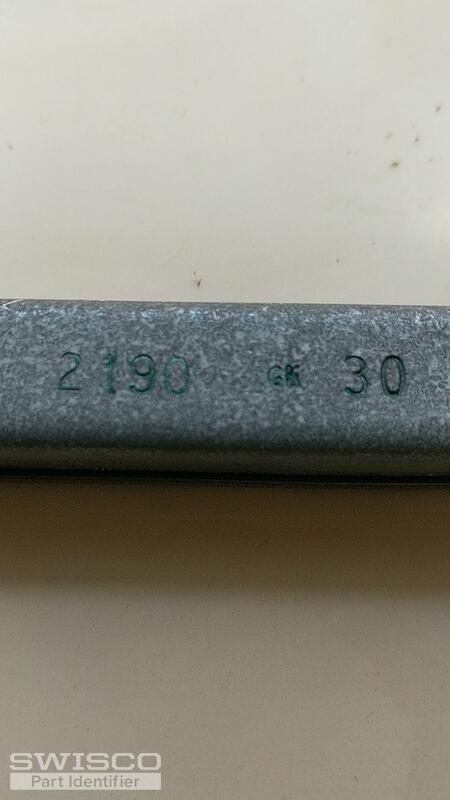

2190. GK. 30

A handy person from Austin TX says:

June 4, 2022

Hi. I'd like to replace both left and right side channel balances. Thank you for your help in identifying what I need.

Metal length is 22".

Width is 9/16"

Depth is 5/8"

Thank You

Rick

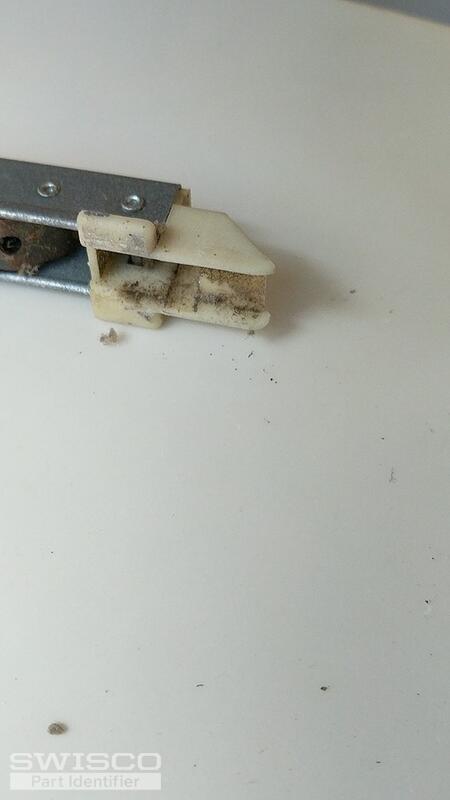

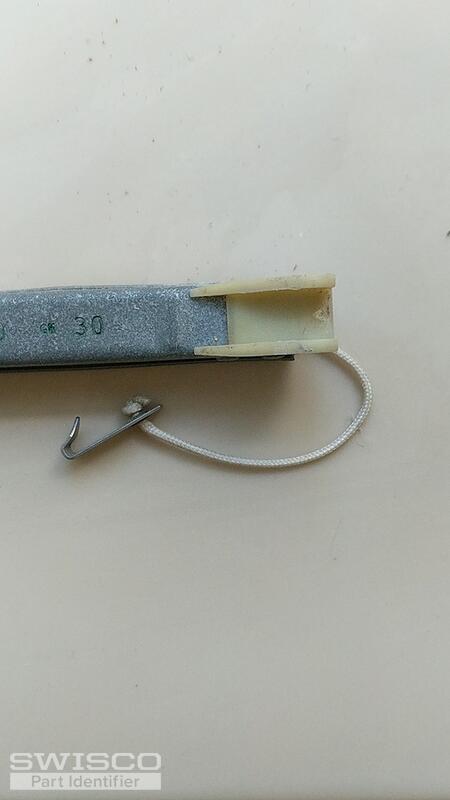

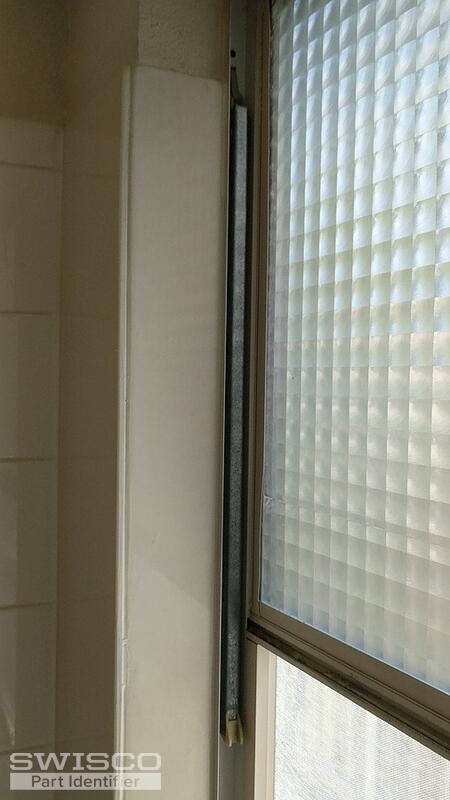

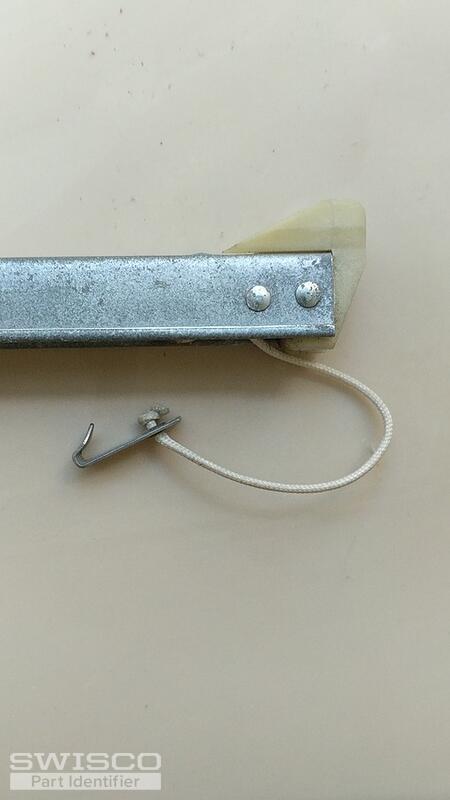

Thumbnail of the uploaded file named 16543728498062824288750902215099.jpg

Thumbnail of the uploaded file named 16543731431368816071989932158208.jpg

Thumbnail of the uploaded file named 16543731907995121926206035669684.jpg

Thumbnail of the uploaded file named 16543732118971895079123235861903.jpg

Thumbnail of the uploaded file named 1654373280068928934824186396220.jpg

Lauren from SWISCO responded:

June 7, 2022

Hi Rick, thank you for posting,

Your balance resembles the S395-22 channel balance. The stamp on the channel is older and does not translate to our strength options. You will need to remove the sash and obtain the weight. Compare the weight to the strength chart on the product page to choose the correct stamp option.

Please review and let me know if you have any questions.

22" Series 395 Channel Balance

S395-22

$9.59
