22-3 BSI VC

A home owner from Seattle, wa says:

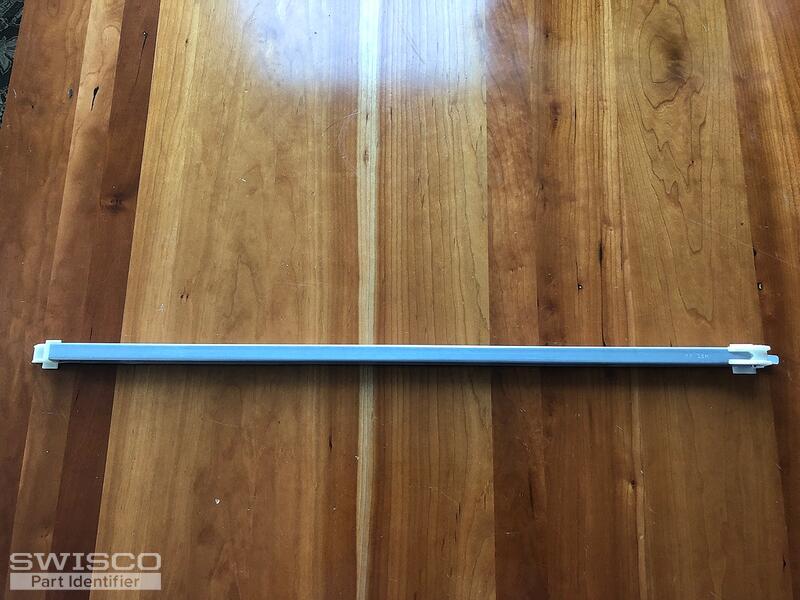

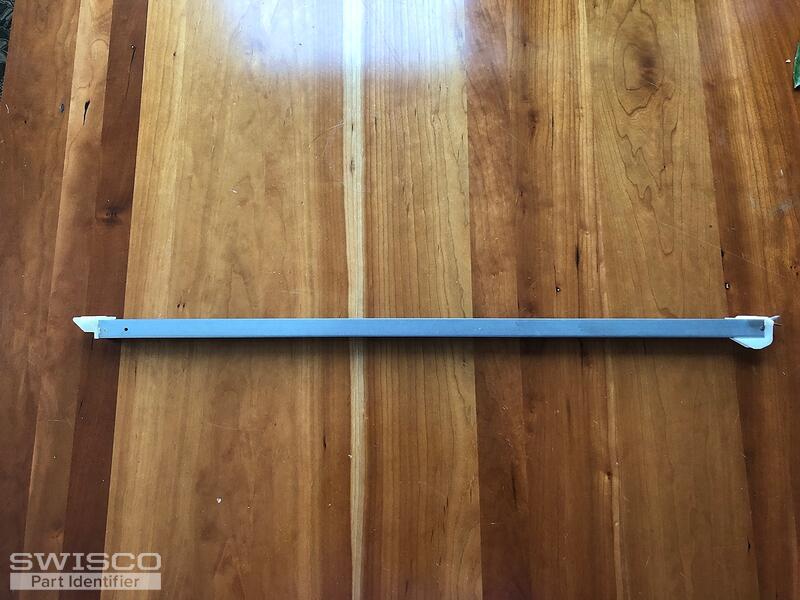

Recently purchased a home with somewhat new vinyl windows but none of the channel balances are installed. I have 8 and i need 16 total.
If i can get a match to these ill need 8 channel balances and clips.
Thumbnail of the uploaded file named 52365244-8728-454A-8385-B38A2053D1C3.jpeg
Thumbnail of the uploaded file named 8C3EB005-8D39-46E5-B805-CCF2912B46EB.jpeg
Thumbnail of the uploaded file named D3ABA2D4-593A-4CEA-856B-A7AF00F69161.jpeg
Thumbnail of the uploaded file named CEA2D8D0-B3CE-4201-AAA0-2D8720CDDBFE.jpeg
Thumbnail of the uploaded file named 6E688FCF-4468-498F-8C97-9EE6BCEFA650.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

It looks like you have an extended-travel channel balance, which is a special type of window balance that is only available by custom order. With that said, I'll email you a purchase link and price quote for (8) balances that you can use to place an order on our website.

It's hard to say what top sash guide you have when it's still installed. Can you remove it from the window and show us pictures of it from the front and side? That will help me narrow down your options.

Note, our replacement rivetless balances are designed to replace balances with metal channel lengths ending in 7/8" increments.  If yours differs from this measurement, our replacements will not work.

A home owner from Seattle, wa says:

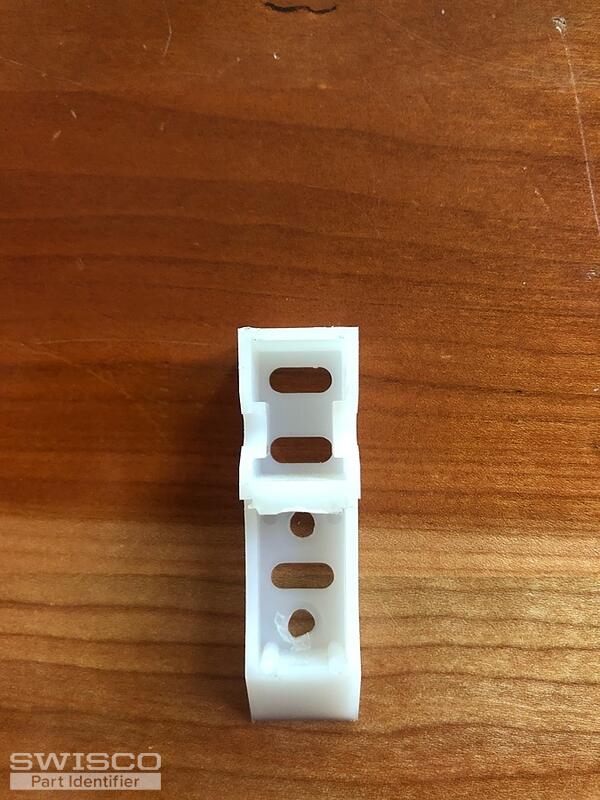

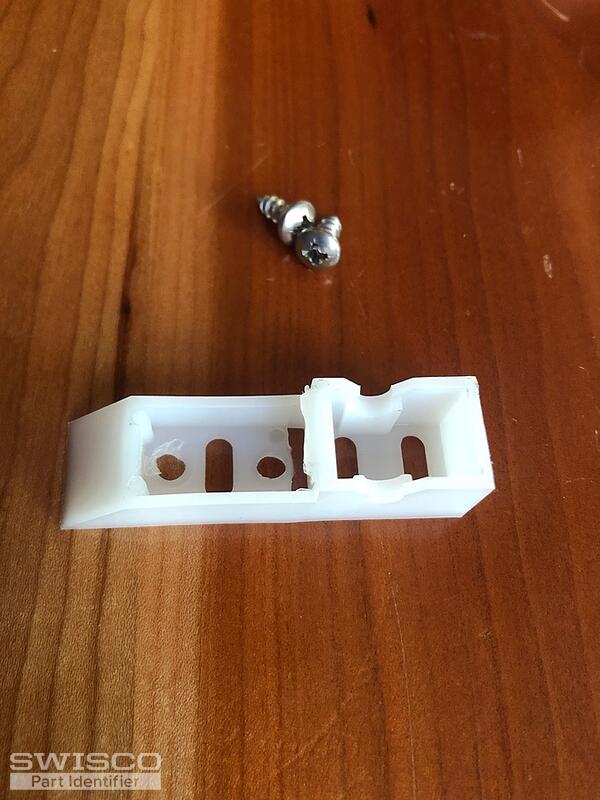

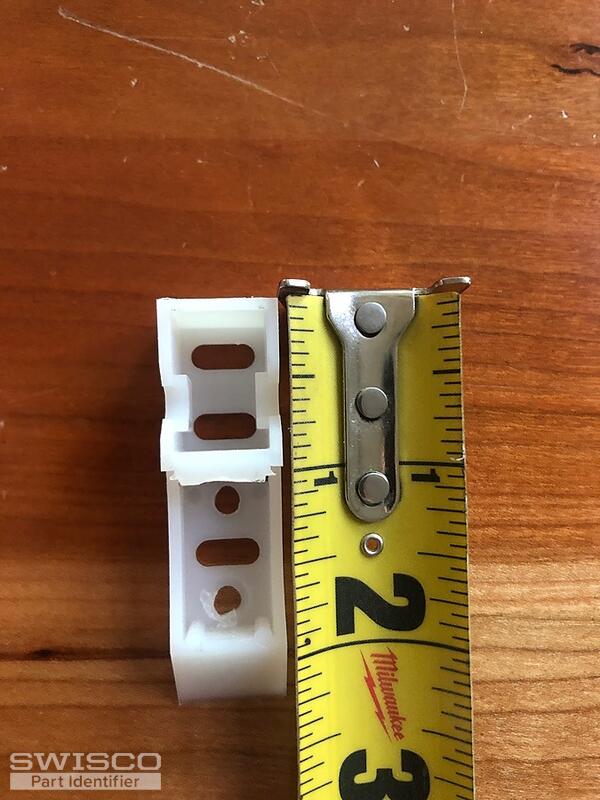

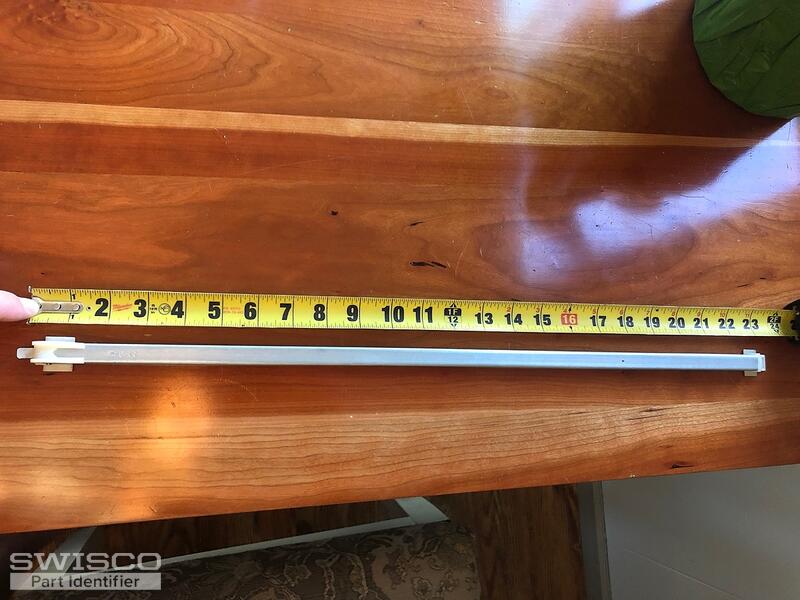

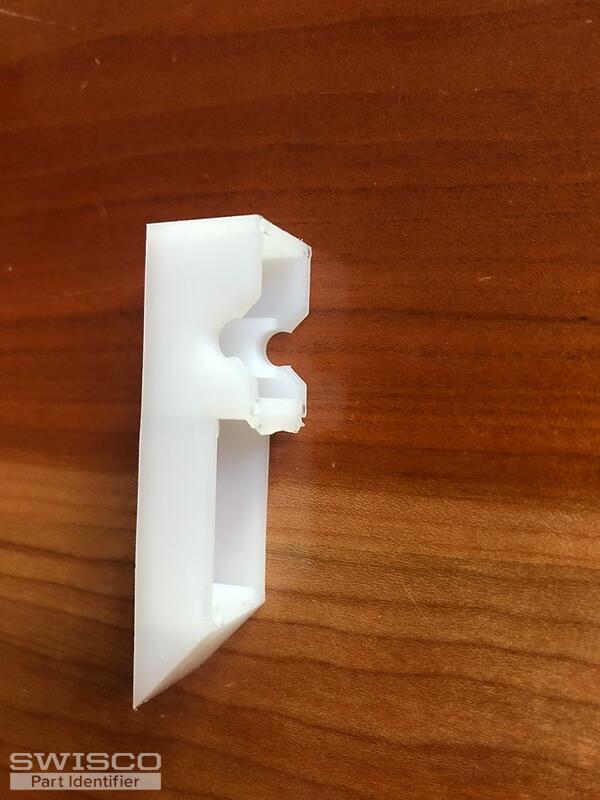

Hello, sorry it took a while but i think we are on the right track! The channel balances look like a match and i have included photos of the top channel guide. I also included a photo of the channel balance measuring 22 7/8" which i think jives with what you were describing. If i can get a match for the top guide i think i can complete my order.

Thank you so much for your assistance!
Thumbnail of the uploaded file named AC632E49-8D54-4DA8-BF84-6177915F3A72.jpeg
Thumbnail of the uploaded file named 2D125378-16A7-4AB4-A174-A5F96CCD819B.jpeg
Thumbnail of the uploaded file named B79177C4-85C7-4C66-AE40-68229FE6ACAB.jpeg
Thumbnail of the uploaded file named 33F2C08B-4E61-43E1-94BF-D10180BD99C8.jpeg
Thumbnail of the uploaded file named BB6D5C8A-FB12-4266-A57D-5A0E7E84E46B.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Perfect, thank you! We don't carry this exact top sash guide but I believe you can use our 18-008H which is similar in design and function. You'll just need to add this to your cart separately. Look it over and let me know if you had any questions!

How to Replace a Top Sash Guide [1080p]
How to Replace a Top Sash Guide [1080p]
VIDEO
WATCH >
