22" channel balance(s)

Home Owner from Juno Beach Florida
Feb 26, 2022 2:07 pm

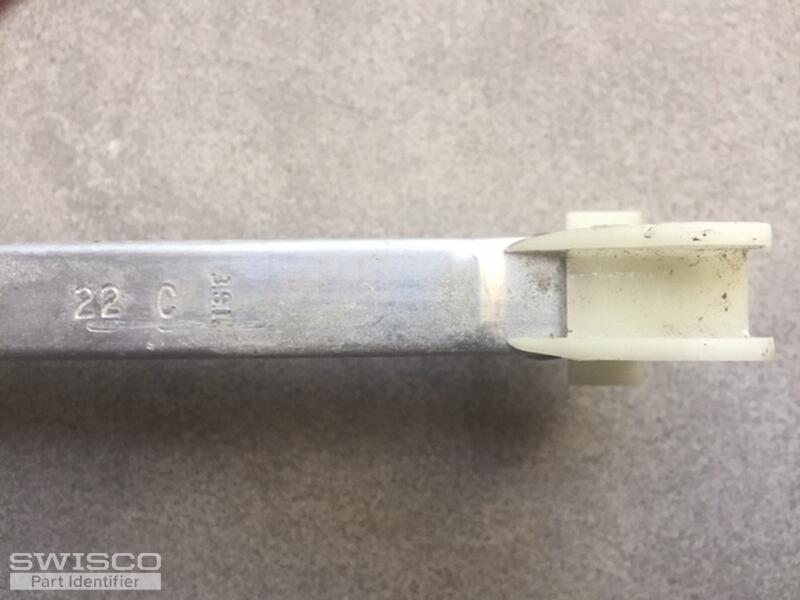

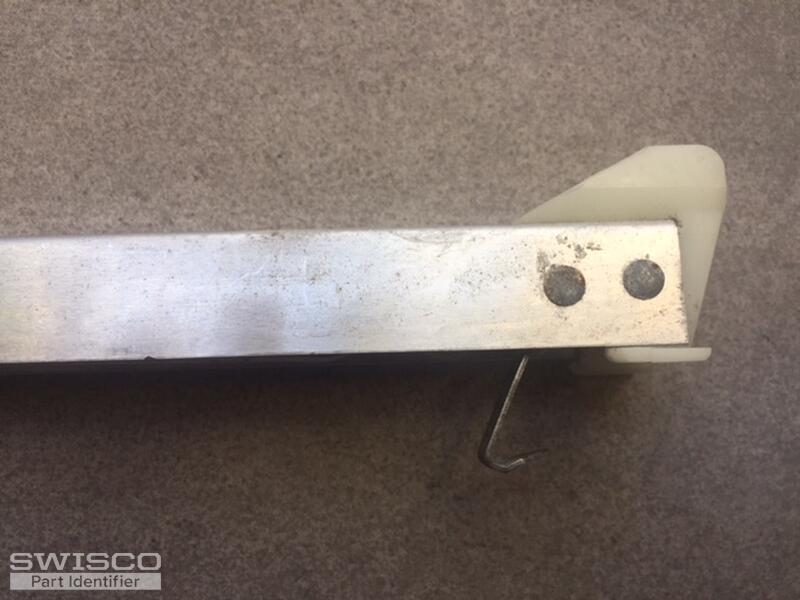

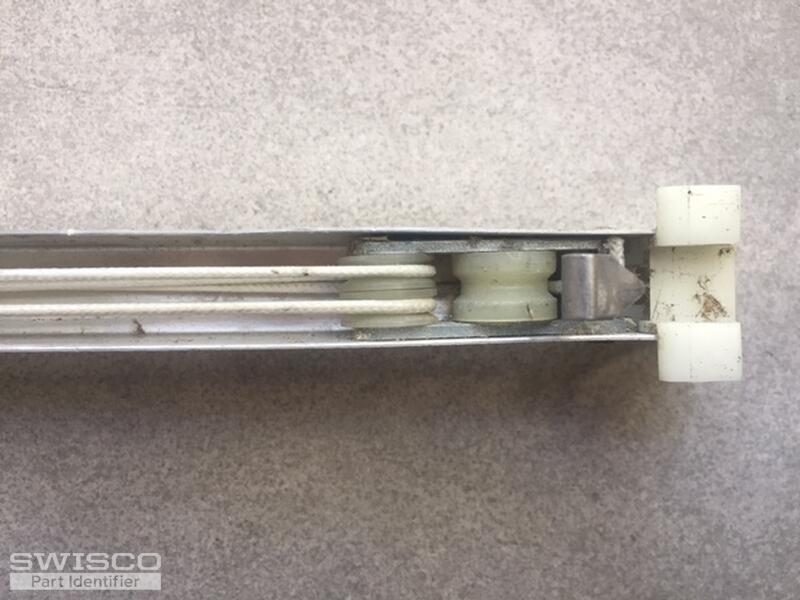

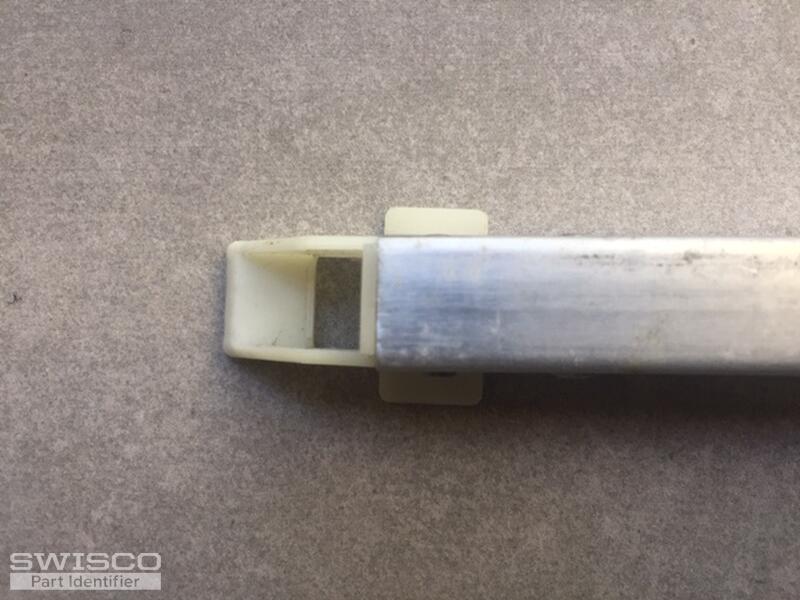

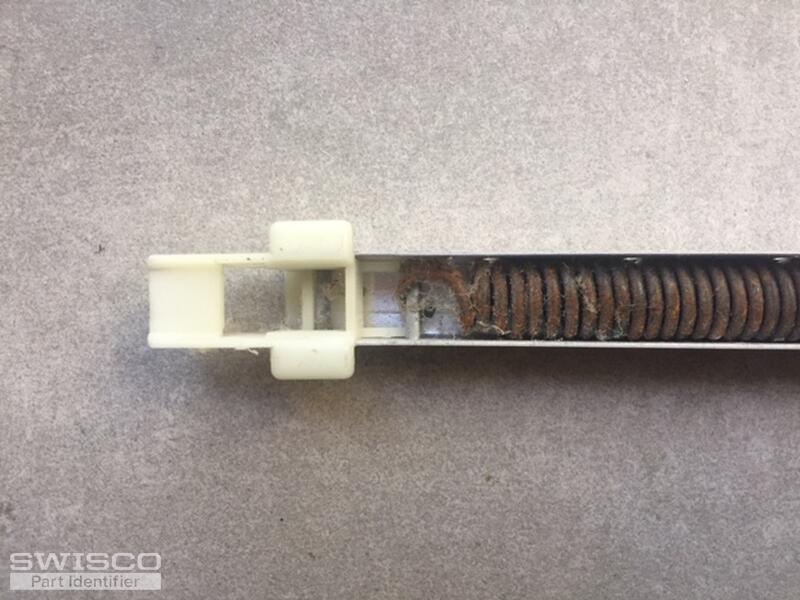

Hello - I'm looking for replacement channel balances. The broken ones are stamped with markings 22 C - it's a 23" (l) x 9/16 (w) (without the nylon fittings) and were installed in a window brand called Mildoor, Miami, FL around 1984 - 85; photos are attached. Thx - David
IMG_3506 IMG_3504 IMG_3503 IMG_3502 IMG_3501
5 user uploaded images
3 Replies
Bob from SWISCO
Feb 28, 2022 11:43 am

If the metal channel, not including the nylon fittings, is 23" long, then see either our S380-23 or S385-23. The only difference between these two balances is the depth of the bottom nylon shoe, or its 'heel-to-toe' measurement, so compare both with your own hardware to see what matches best. For a new stamp option choose 2230.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
Home Owner from Juno Beach Florida
Feb 28, 2022 2:37 pm
Great, thx for the information.

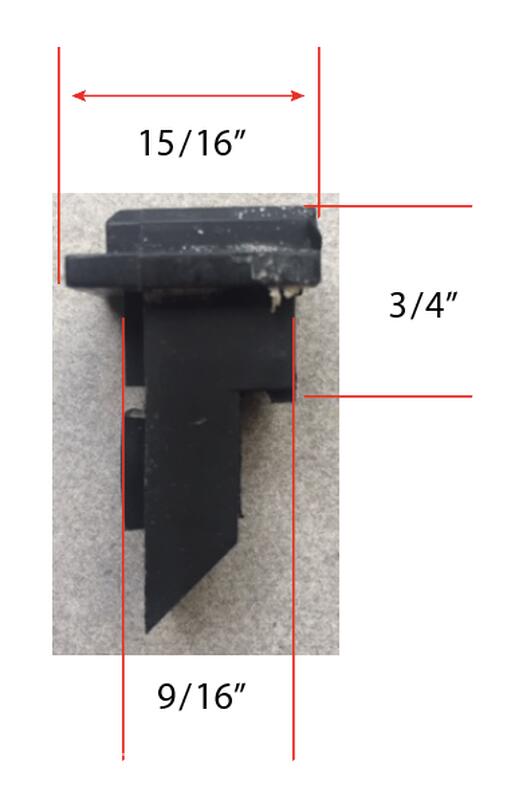

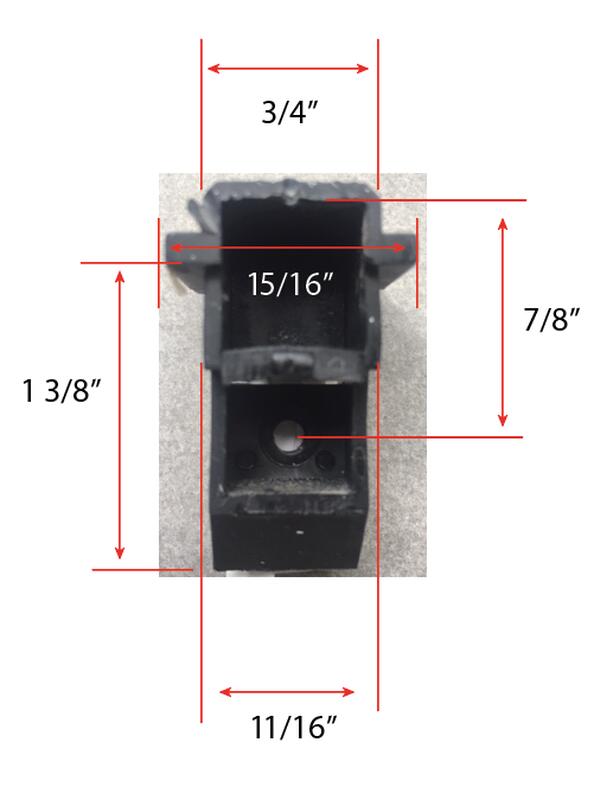

I also require a few top sash guides and need your expertise to match or recommend a similar replacement in black.

These are the original hardware for the Mildoor windows reference in my previous inquiry.

They look similar to your product 18-032.

Please review and advise; thank you in advance.

- David
Screen Shot 2022-02-28 at 2.18.51 PM Screen Shot 2022-02-28 at 2.25.13 PM
2 user uploaded images
Bob from SWISCO
Mar 2, 2022 1:39 pm

I agree that the 18-032 top sash guide would be our closest match to the dimensions you've provided.
