2230 Channel Balance

Question

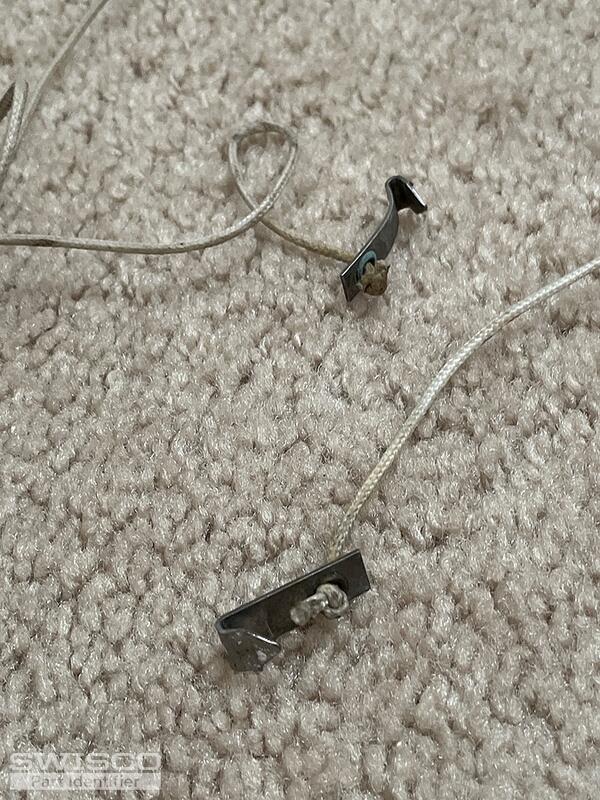

Ugh! Plastic parts at one end is missing/damaged, 23-inch metal, 2230 labeling, snapshot of installed channel balance is from a similarly sized window in my house (plastic part show is 7/8-inch wide). Which replacement do you recommend? Thank you.

I have other windows to repair, too. 1985 construction

I found another 2230 window channel balance in the house. The bottom fitting is as shown. Note: All the bottom fittings (with one exception) are 7/8 inch -- not one inch. Is that size available? Also, all metal channels are 1/2 inch wide.

Jasmine · Accepted Answer

Thanks for your post! This channel balance appears to be assembles with a 19-005 winged top guide and the 15-029 shoe with a 7/8" shoe depth. These replacements will need to be custom assemblies. The good news is that this is something we can put together in our warehouse.

I've forwarded a link with a quote for (2) of these balances for your review, since there is a quantity minimum. If you would like a larger quantity, please let me know and I'll be happy to update the quote.

Please don't hesitate to reach out with any questions you might have.
