23 4 JS CALDWELL Window balances

A quick learner from New Mexico, USA says:
August 15, 2022

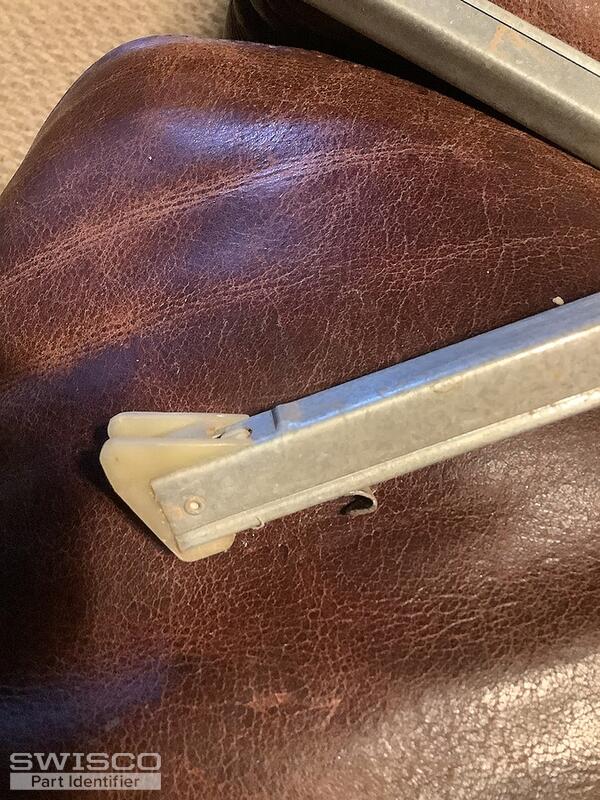

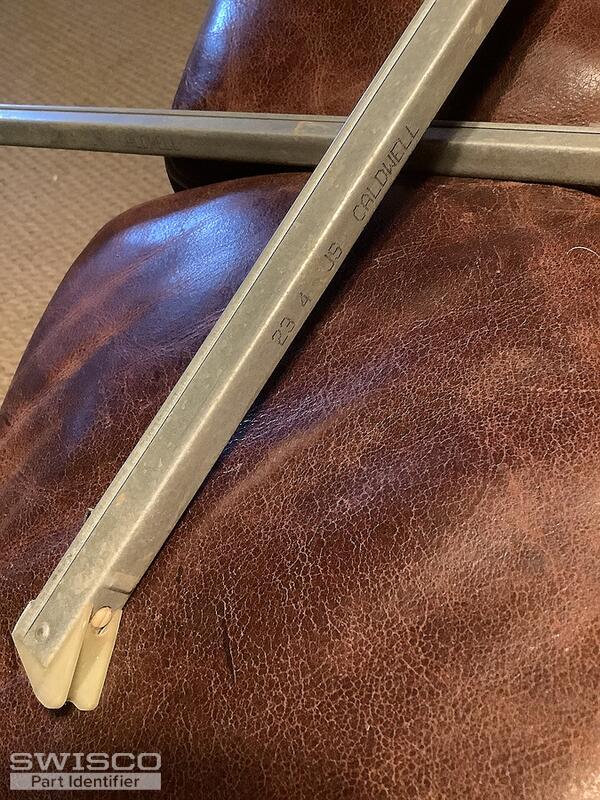

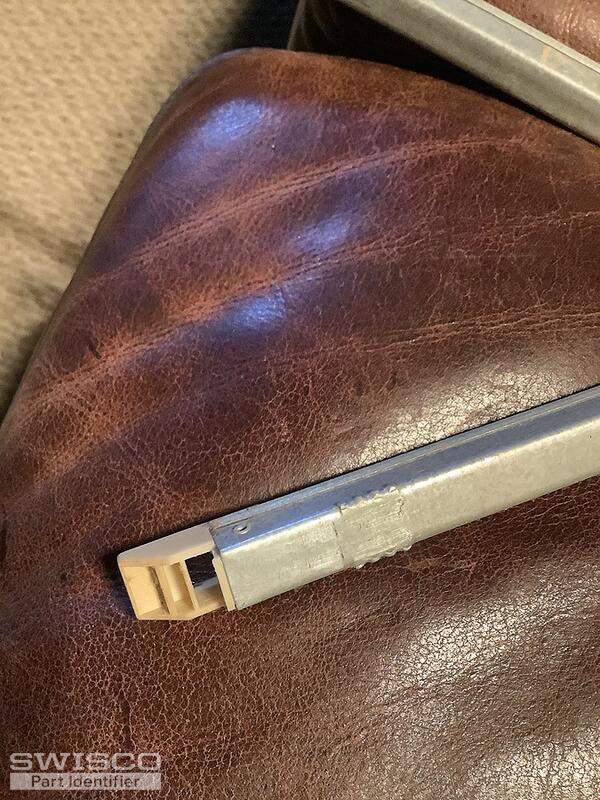

Length of the metal is 24" writing says 23 4 JS CALDWELL
Thumbnail of the uploaded file named ACB2B57B-00C8-4A5D-87F2-52BF53B693E0.jpeg
Thumbnail of the uploaded file named 2A7B198C-D27F-4FA5-A126-7C74A5E26904.jpeg
Thumbnail of the uploaded file named 28B80CD7-1D3E-4E59-B503-E65B547EF866.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 17, 2022

Hello there!

Depending on the depth of your balance's bottom shoe, see our S351-24 or S390-24 . You'll notice the Series 351 comes attached with a 1" deep shoe, while the Series 390 comes attached with a 1-1/8" deep shoe. Take a look at the diagram below to determine the best match. You'll also need the 2340 strength option for your replacements.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
24" Series 351 Channel Balance
24" Series 351 Channel Balance
S351-24
$10.77
24" Series 390 Channel Balance
24" Series 390 Channel Balance
S390-24
$10.55
