23-5 HA5 CMC 2

Quick Learner from
Jun 10, 2023 5:38 pm
For a window that foes not tilt, measures 23 7/8 not including the nylons

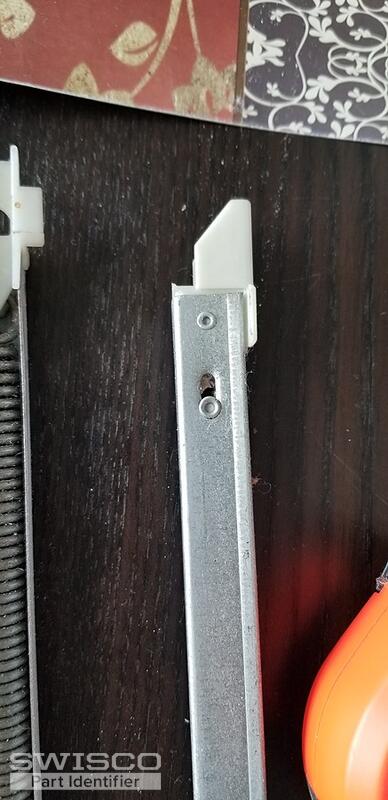

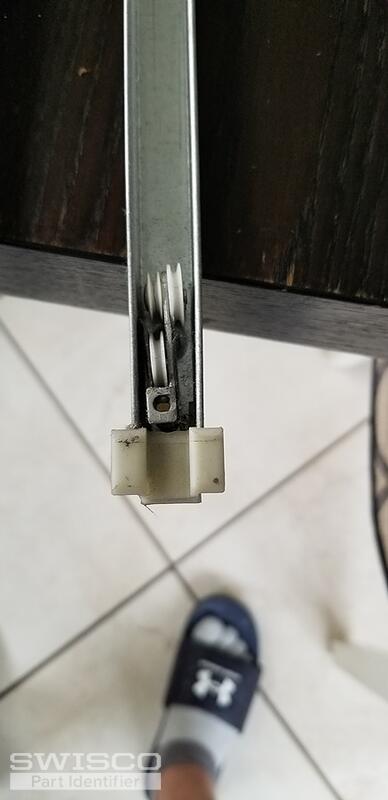

20230610_143215 20230610_143228 20230610_143208 20230610_143231 20230610_143159
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Jun 11, 2023 1:04 pm
SWISCO
EXPERT

Thanks for posting. I believe the metal channel, not including the fittings on either end, should actually be 24" in length. Please double-check. If so, you have either an S380-24 or S385-24 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the heel-to-toe' measurement. See the diagram below for reference. The Series 380 has a shoe that is 1" deep; the Series 385 has a 1-3/32" deep shoe. Compare both with your old hardware to see what matches best. In either case, for a stamp option choose 2350.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
