2320 Stamped Window Channel Balance

Quick Learner from Tampa

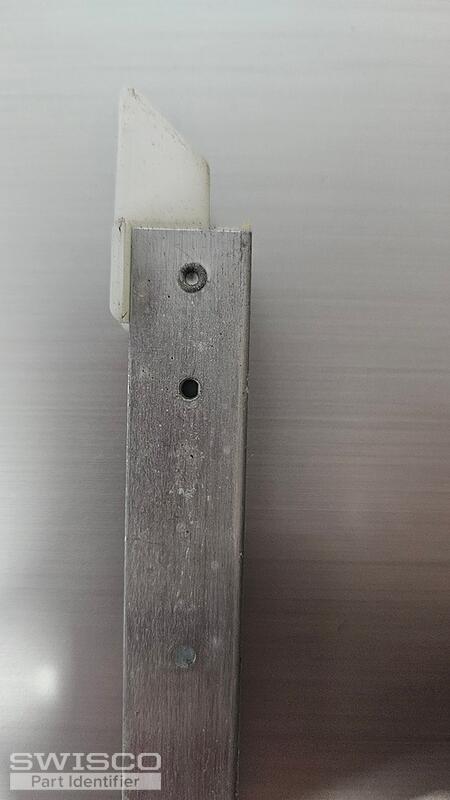

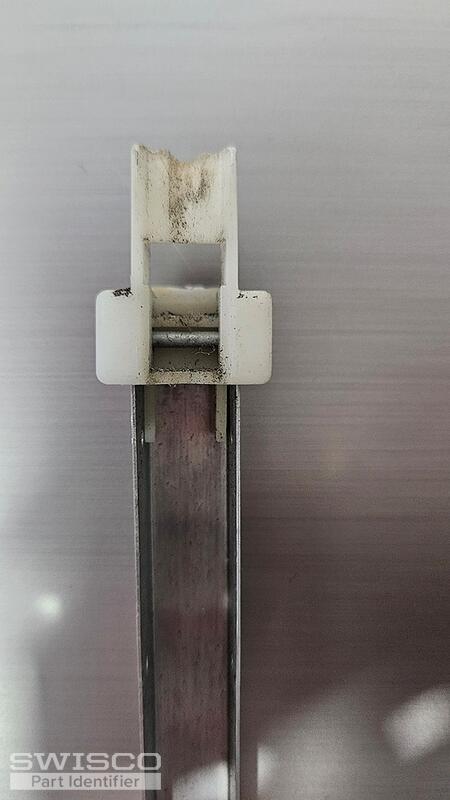

I have a balance with a 2320 stamp engraved in it. I measured just the metal portion and it's exactly 24". When I measure the end with the hook, it's only 14/16" (see pics). I couldn't find a balance on your website that was less than 1 inch wide. I looked at your website options and the one that looks to have the same tips on the ends and is 24" long is Product Code: S380-24. However, in one of the pictures, it shows the tip should be 1 inch (off by 2/16"). Is this close enough?
Website only let me upload 5 photos but I have more if it helps.
5 user uploaded images
3 Replies
Quick Learner from Tampa
Also, it's a non-tilt window and it's measuring 5/8" depth.
Bob
Bob from SWISCO
SWISCO
Expert

Hey there, and good work deducing all this. If the shoe depth is 7/8", rather than 1", then you might need the S378-24 instead. This is very similar to the Series 380; it just has that less deep shoe. See the image below for reference. Double-check your measurements to see what matches best. In either case, for the stamp option go with 2320.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
