23.5 L x 79 H Double steel bi-fold closet door

A home owner from PA says:
I need to replace the hardware for my Benchmark bi-fold closet door. I can't seem to find a part number on the closet door. Can someone please help me find the hardware kit? Left side door dimensions 23.5 L x 79 H.
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg
Thumbnail of the uploaded file named 4.jpg
Thumbnail of the uploaded file named 5.jpg
Profile picture of Paul
Paul from SWISCO responded:

We don't sell complete kits for these doors, but we do sell individual parts. You only need to replace what's broken.

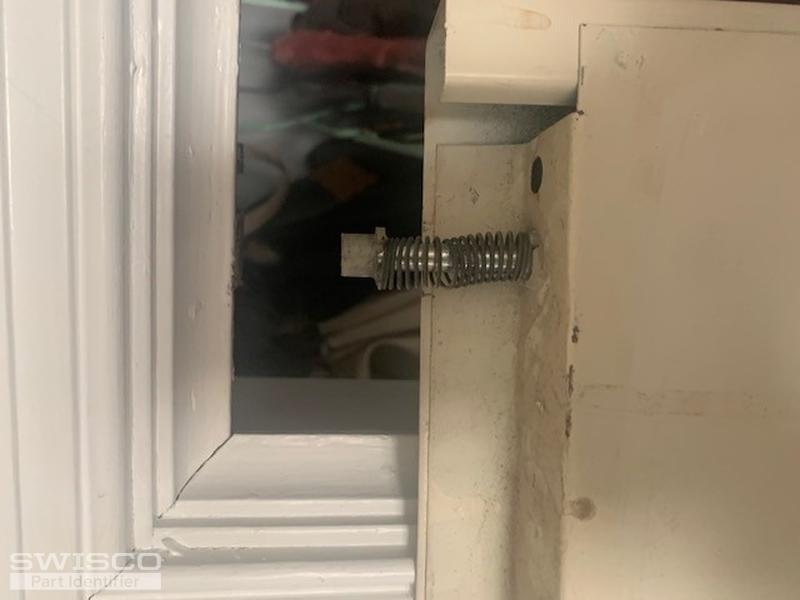

For example, the 21-209 pivot bracket for your Benchmark door looks fine. The Benchmark door requires one bottom adjusting pin, which is the 21-002, and three spring loaded guide pins, which would be the 21-044

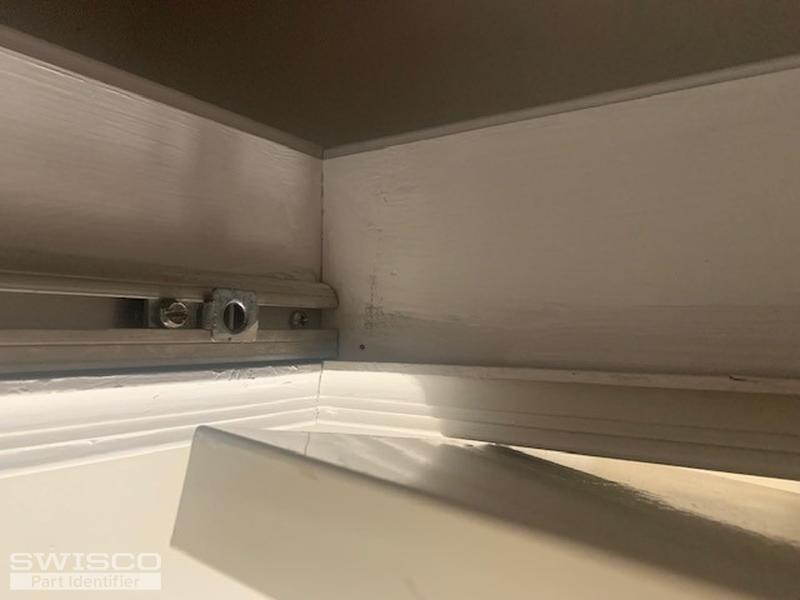

I can't see if you still have the 21-276 rubber bumpers in you track between the two doors. They help the doors to close together. That may be something to consider.
