23DS37 replacement balances

A quick learner from Florida says:

March 4, 2020

Hi I need replacement channels. These are 24' long (Metal) and is of a Traco window with code 40-0322 on the Tarco Sticker on the window frame.
Also need to replace the small fittings on the window corners.

Thumbnail of the uploaded file named IMG_20200304_131916.jpg

Thumbnail of the uploaded file named IMG_20200304_132621.jpg

Thumbnail of the uploaded file named IMG_20200304_132637.jpg

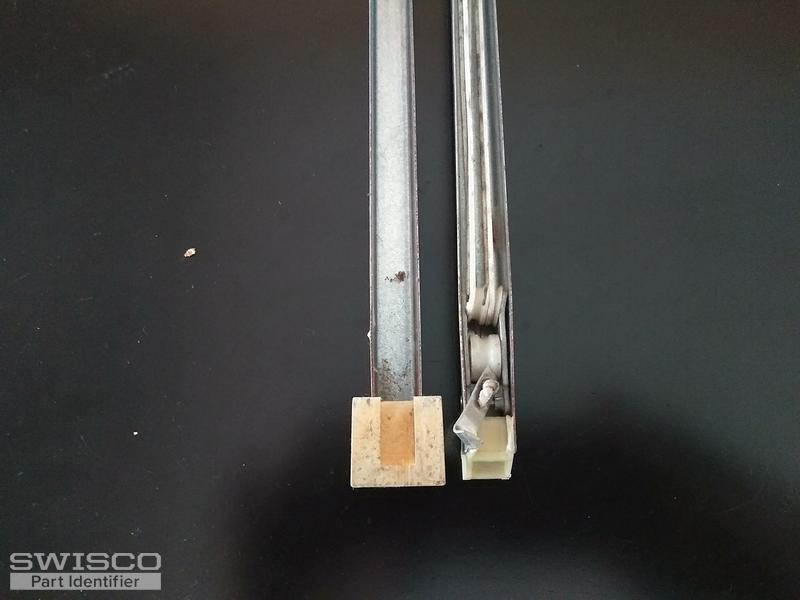

Thumbnail of the uploaded file named IMG_20200304_132715.jpg

Tom from SWISCO responded:

March 5, 2020

We can supply this balance, though it'll have to be a custom order for two main reasons. The first is the combination of nylon fittings; I believe you have a 19-041 top and then either a 15-001 or 15-002 bottom. Look these over and please confirm which bottom is best.

The stamp also indicates an extra heavy spring, which is the second factor for a custom order.

In addition to confirming the combination of nylon fittings, can you tell me how many you need? Once I have this information, I'll email you an order link and price quote for that quantity.

A quick learner from Florida says:

March 5, 2020

Thanks for the response. I attach pictures as there are no numbers on anything. Everything I measured is 1 inch. The broken channel balance (Which was at the top when we took it out also had a small shoe/guide on the sides but the one side broke off). The balance channel width is just wider than half an inch. I just need two for the one window.

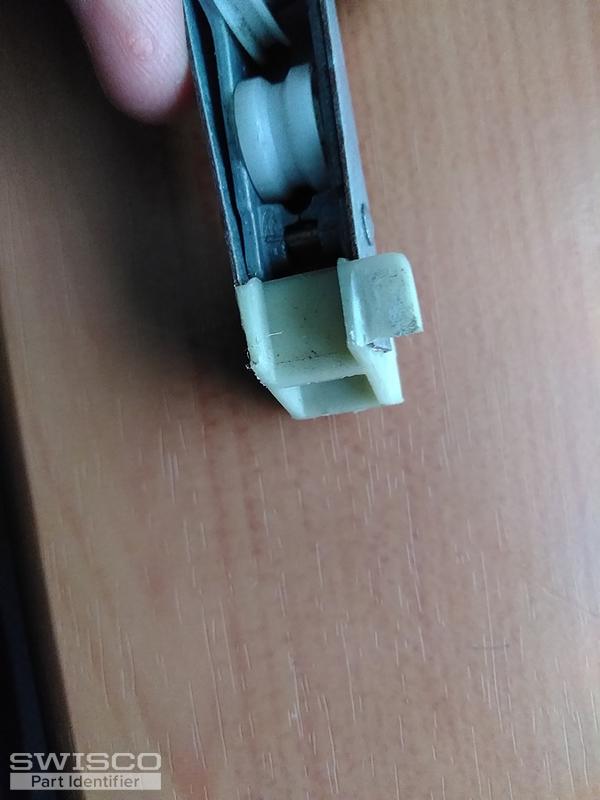

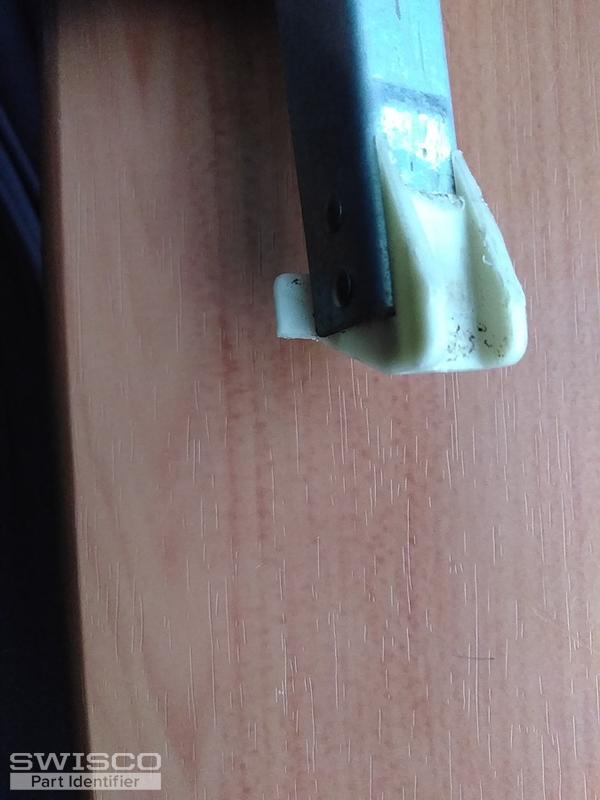

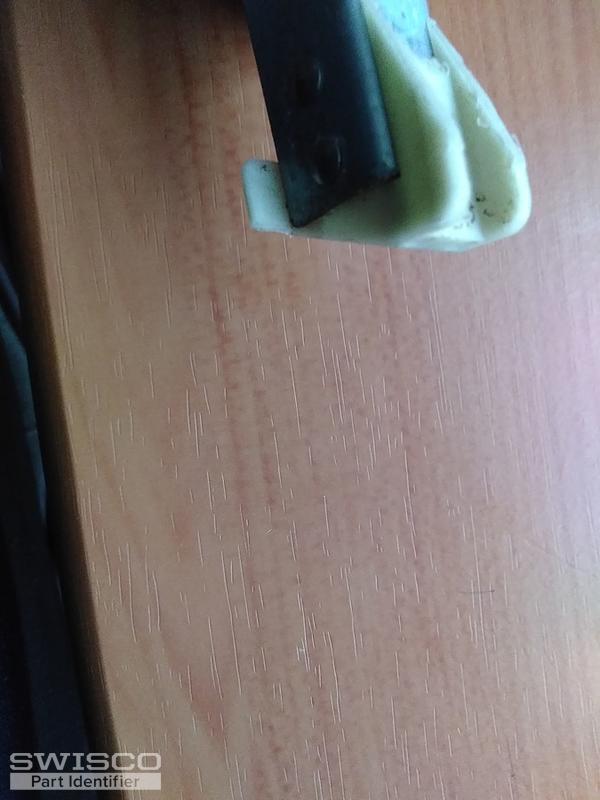

Thumbnail of the uploaded file named Top..jpg

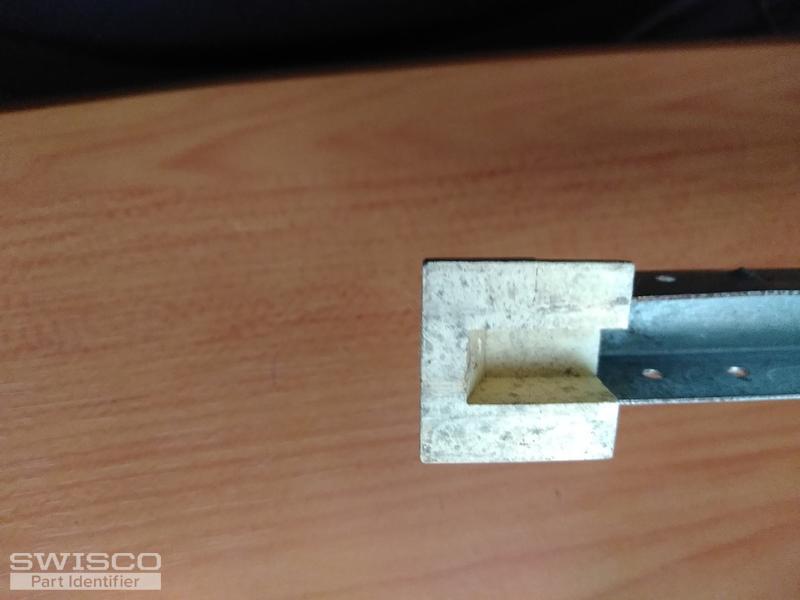

Thumbnail of the uploaded file named Bottom (2).jpg

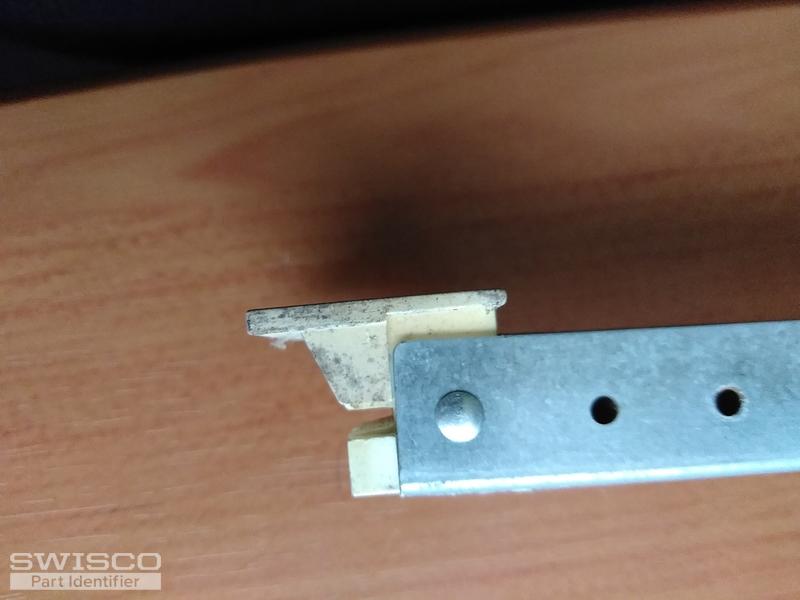

Thumbnail of the uploaded file named Bottom.jpg

Tom from SWISCO responded:

March 6, 2020

Great, if the bottom shoe is 1" then that would make it our 15-002.

I'll email you an order link and price quote for 2 of these right now. Please let me know if you had any questions.

Channel Balance Top, New Security

19-041

$1.30

Channel Balance Shoe, 1-1/8" Depth

15-001

$0.74

Channel Balance Shoe, 1" Depth

15-002

$0.74
