24 4 FS CALDWELL

A quick learner says:

I would like to replace these on 2 of my windows. Total 4 mechanisms needed. 25" channels.

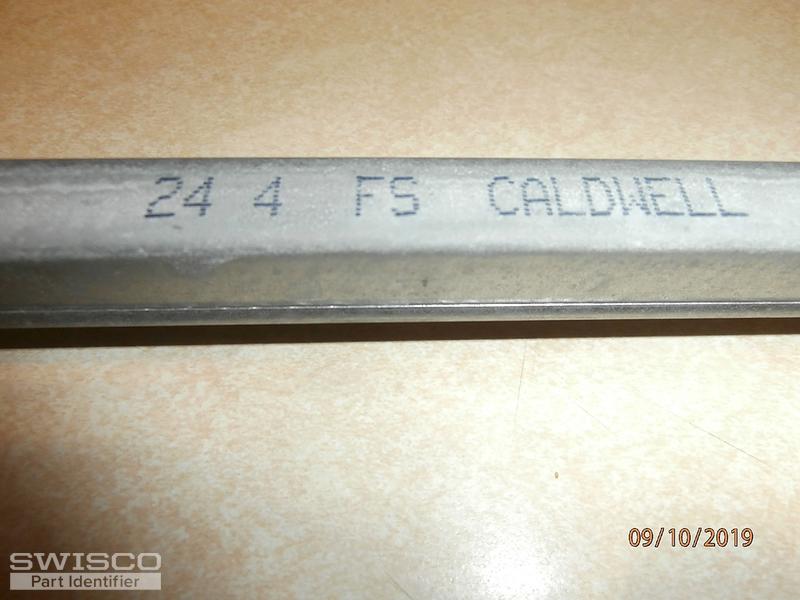

Thumbnail of the uploaded file named window mechanism 001.JPG

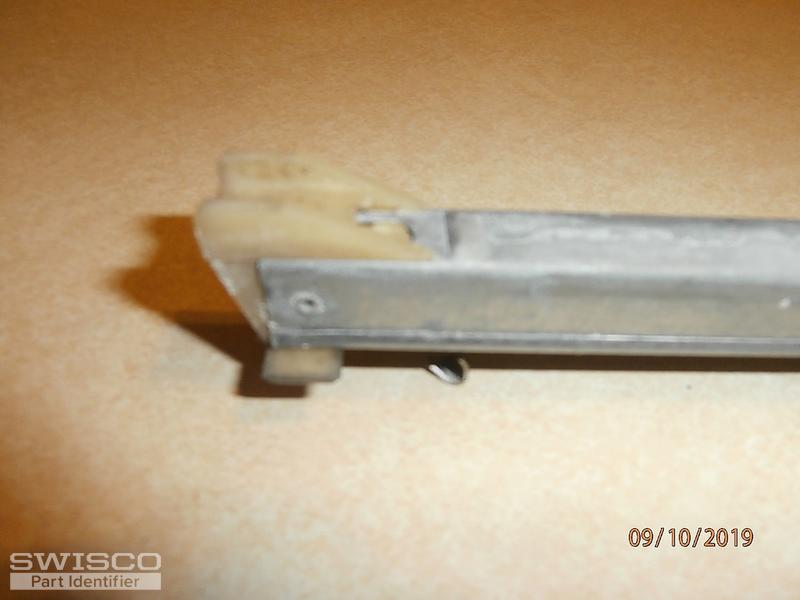

Thumbnail of the uploaded file named window mechanism 002.JPG

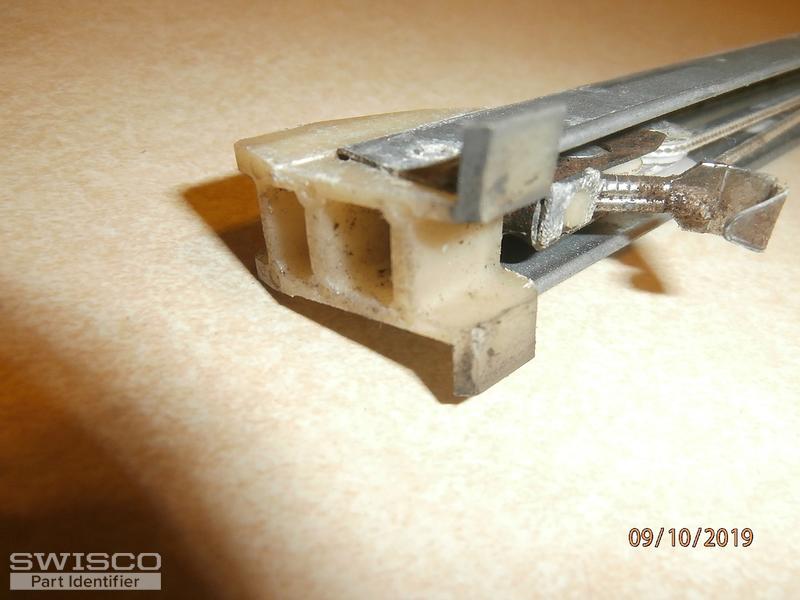

Thumbnail of the uploaded file named window mechanism 003.JPG

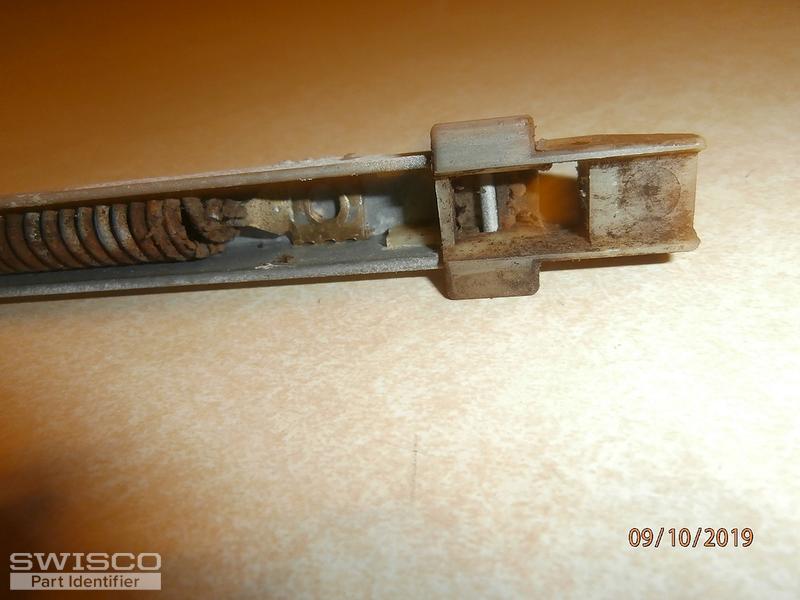

Thumbnail of the uploaded file named window mechanism 004.JPG

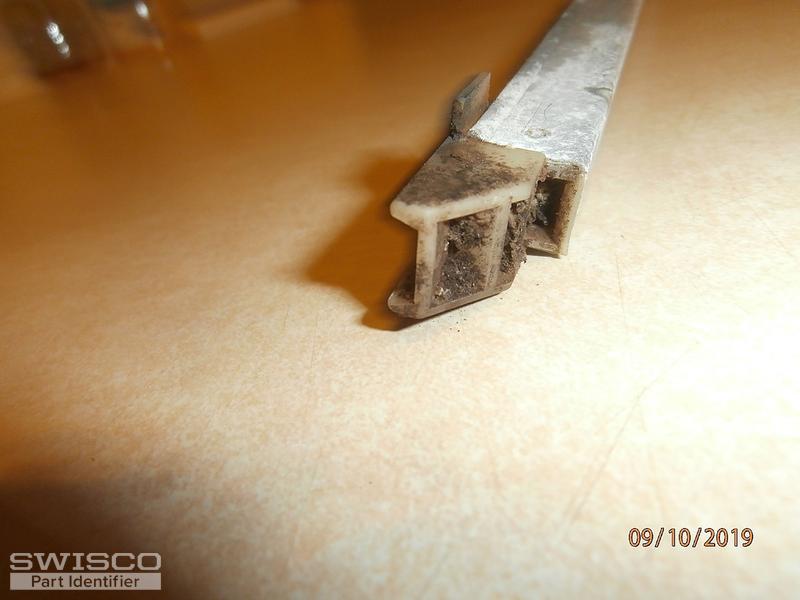

Thumbnail of the uploaded file named window mechanism 005.JPG
Profile picture of Tom
Tom from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-25 or S385-25 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2440 spring strength option for your balances.

Thank you and let us know if you have any other questions or concerns.
