24 in. and 30in.Channel Balance, Top and Bottom Guides, Non-Tilt Impact windows

Question

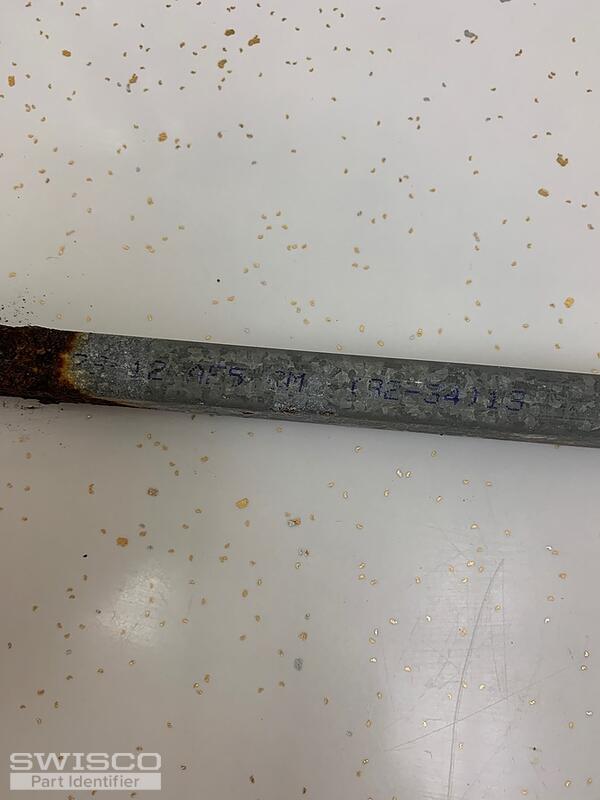

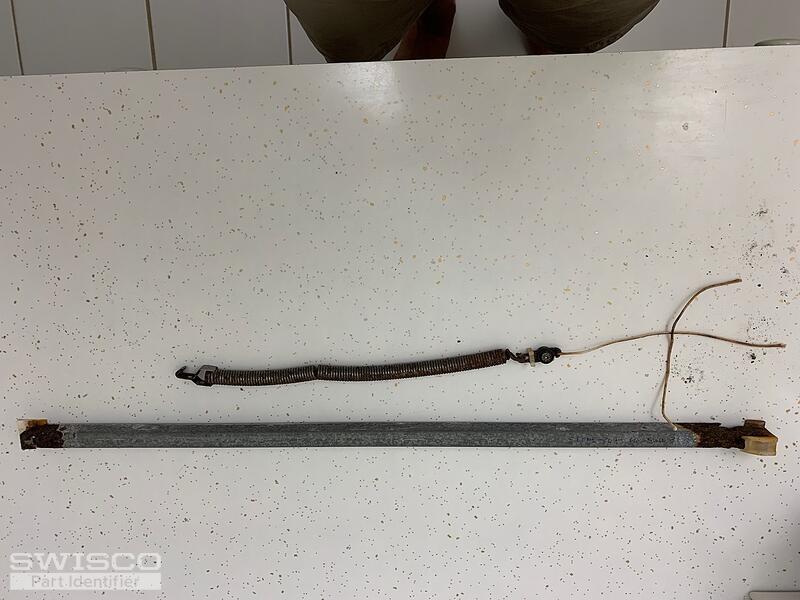

24 in. Marking 23-12-AE5 CM (32-34)13

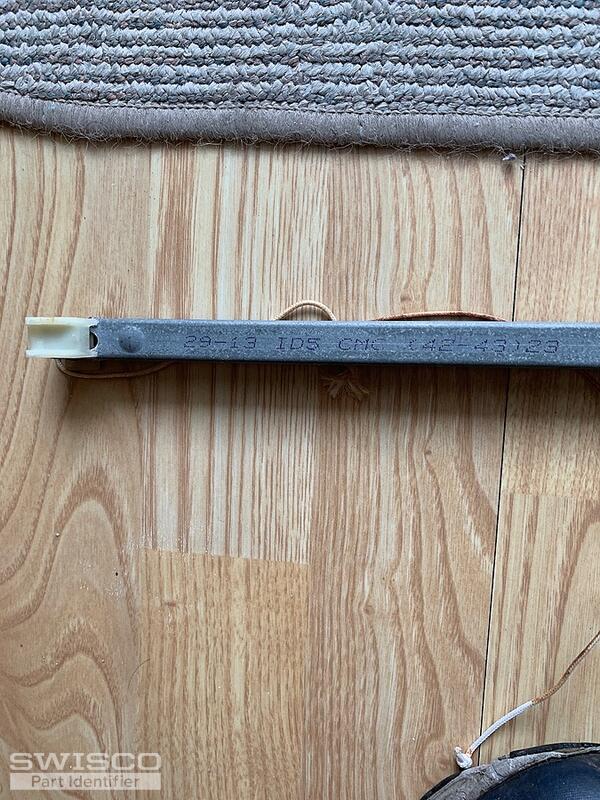

30 in. Marking 29-13-ID5 CMC (42-43)23
Top and Bottom Guides are the same for both
Top Guide is similar to 19-041(New Security) except height is 1 inch instead of 7/8 inch
Bottom Guide (Shoe) is similar to 15-005 except circled area in photo. I Realize that this portion is predicated on the shape of the pulley support, so it may not make a difference.
I have 2 windows each that use these guides for a total of 4 windows.

Tom · Accepted Answer

Hello! I agree, our 19-041 and 15-005 fittings appear to match your originals quite well. The differences you've indicated are minor and shouldn't play a big part in how the balance functions once it's installed. Because of these fittings, though, that means these balances will have to be custom made. It's not a stock combination.

What I am concerned about are your stamps; 23-12 and 29-13 are very, very peculiar. Based on your presumed sash weights you might want our 2365 for the 24" balance and 2975 for the 30" balance; 2365 carries 30 through 34 pounds and 2975 carries 42 through 45 pounds.

You may want to get a precise sash weight in each case just to be 100% sure. I would not rely on the stamps themselves, since they are so peculiar. There's a good chance that those numbers do represent weight but custom balance cannot be returned for a refund. I'd like to get it right the first time so it's best to remove the sashes from each window and place them on a scale to know beyond and shadow of a doubt.

Once you have those weights, let me know if the 2365 and 2975 stamps will work. If so, I'll pull the trigger on these assemblies and get the ball rolling on an order.
