Channel Balance ID

A home owner from glenview, IL says:
March 6, 2020
Hi,
I need your help to identify a windows balance spring.
please forgive me being a layman here. I see it is a tilt window. built on 2001.
length of the part is 24inch.
the photos are attached. the end with plastic is the bottom of the part. this is defective for upper part of the window.
Please review.

George
Thumbnail of the uploaded file named IMG_20200306_153528.jpg
Thumbnail of the uploaded file named IMG_20200306_153532.jpg
Thumbnail of the uploaded file named IMG_20200306_153543.jpg

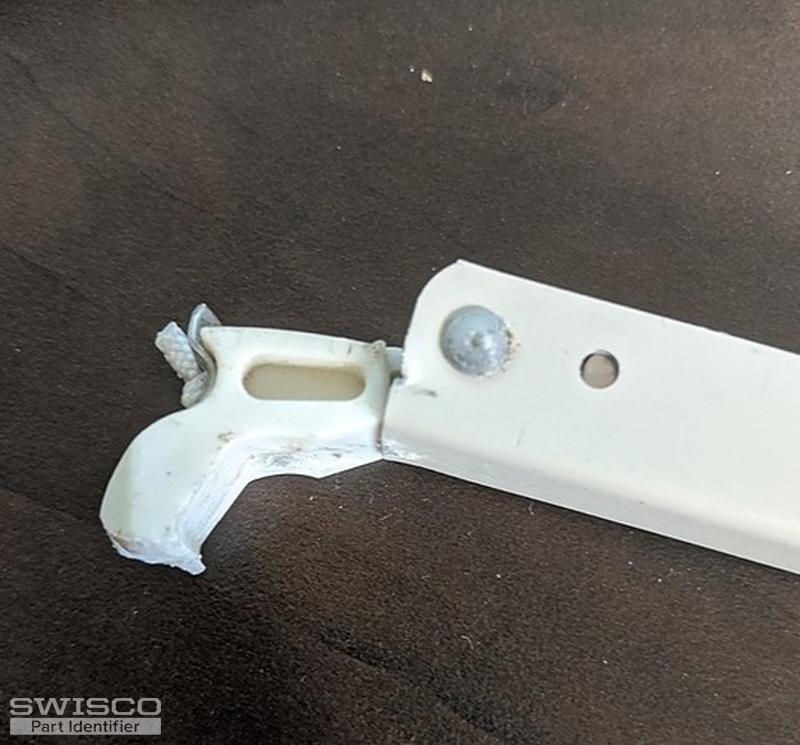

Thumbnail of the uploaded file named IMG_20200306_153525.jpg

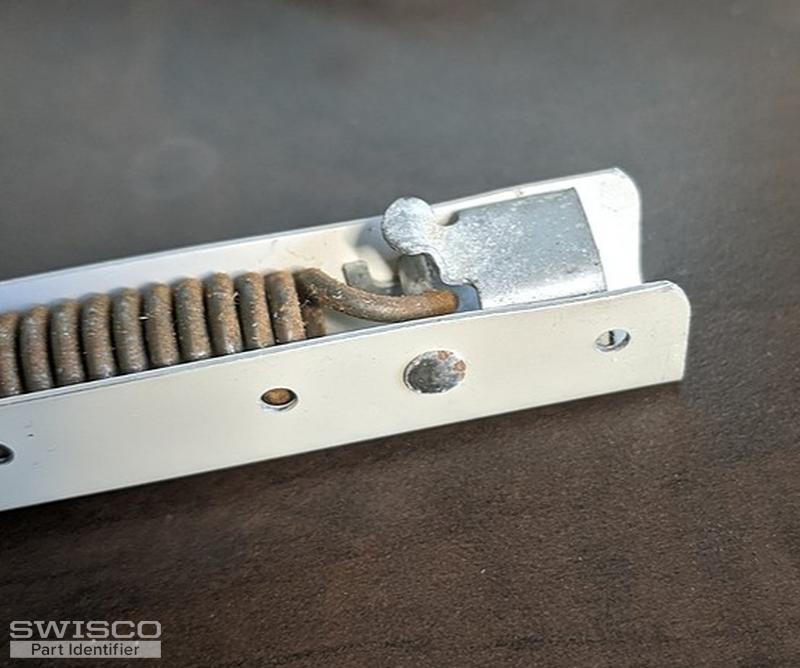

Thumbnail of the uploaded file named IMG_20200306_153538.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 9, 2020

24C B.S.I. LM what does that mean?

Hi George. This looks like it might be a Series 775-24. Look it over and see if you agree. You'll need to measure the bottom attachment of an undamaged version of this balance to see what size shoe you need (1" or 1-1/4").

The stamp code of 24C refers to weight range the balance is calibrated to support; in this case, a window sash in the weight range of 17 through 22 lbs.

Finally, does your old balance screw in at the top to the window track? I assume it does, but check this to be sure. Many thanks.
Profile picture of Casey
Casey from SWISCO responded:
March 9, 2020

Ok sounds great. We will be here. Thank you.
A home owner from glenview, IL says:
March 9, 2020
Bob,I have to check it this thursday as I am out of town now.
the top does not need to be screwed in to the track. I recall yesterday I just took it out, very tight, but may just need to snap in.
I will update you.
thanks a lot Bob.

George
24" Series 775 Balance
24" Series 775 Balance
S775-24
$21.59
28" Series 775 Balance
28" Series 775 Balance
S775-28
$21.91
How to install a S775 balance
How to install a S775 balance
GUIDE
READ >
