25 5 LQ CALDWELL balance replacement

Quick Learner from CA
PLease help me out. Your website is helpful but all the end parts look the same to me.

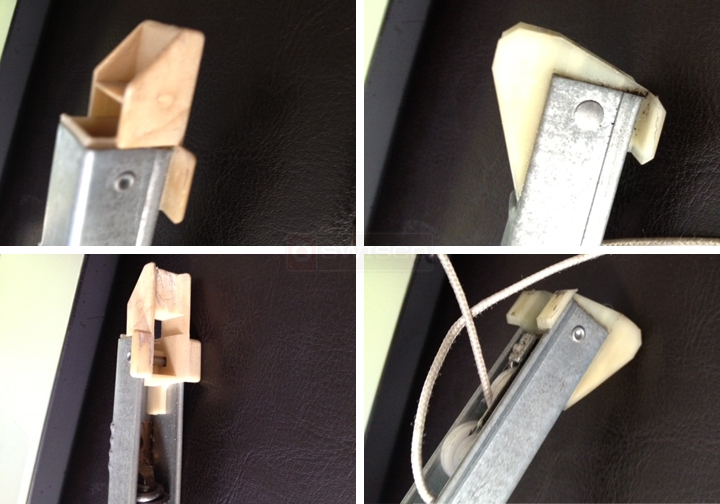

I have a balance that I need to replace. It is ink stamped 25 5 LQ CALDWELL.
The metal shaft is 1/2 inch wide and 26 inches long.

thanks!
1 user uploaded image
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Good morning! Thanks for posting. Please take a look at our S385-26 channel balance. Does this appear to match your own hardware? I also recommend the 2550 stamp option, which can carry a window sash weight range of 25 through 28 pounds. Does your sash's weight fall within that range?

Please keep in mind that the weight range information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Quick Learner from California
Just replaced the balances with the ones you recommended. I watched your instructional video, and that made it really easy. Thanks so much!
Paul
Paul from SWISCO
SWISCO
Expert
Not a problem it was my pleasure. Let me know if you have any other questions!
