26-3 JQ CALDWELL

Quick Learner from WA

May 19, 2025 12:51 am

The length of the metal channel is 27"
It is marked '26-3 JQ CALDWELL'
I'm uncertain about the depth and the width.
The depth is 9/16"
The width of the narrow side is 1/2"
The width of the wide side is 19/32"
Both top and bottom are winged.

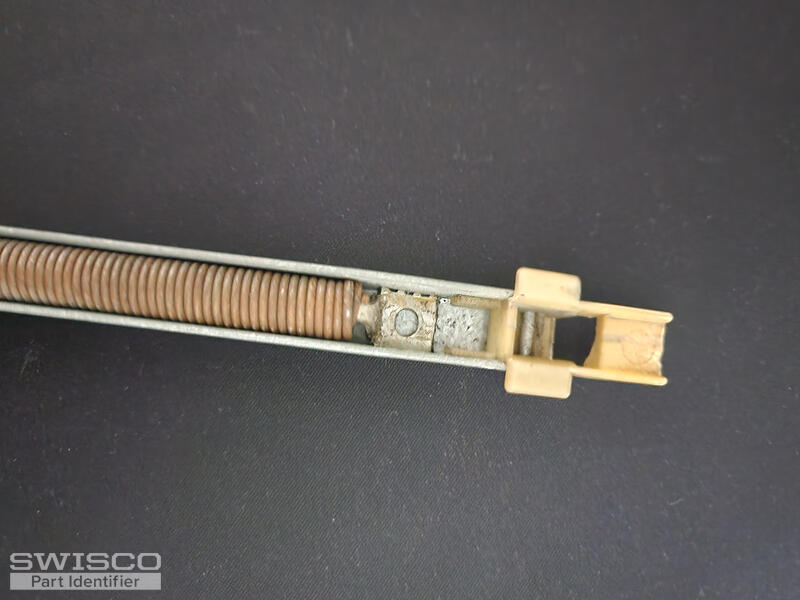

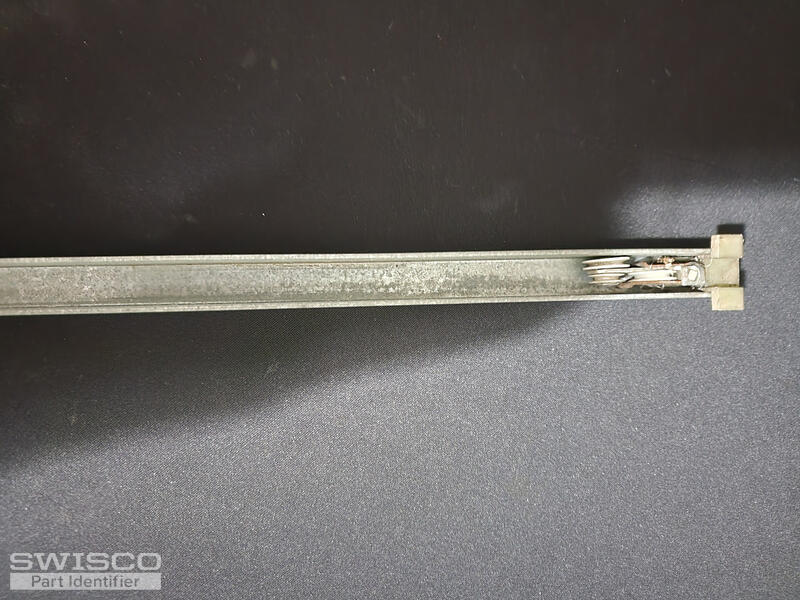

5 user uploaded images

4 Replies

Jasmine from SWISCO

May 19, 2025 3:22 pm

Thanks for posting! May I see a photo of the bracket (metal piece) connected to the bottom of the spring? I've narrowed down the possible balance replacements to a few options but I'll need to see that piece to determine the correct balance type.

Please let me know if you have any questions!

Quick Learner from WA

May 21, 2025 10:46 am

Thanks!

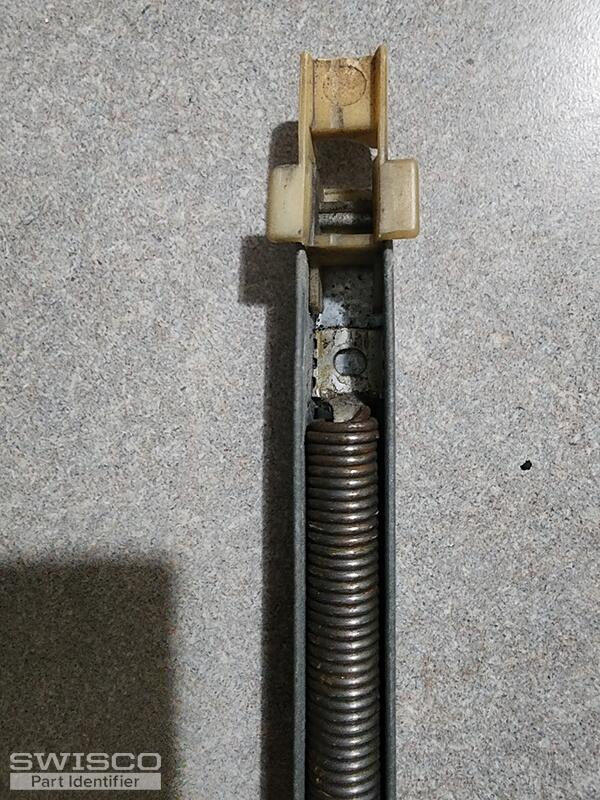

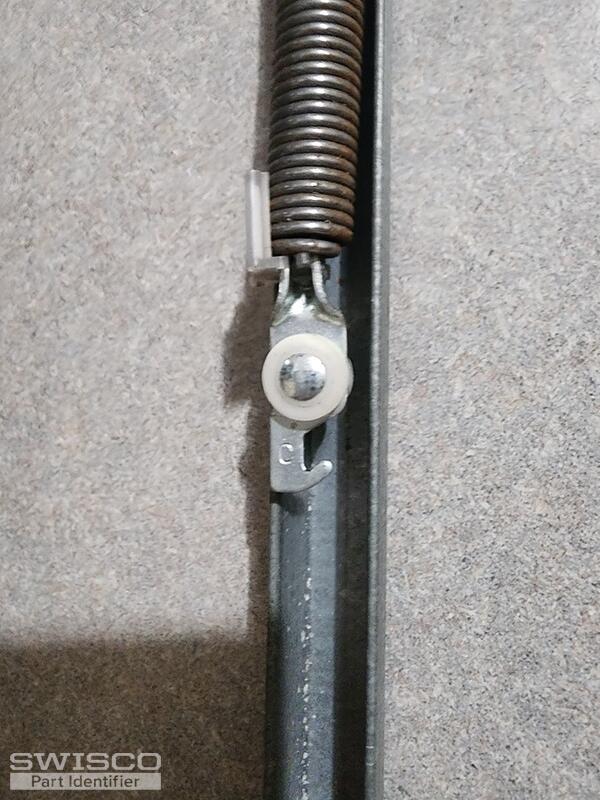

2 user uploaded images

Jasmine from SWISCO

May 21, 2025 1:53 pm

Thanks for the additional photos! Your balances can be replaced with the S378-27, S380-27, or S385-27. You'll need to confirm the shoe's depth to determine which series is the correct replacement.

I believe you'll need the 2630 stamp option but I do recommend double checking that your sash weight falls between 13 to 19lbs.

Comparison of the S378, S380 and S385 balance shoes.
