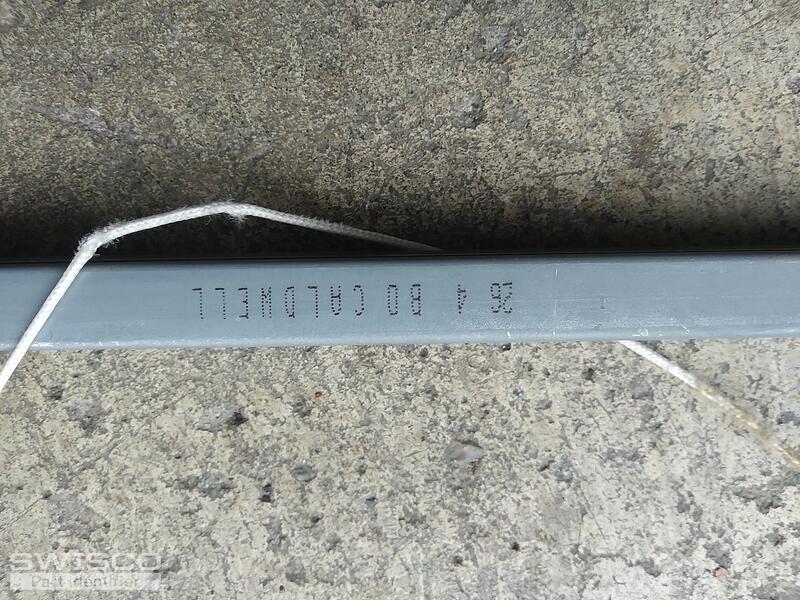

26 4 B O Caldwell

A quick learner from Redmond, WA says:
Based on other posts it looks like I need to order the S 385 balance. This is for a non-tilt double-hung window. Let me know if you need more info. I have additional photos but reached the maximum... I'm helping a friend with her window repair.

Thanks for the very helpful videos!

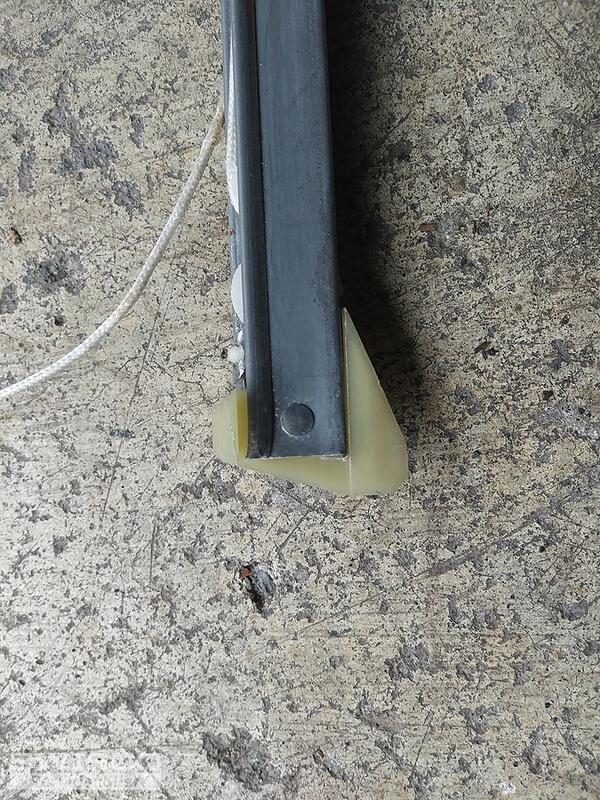

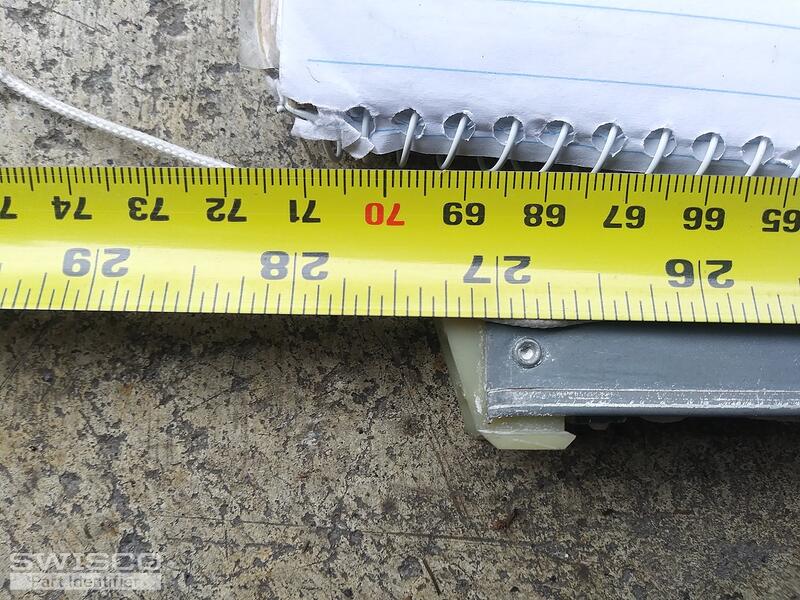

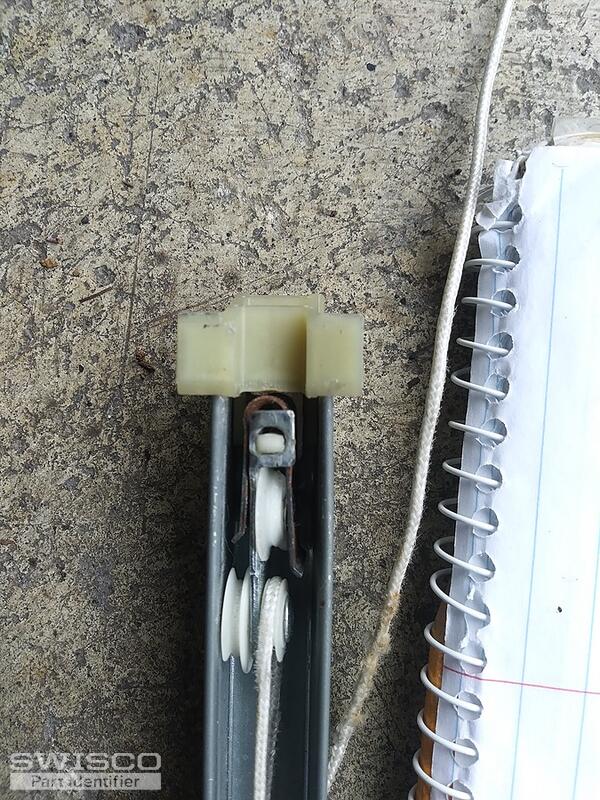

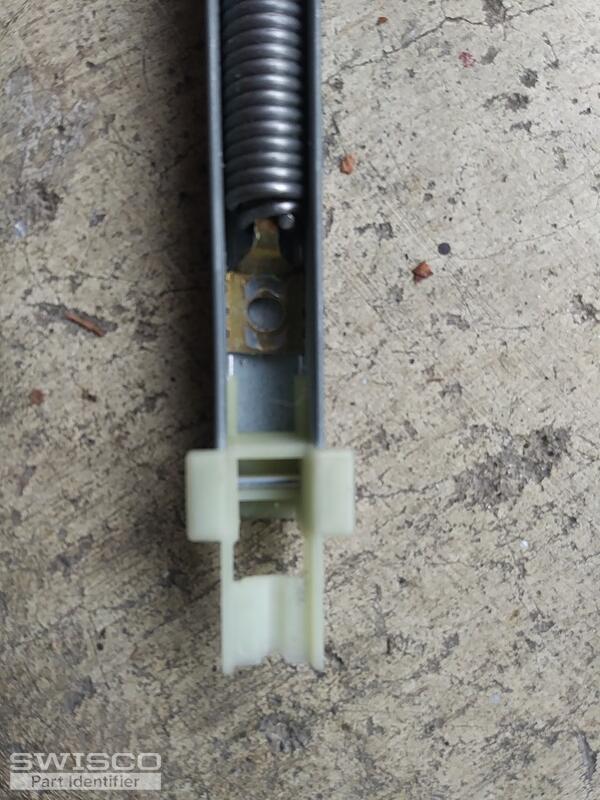

Thumbnail of the uploaded file named 0914211336a.jpg
Thumbnail of the uploaded file named 0914211336.jpg
Thumbnail of the uploaded file named 0914211336_HDR.jpg
Thumbnail of the uploaded file named 0914211335.jpg
Thumbnail of the uploaded file named 0914211334d.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Redmond, WA says:
Thanks. It is a 1 3/32 bottom attachment so looks like the 385 / 2640 should work. I ordered a couple.


Thanks again
Profile picture of Emily
Emily from SWISCO responded:

You're very welcome. Thank you for your order! If you have any future hardware questions, you know where to find us.
