26 4 EN caldwell : SWISCO.com

Home Owner from Lakewood Washington

Nov 1, 2024 4:55 pm

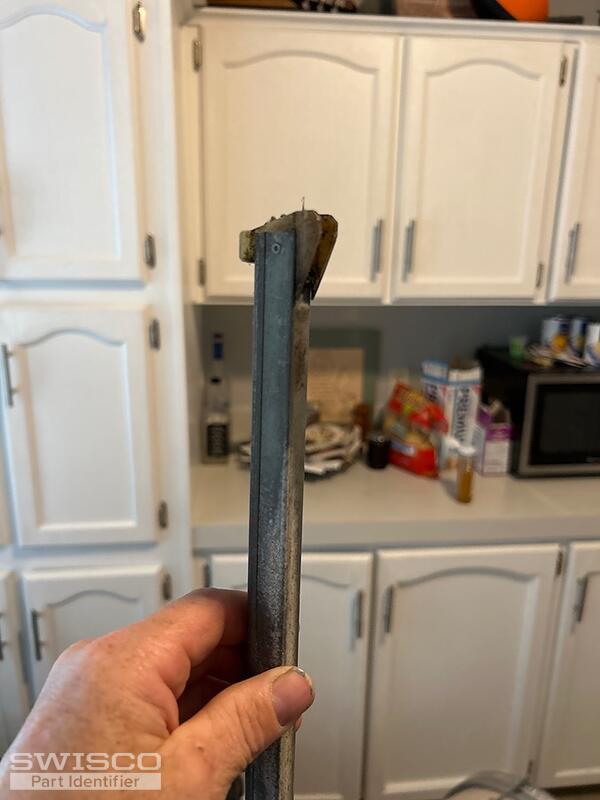

Hi, I'm looking for a Specific window balance I want to make sure that they fit The numbers are hard to read, but it is 26 4 EN Caldwell

4 user uploaded images

10 Replies

Home Owner from Lakewood Washington

Nov 1, 2024 6:50 pm

I'm trying to find this specific part does Or even another part that would still work

Emily from SWISCO

Nov 5, 2024 10:45 am

Hey there!

Thanks for reaching out to us. We're happy to help with this. Can you show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. Can you also measure the bottom shoe as shown below and tell us what you get?

Profile view of a winged balance attachment

Home Owner from Lakewood Washington

Nov 5, 2024 10:20 pm

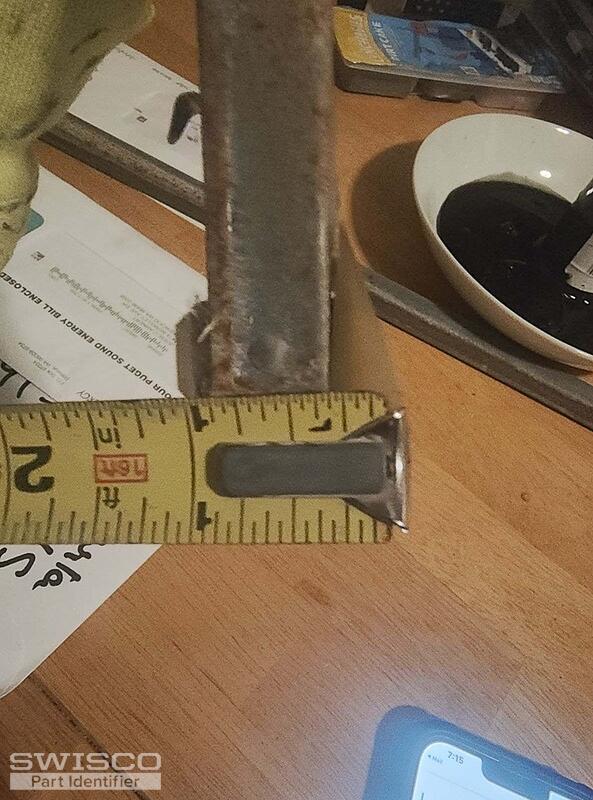

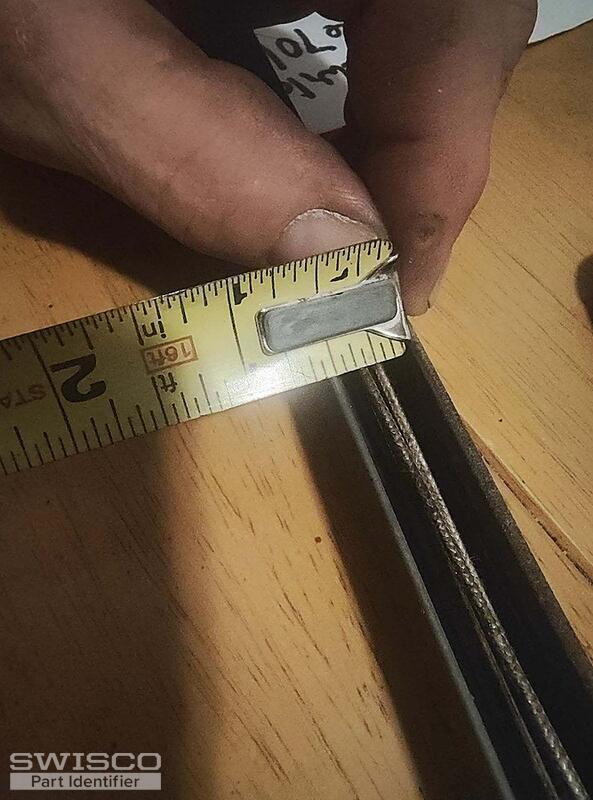

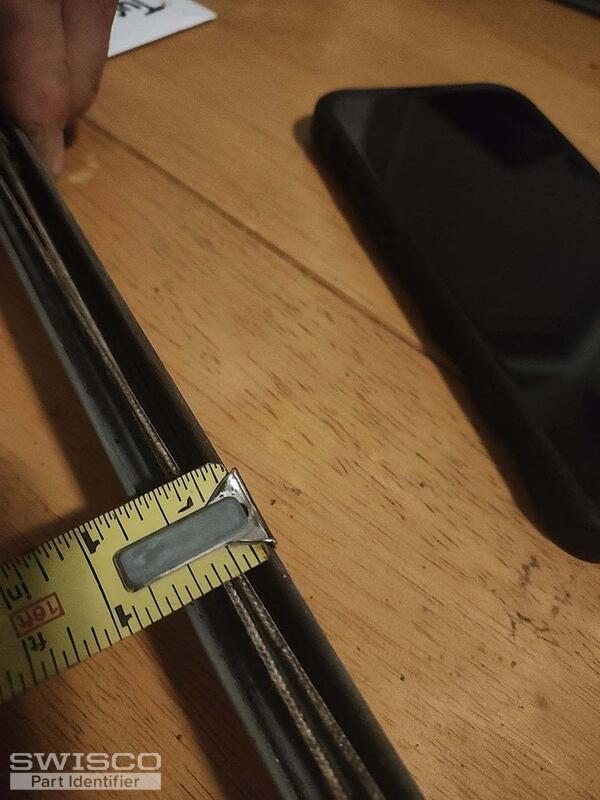

These are the pictures you asked for please respond as soon as you can get a chance I would like to order these things soon Thank you!

3 user uploaded images

Emily from SWISCO

Nov 6, 2024 8:14 am

It looks like the tape measure is obscuring the spring connection. Can you show us a clear photo of it without the tape measure?

Home Owner from Lakewood Washington

Nov 7, 2024 6:23 pm

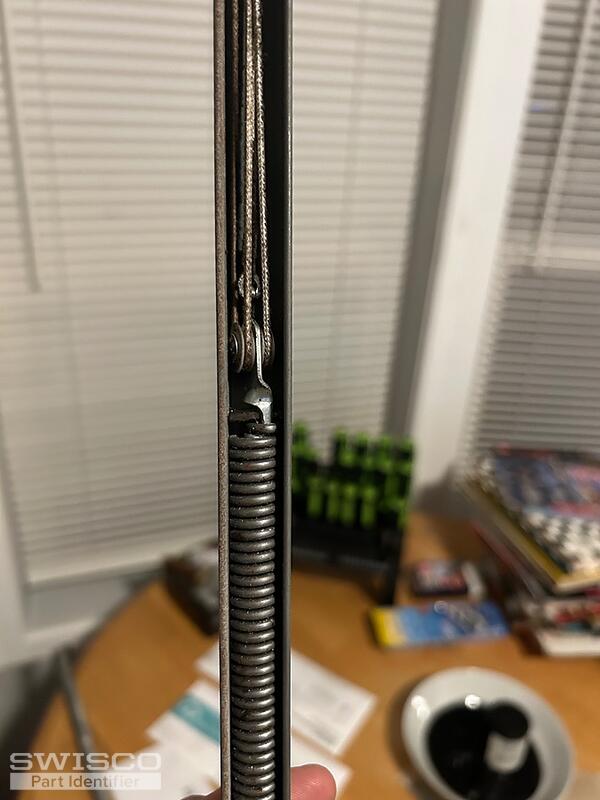

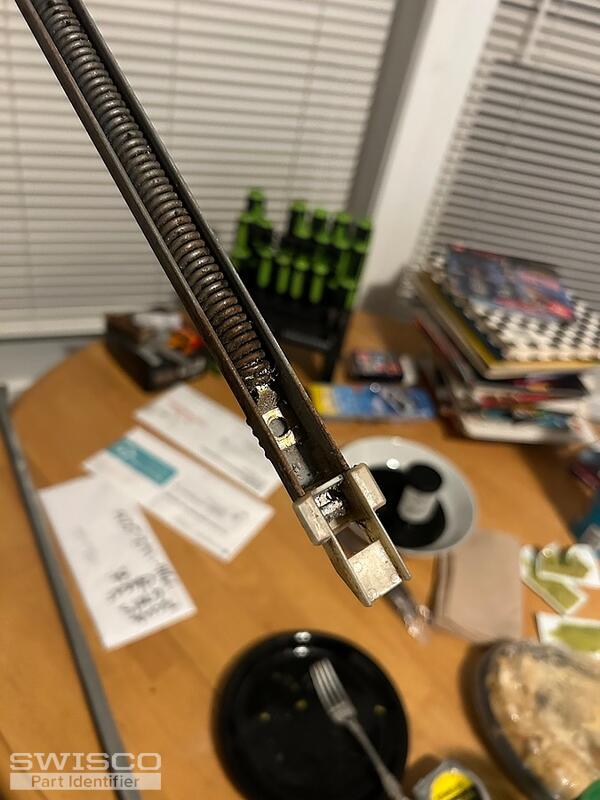

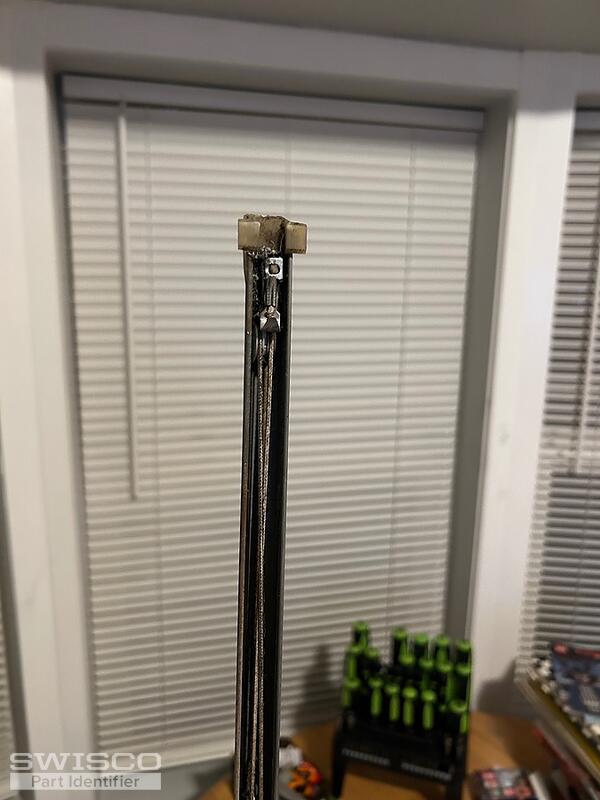

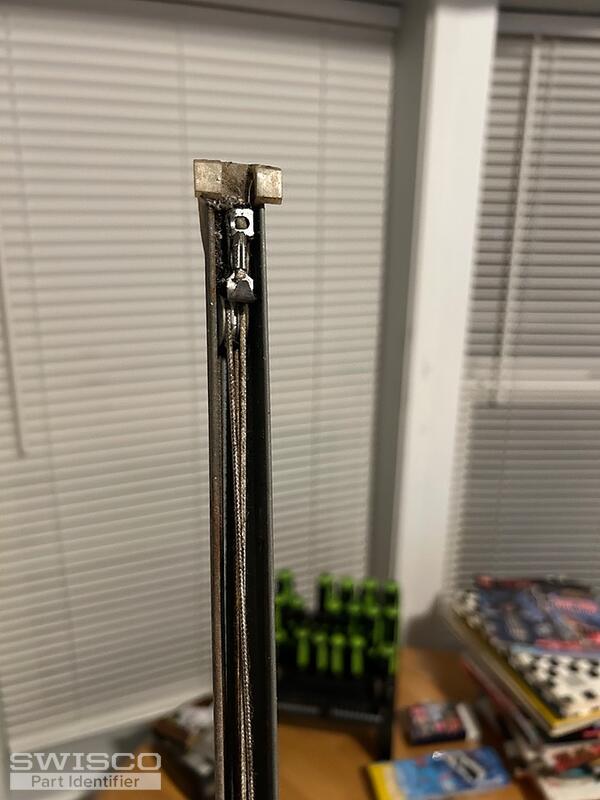

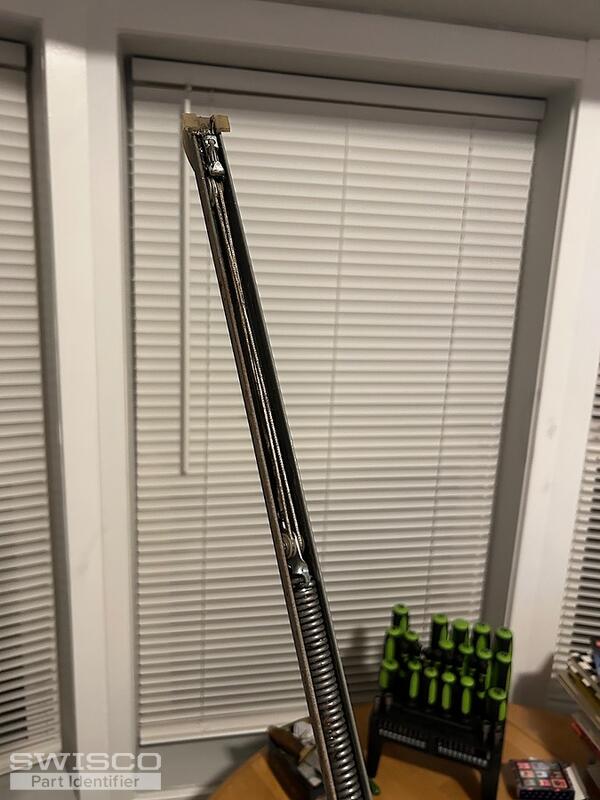

Here are some more photos

Home Owner from Lakewood Washington

Nov 7, 2024 6:24 pm

Okay

5 user uploaded images

Emily from SWISCO

Nov 8, 2024 8:08 am

Thank you kindly! I recommend our S380-27 or S385-27 channel balance depending on the depth of the bottom shoe. You'll have to measure as shown below to determine the best match. You can also select the 2640 stamp option for your replacements.

Let us know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Lakewood Washington

Nov 9, 2024 12:26 am

OK, I wanted to order two of them. The only problem is I put in 380-27 and it tells me I need to pick an option. I'm confused. I don't know what exactly the options are. They're just numbers. Can you please help me so that I can get these ordered?

Emily from SWISCO

Nov 11, 2024 8:11 am

Hello,

Based on your original stamp, you will need a 2640 spring strength option that can support a 19 to 26 lb window sash. Please let us know if you have any additional questions.
