26-415 w/ S140

A quick learner from Indiana says:
November 19, 2016
Hi, I purchased two of your S140 coil balance springs. I installed them today, but the pivot bars on my windows won't fit. The 26-415 have matching dimensions (will install onto my sash) but I am not sure if they will mate with the S140.
A quick learner from Indiana says:
November 19, 2016

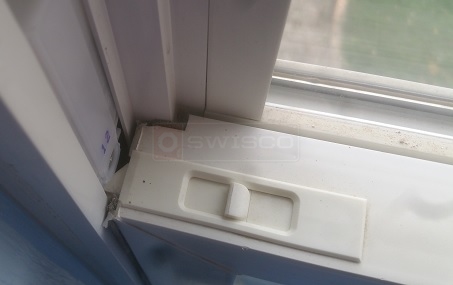

I filed down the pivot bars and everything fits EXCEPT the tilt locks on the top of the sash won't clear the S140 coils.

The old coils had a type of wedge shape at the bottom that pushed the locks in to clear the coils.
User:latch
Profile picture of Paul
Paul from SWISCO responded:
November 21, 2016
Are you able to move the coil balance further down, so that it's below the tilt latch while the window is closed? You will have to drill a new hole in order to do this.
