26" caldwell window Balance Stamp 25-5
Quick Learner from Poulsbo, WA
Aug 14, 2024 11:47 am

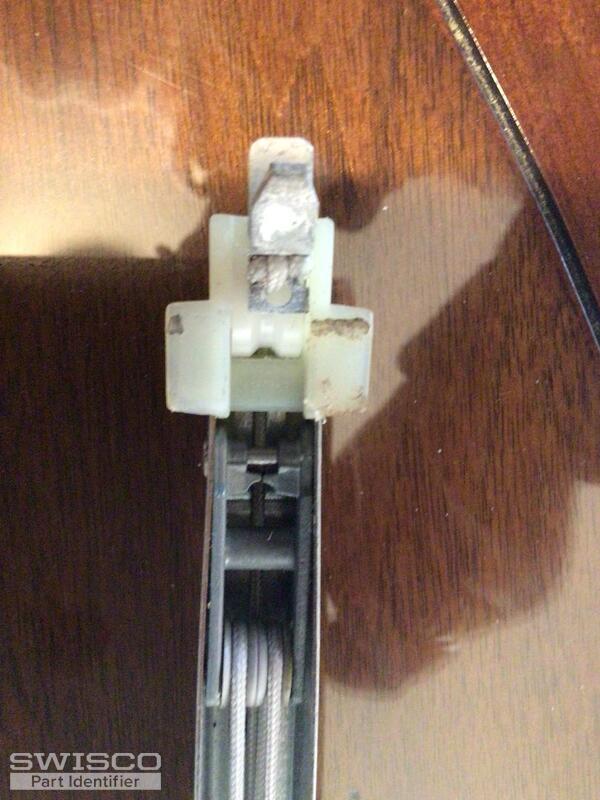

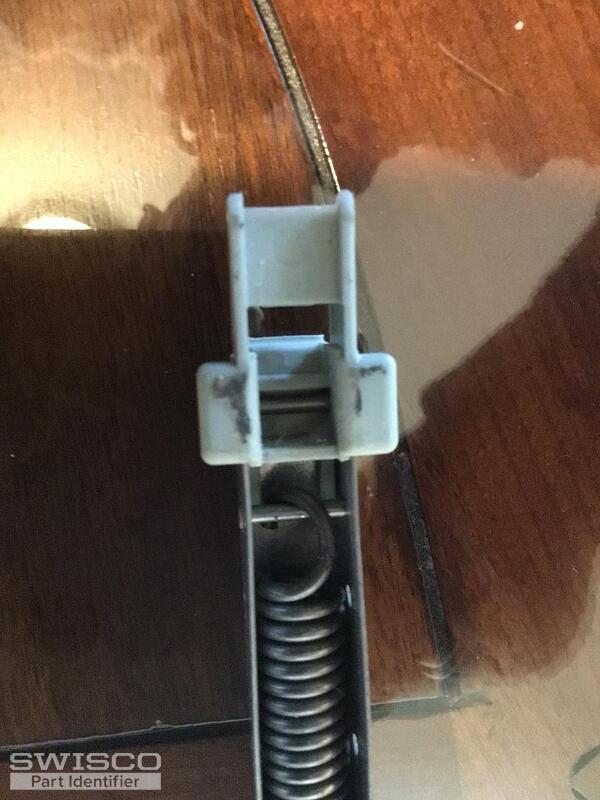

This balance is stamped 25-5 (with annotations TA 198?). Channel Width appears to be between 1/2" to 9/16" wide. The 15-005 appears to be 1 inch. My reading of your site on these items indicates it is a series 380 1/2" wide channel balance stamp 25-5. Before I order these items, do you agree with my assessment or have a different series in mind?
5 user uploaded images
4 Replies
Casey from SWISCO
Aug 16, 2024 11:46 am
Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. Note that this type of balance stamped with 25-5 should have a 25-5/8" long metal channel, not including the end fittings. If so, we'll just need to confirm the number of balances that you need, with the minimum being two. Thank you.
Quick Learner from Poulsbo, WA
Aug 16, 2024 1:59 pm
Casey:
I carefully measured the channel length, and it does appear to be 25 5/8". As it is stamped 25-5, I understood as a trade practice it was identified as 26". I take it you are saying this is not a series 380 1/2" balance. I am glad I sent these photos to you as could not discern any difference in the end attachments as both look identical to the photos for a series 380.
Before I jump into the water, can you give me an idea of what 2 balances and shipping would costs?
I carefully measured the channel length, and it does appear to be 25 5/8". As it is stamped 25-5, I understood as a trade practice it was identified as 26". I take it you are saying this is not a series 380 1/2" balance. I am glad I sent these photos to you as could not discern any difference in the end attachments as both look identical to the photos for a series 380.
Before I jump into the water, can you give me an idea of what 2 balances and shipping would costs?
Casey from SWISCO
Aug 19, 2024 11:23 am
You are correct that the S380 stock balances would not work in place of your balance since they do not have the same extended travel pulley system needed for your window. We just sent over an order link and price quote for you to review. You'll also be given multiple shipping options to choose from at checkout. Take a look and let us know if you need anything else.
