26 inch window balance

Professional from Playa Del Rey

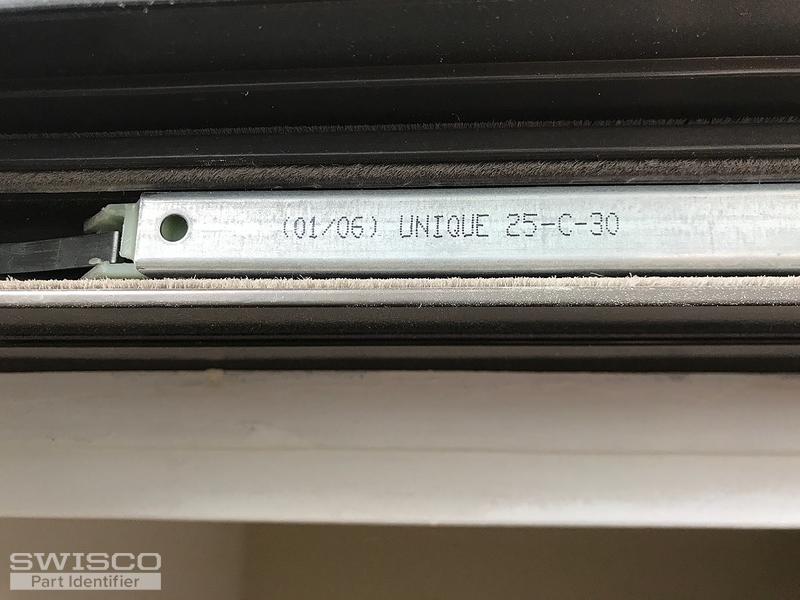

Only markings (01/06) UNIQUE 25-C-30.
4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thank you for submitting your inquiry to our discussion board.

Based on your pictures, it looks like you have either our Series 351 or Series 390 channel balances.

The difference between the two series lies in the bottom shoe.

Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002

The series 351 channel balance has the 15-002 shoe while the series 390 channel balance has the 15-001 shoe.

The 15-001 shoe is 1/8" larger from front to back.

Whichever series you choose, the balance length will be 26 inches and the stamp option will be 2530.
