2630 Channel Balance

Quick Learner
Length - 27 inches
Stamp - 2630
Width - 1/2 inch
I need two new balances.
3 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but we'd like to see the connecting point between the spring and pulley system inside the metal channel. That would help us confirm if you could use our stock balances or if they would need to be special ordered. Thank you!

Quick Learner

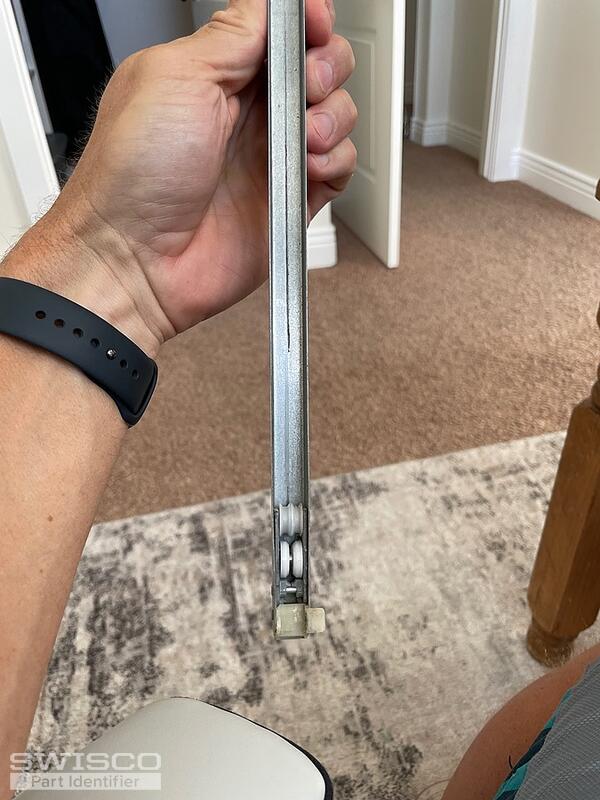

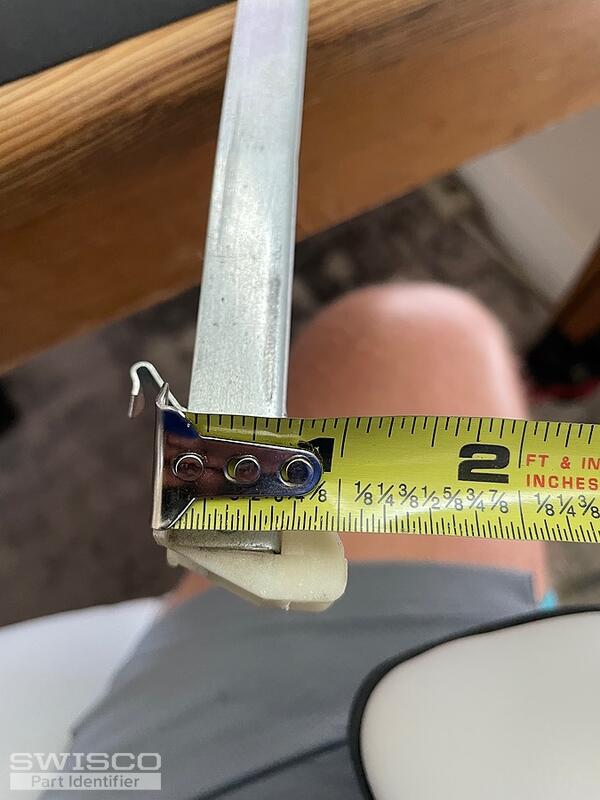

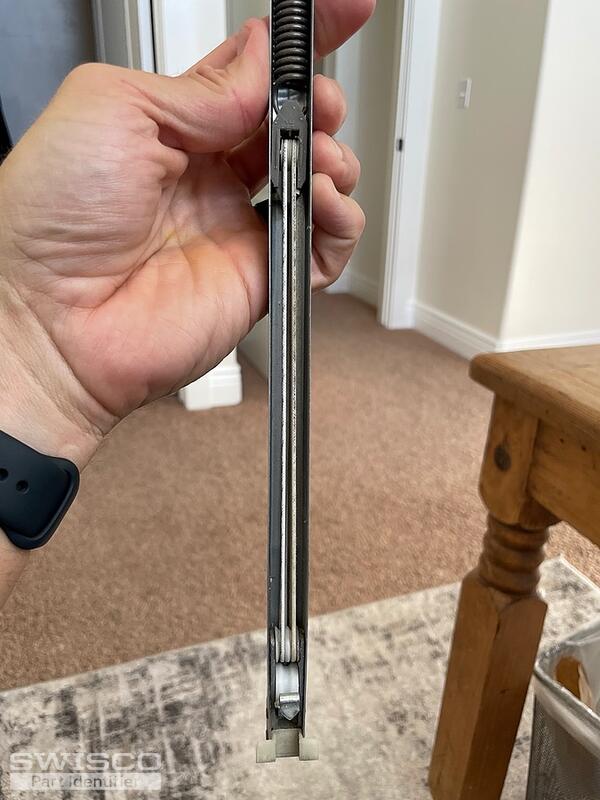

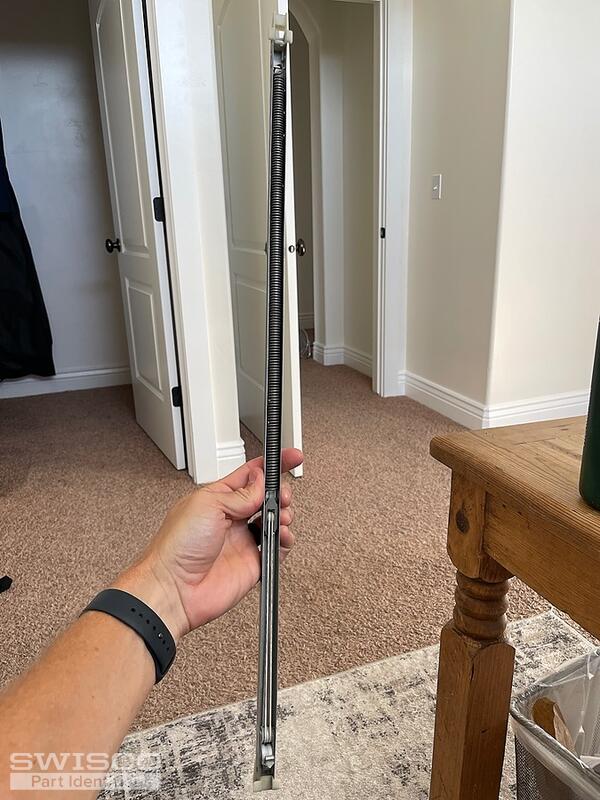

Attached are some more pics, one of the balance I need to replace and two of the other one on the window.
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2630 spring strength options for your replacement balances. Just let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner
Based on this I think I need a S 385.
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

I agree that as long as the depth of the shoe measures over 1", the S385 would be the way to go.
