2640 balance 28" long

A quick learner from Maspeth NY says:
My balance is number 28 inches length and the number 2640 I would likeDo you know which new balance do you say thank you
Thumbnail of the uploaded file named 7F41E4CE-CF27-4A16-BFA2-F96DCB2FF8BF.jpeg
Thumbnail of the uploaded file named 43EE0D16-5716-40EB-BBA7-3E89BD4DDA27.jpeg
Thumbnail of the uploaded file named 099BD882-74FF-4FDF-8F28-2D50DF1F0169.jpeg
Profile picture of Tom
Tom from SWISCO responded:

If the stamp is 2640, then the length of the metal channel should be 27", not 28". Make sure that you're only measuring the metal channel. Don't count the nylon fittings when you measure. I think if you double check, you'll see that your metal channel is 27" long.

A quick learner from Maspeth NY says:

Hi Tom,

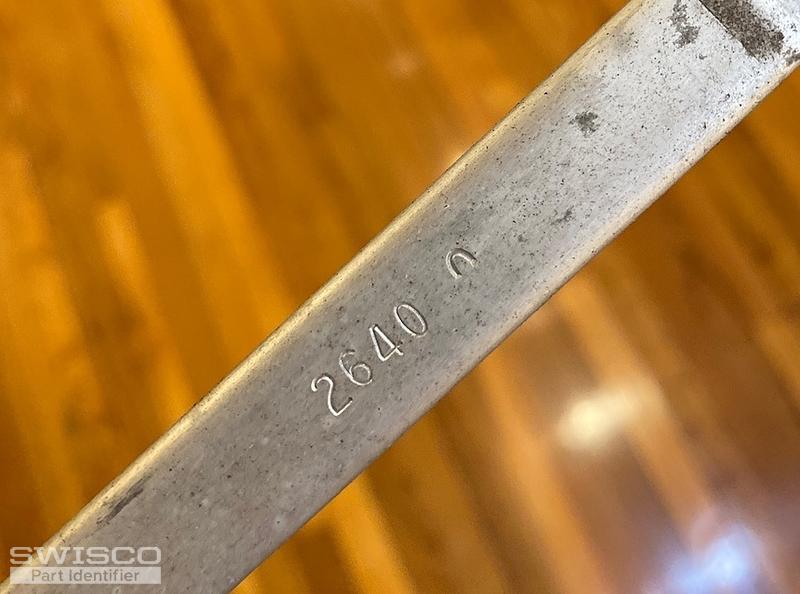

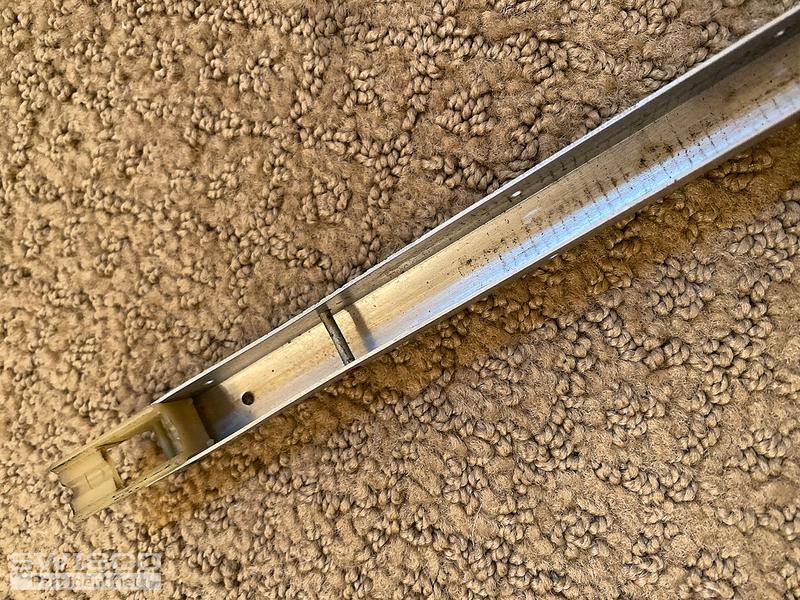

I believe my channel is 27" long. I've attached few more pics let me know what you think. You are right it is 2640 please see the attached image.

Thumbnail of the uploaded file named F9AFB5F3-AD48-41B8-A985-CDE5FB6B42BE.jpeg
Thumbnail of the uploaded file named F3A8435E-C650-456B-BA99-0287F126F9C3.jpeg
Thumbnail of the uploaded file named A0D0B872-F561-4CFE-8C98-727B6AD772CD.jpeg
Thumbnail of the uploaded file named 29F0FE6C-A0B5-415A-89BC-08C21A92EA8F.jpeg
Thumbnail of the uploaded file named 86E53182-C245-4A75-A7AD-90CCFC3B1929.jpeg
Profile picture of Tom
Tom from SWISCO responded:

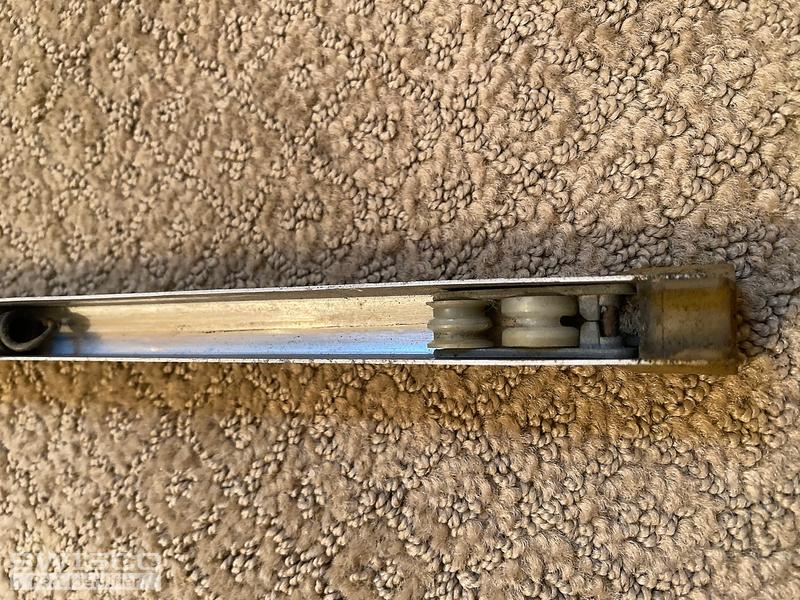

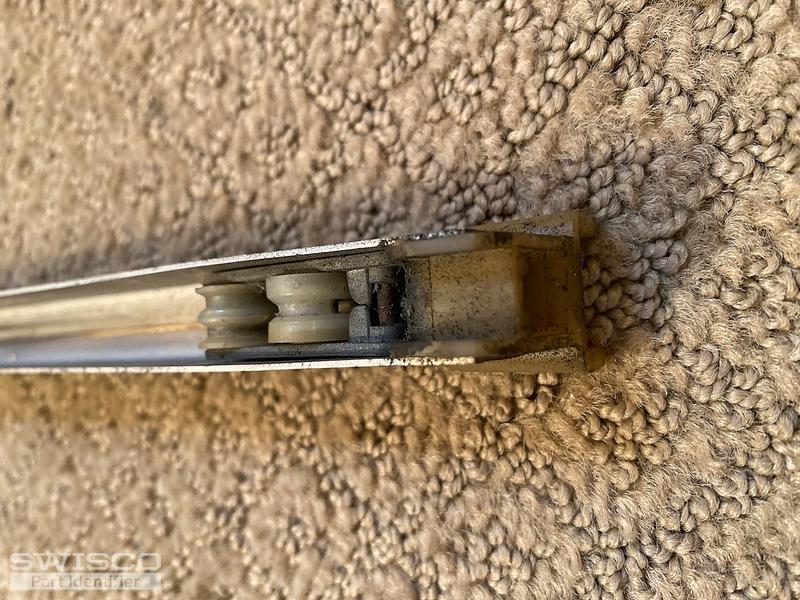

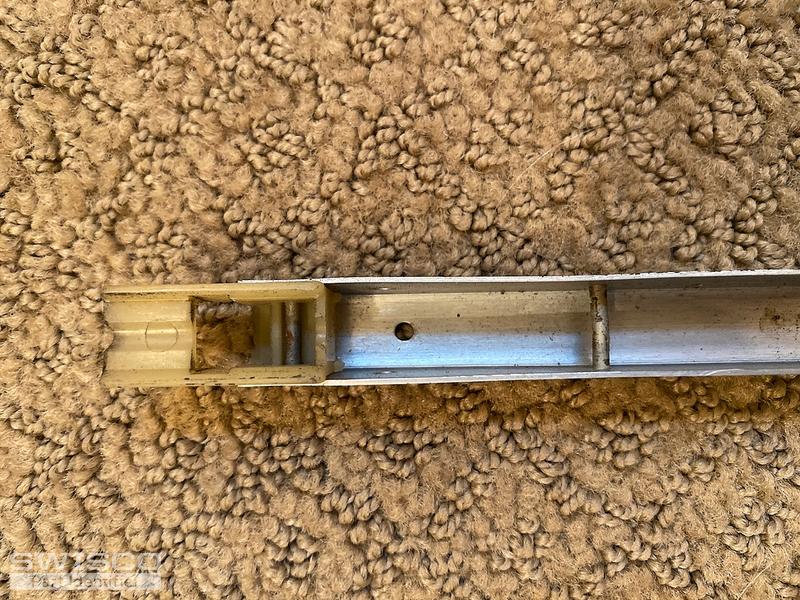

Thanks for getting back to us! Looking at these new photos of your nylon fittings, I think you might have a custom combination. It looks like you have a 19-002 top fitting and a 15-050 bottom fitting.

Please look these parts over and let me know if you agree. If so, this will have to be a custom made balance, since none of our stock options can replace it.

If you were interested in that, let me know how many balances you need and I can then email you a custom order link and price quote for that quantity. That order link allows you to add the custom balance to your cart as if it were any standard product.

A quick learner from Maspeth NY says:
Hi Tom,

Thank for the response!

I measured the top and bottom fittings and i believe you are right. This is gonna have to be a custom made balance. How much will one cost?
I am gonna need 24 of them.

Please let me know

Thank you

Nick
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thanks for confirming. I'll email you an order link and price quote now for 24. Keep in mind that if you order less than 12, these balances will be more expensive.
