Patio Door Handle

Start a new Discussion

Home Owner from East Brunswick

Feb 28, 2021 4:15 pm

Hi,

Enclosed is a picture of my patio door handle. Please help me identify the part number.

Thanks,

Rudy

1 user uploaded image

6 Replies

Tom from SWISCO

Mar 1, 2021 3:11 pm

Thanks for posting, Rudy. Your handle set looks like a very close match to our 82-009A. Check it out and let me know if you agree.

Home Owner from East Brunswick

Mar 3, 2021 2:09 pm

Thank Tom

I would also like to know if there is a missing part towards the top of the patio door when the door is closed.

Also can the railing and wheels be replaced, let me know the part no

Re the handle the screw doesn't seem to get tight will the new handle not have the same issue?

Thanks once again. Rudy

2 user uploaded images

Dave Sr. from SWISCO

Mar 4, 2021 8:34 am

Looking at your handle design, I think you might have a Keller Thermal Chief patio glass door. Check the metal air space in between the glass to see if you can find the name "Kel-Pane". That would be the give-away concerning the brand of door.

If it is a Keller thermal break door then it would take the 81-022 roller. However that's no guarantee. The only true way to know what roller you have is to remove the original and compare it with the pictures and dimensions we show on our site.

As for that gap between the doors, I don't believe that weather seal is available anymore. Take a look at the 58-180 stick on foam seal and see if you can cut a piece to the size you need to fit into that gap.

Home Owner from East Brunswick

Mar 13, 2021 12:43 pm

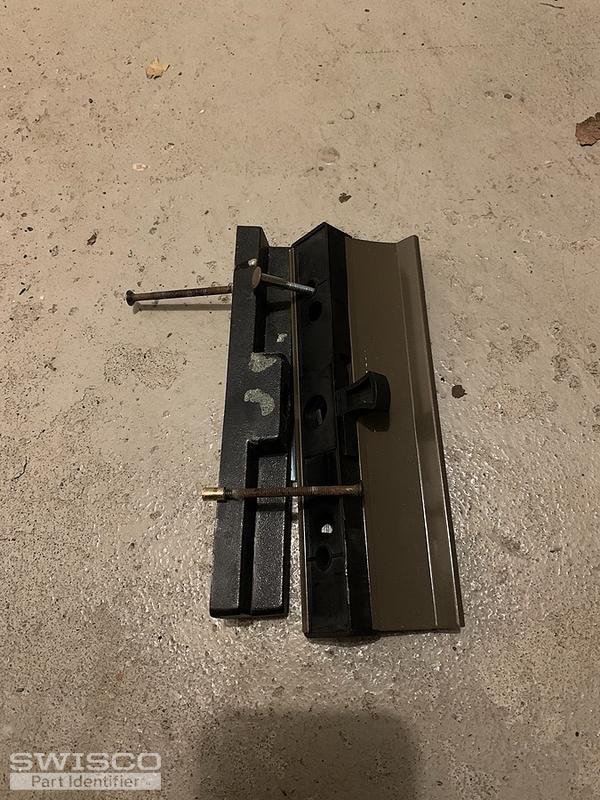

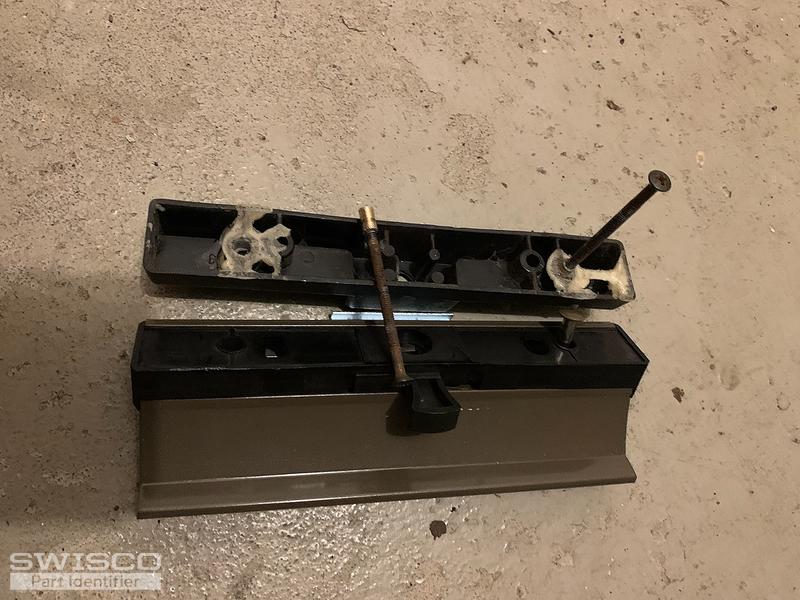

This is the outdoors part of the handle. The screw and brass nut is stuck into the door handle. The two screws are about 5.5 cm long.

Can you identify the parts, handle and two screws along with the brass nut, or do you have the handle integrated with the brass nut?

Let me know if you need any further information.

Thanks

Rudy.

2 user uploaded images

Tom from SWISCO

Mar 15, 2021 9:07 am

Hey, Rudy. As mentioned in my first response to you back on the 1st, I believe our 82-009A can replace your old handle set. This does come with screws. Have you looked this product over yet?
