27 14L BSI Balance shaft

Home Owner from Palm Harbor florida

Nov 26, 2017 10:16 am

I purchased this window from Home Depot about ten years ago and installed myself. This is a single hung loe glass and does not swing out for cleaning. No markings on the glass, 2700 series silver line. Window is 50

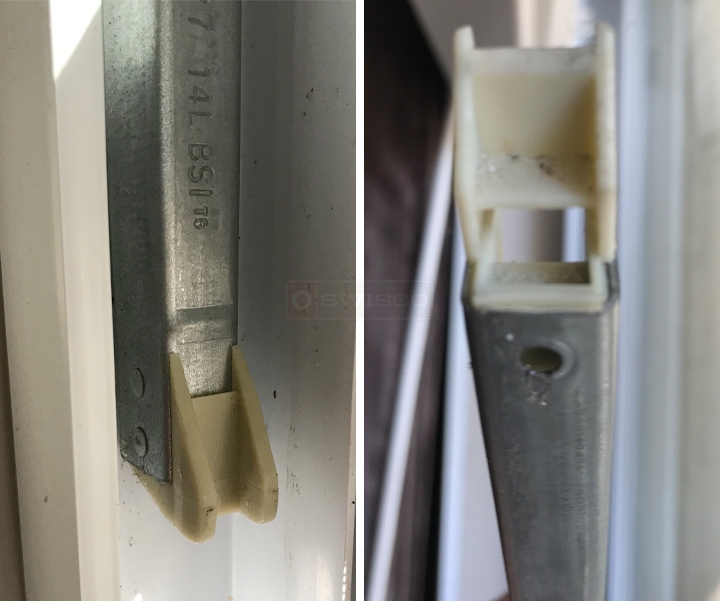

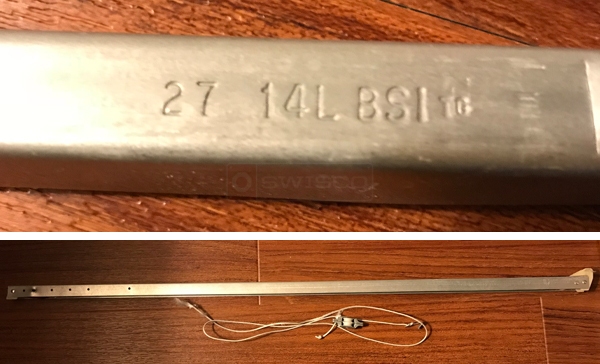

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

Nov 30, 2017 2:21 pm

We may be able to replace this balance. Before we begin, can you show me a clearer picture of the top and bottom nylon attachments? I can't make them out from your photo. Can you also confirm the exact weight of the sash? Thank you!

Home Owner from Palm Harbor Florida

Dec 3, 2017 10:57 am

The sash weighs 44.1 lbs.

Tom from SWISCO

Dec 6, 2017 11:01 am

Thank you! I believe our S390-28 would be a good match. This comes with a 19-002 top attachment and 15-001 bottom attachment. Because of your extra heavy sash, though, yours would need to be specially made. I'm thinking of going with our 2780 option, which can support a sash of 42 through 48 pounds. Does that sound good to you? If so, let me know how many you need and I will email you a special balance order link and price quote.
