Looking

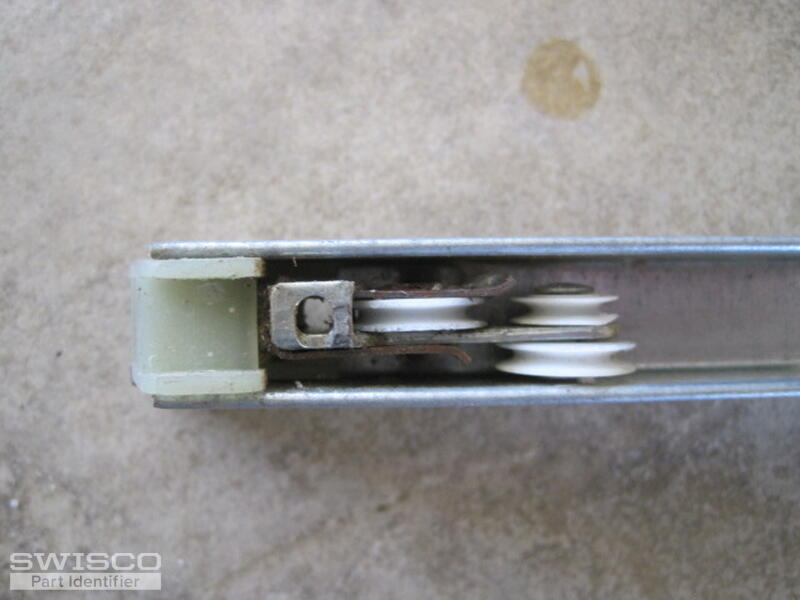

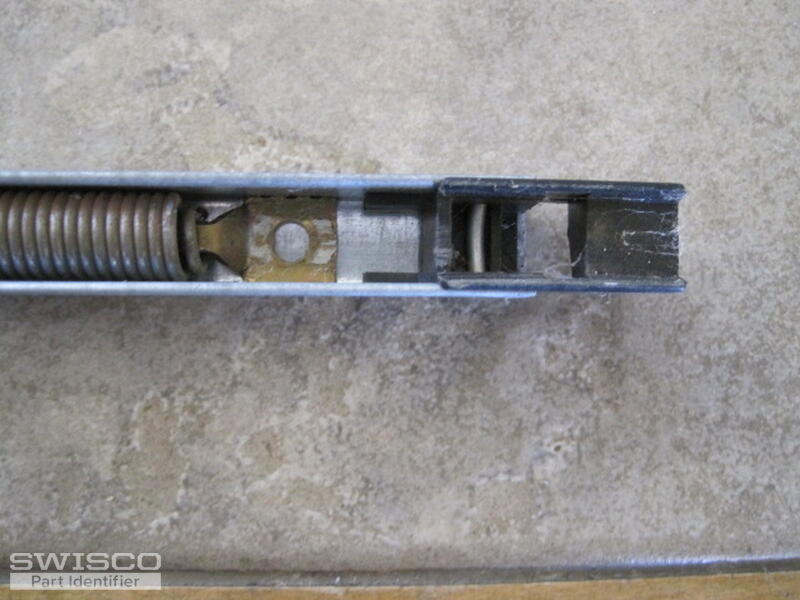

R&R 8 windows. I need new balance channels for 8 windows. Manufacture is out of business (Jordan Windows). Metal channel is 28" x 1/2 " overall length 29"

thank you

Jon

5 user uploaded images

3 Replies

Home Owner from Phoenix, AZ

Apr 1, 2018 2:41 pm

just and FYI that the shoe measures 1/2" X 1 1/8" X 1" and has no wings so it appears to be part #15-001 shoe? Series 390 ??
thanks
Jon

Paul from SWISCO

Apr 2, 2018 10:18 am

It sounds like you are on the right track, Jon. The depth of our 15-001 bottom balance shoes are 1-1/8". If yours should measure the same, then our S390-28 channel balance with a 2730 option should make for a good replacement.
