27 4 KP CALDWELL

A quick learner from Santa Ana CA says:

On the bar it says 27 4 KP CALDWELL

The metal bar measure 28inches .Can you tell me what part number I need to order for replace of that unit. Thanks

Thumbnail of the uploaded file named 20190901_164136.jpg
Thumbnail of the uploaded file named 20190901_164131.jpg
Thumbnail of the uploaded file named 20190901_164120.jpg

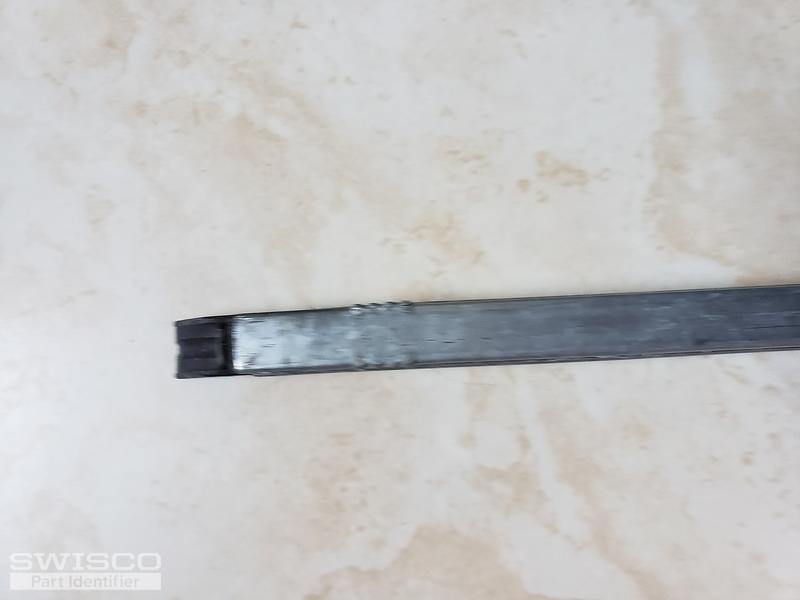

Thumbnail of the uploaded file named 20190901_164124.jpg
Profile picture of Paul
Paul from SWISCO responded:

At first glance, your balance looks most compatible with both our S351-28 and S390-28. The only difference between these two parts lie within the bottom balance shoe. The bottom shoe of the Series 351 measures 1" and for the Series 390 it's 1-1/8". You will need to measure the depth of your bottom shoe, like in the diagram below to determine which balance is the best match for you. Whichever one chosen will use a 2740 option.
