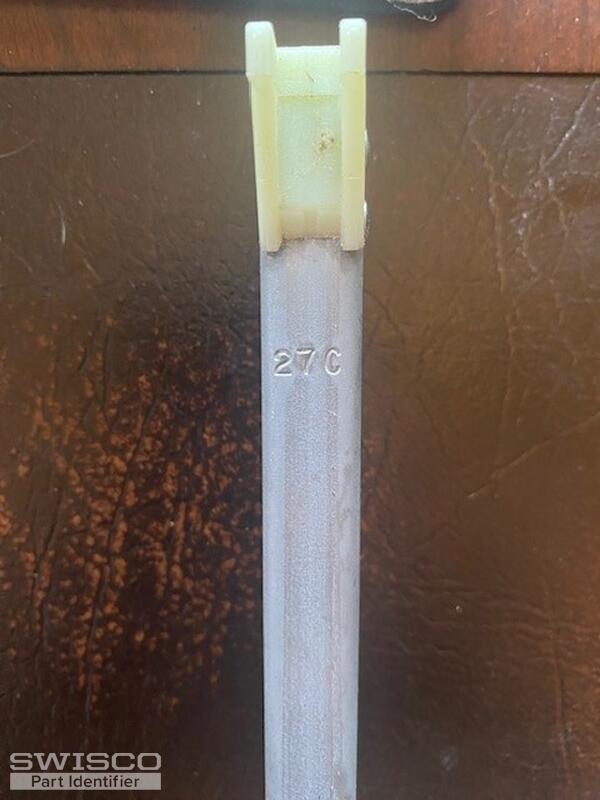

27 C channel

A home owner from Magnolia, TX says:
August 23, 2023

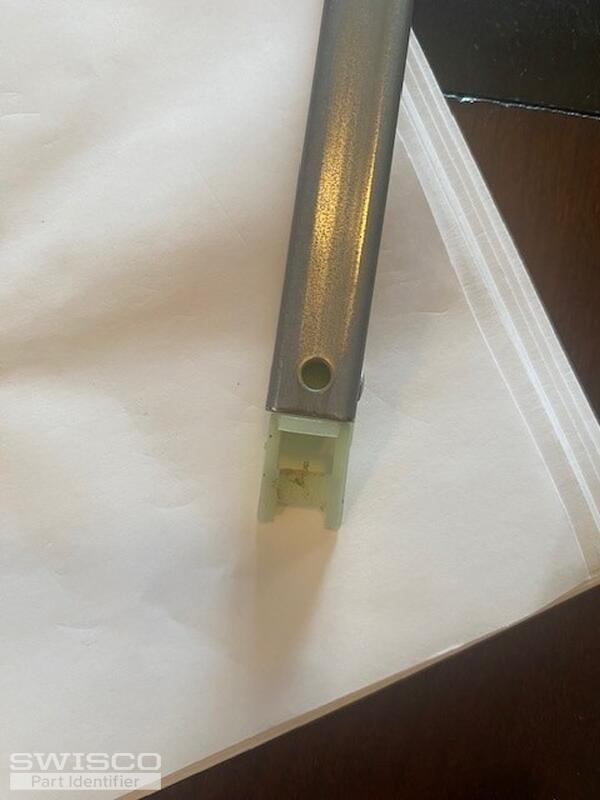

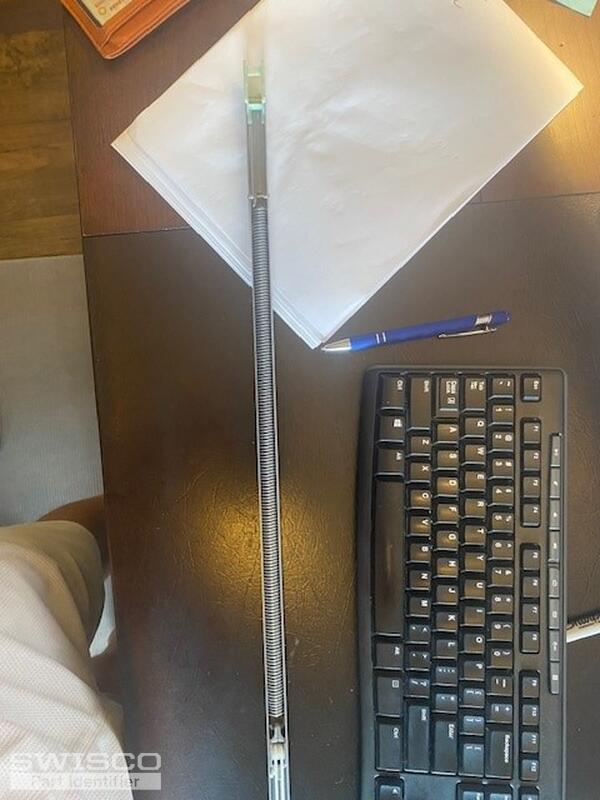

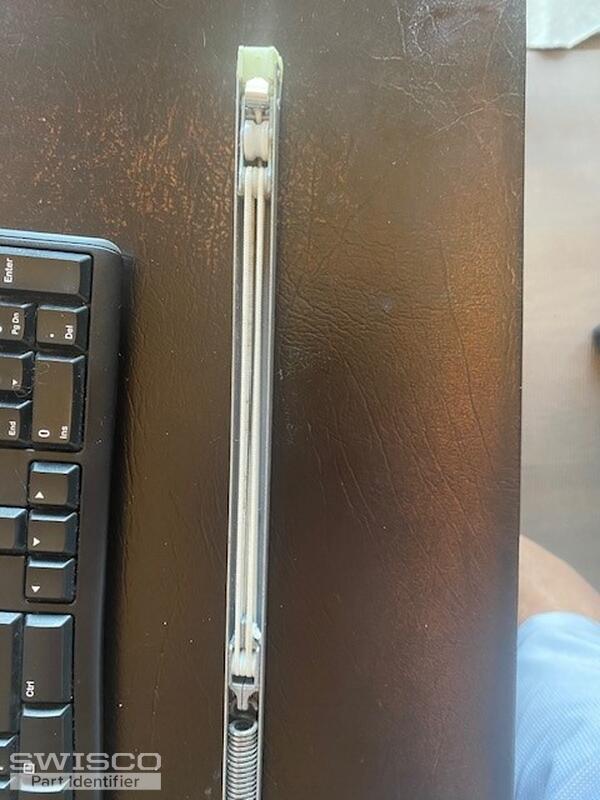

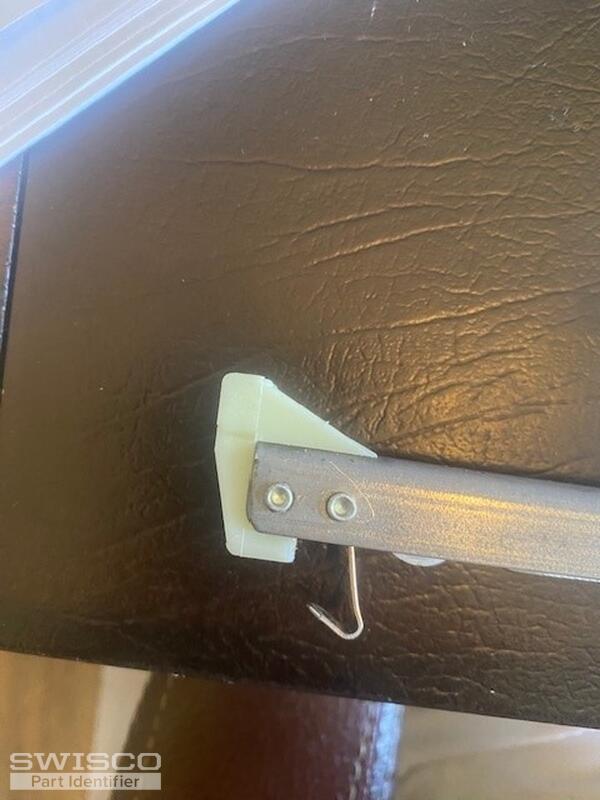

1/2" or actual of 9/16" channel with 28" length
Thumbnail of the uploaded file named 1.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg
Thumbnail of the uploaded file named 4.jpg
Thumbnail of the uploaded file named 5.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 24, 2023

Hello,

It looks like you have either our S351-28 , with a 15-002 bottom attachment, or S390-28 , with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2730 spring strength option for your replacement balances, which will support a window sash between 13-19 lbs. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

28" Series 390 Channel Balance
28" Series 390 Channel Balance
S390-28
$10.97
28" Series 351 Channel Balance
28" Series 351 Channel Balance
S351-28
$10.97
