27" Channel Balance

A handy person from Santa Clarita, CA says:
November 16, 2021

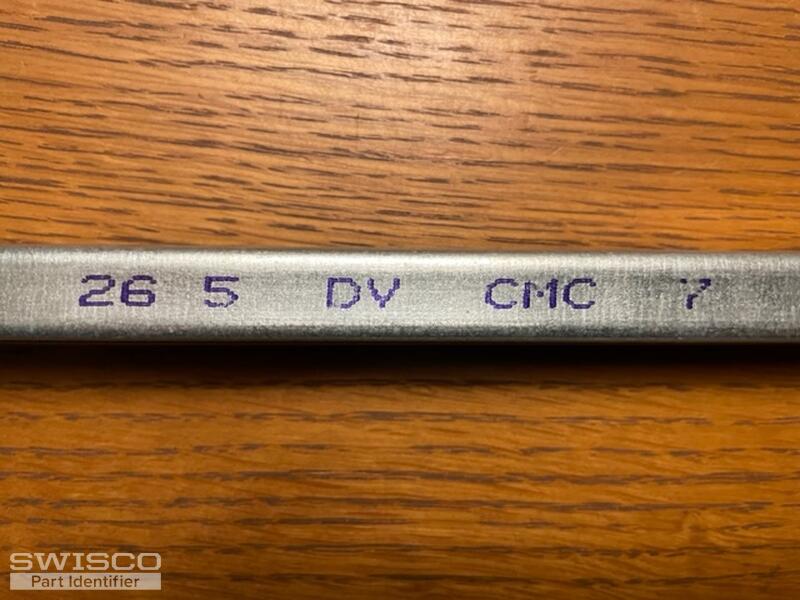

The aluminum rod is 27" long. The only mark is 26 5 DV CMC 7 as shown in one of the images. Thanks in advance.

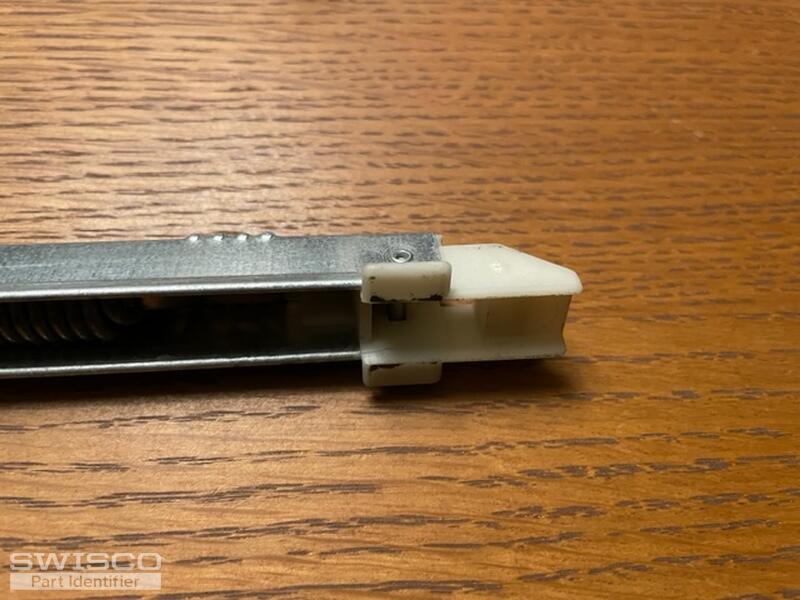

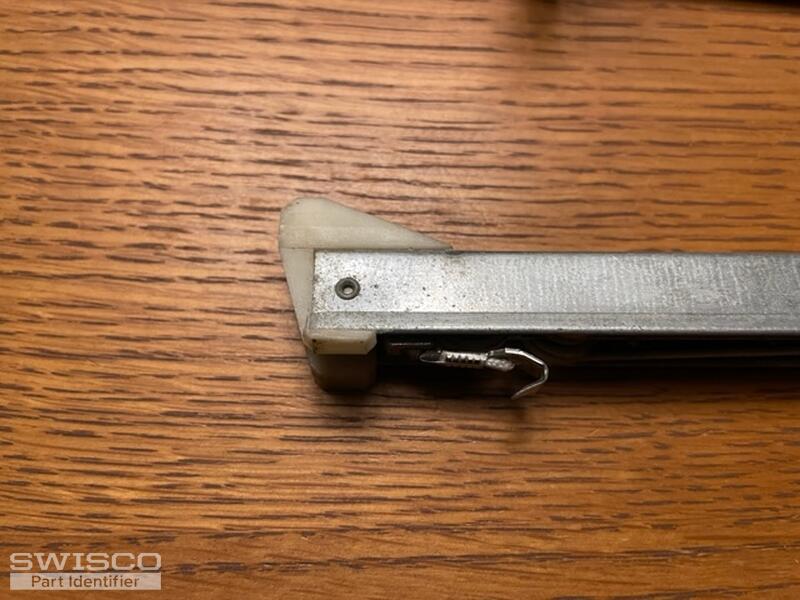

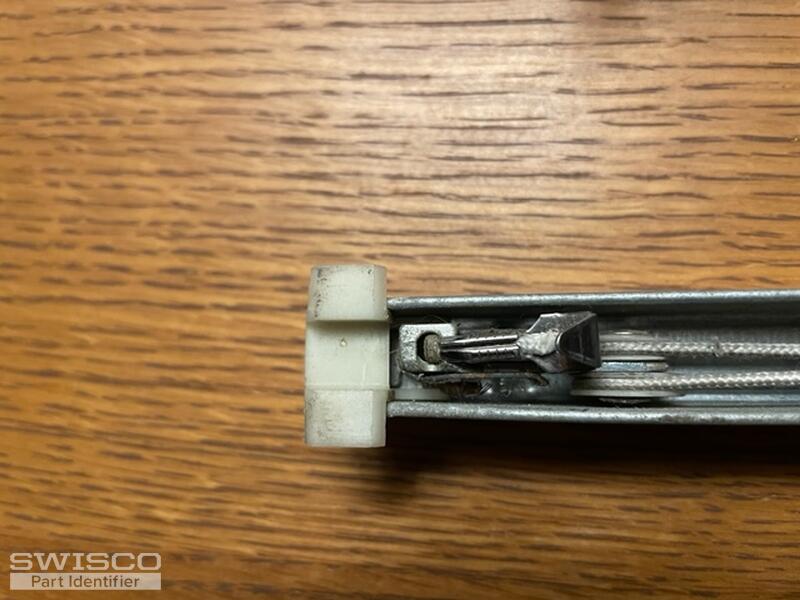

Thumbnail of the uploaded file named IMG_5631.jpg
Thumbnail of the uploaded file named IMG_5630.jpg
Thumbnail of the uploaded file named IMG_5628.jpg
Thumbnail of the uploaded file named IMG_5629.jpg
Profile picture of Emily
Emily from SWISCO responded:
November 18, 2021

Hello!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2650 option for these balances.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
