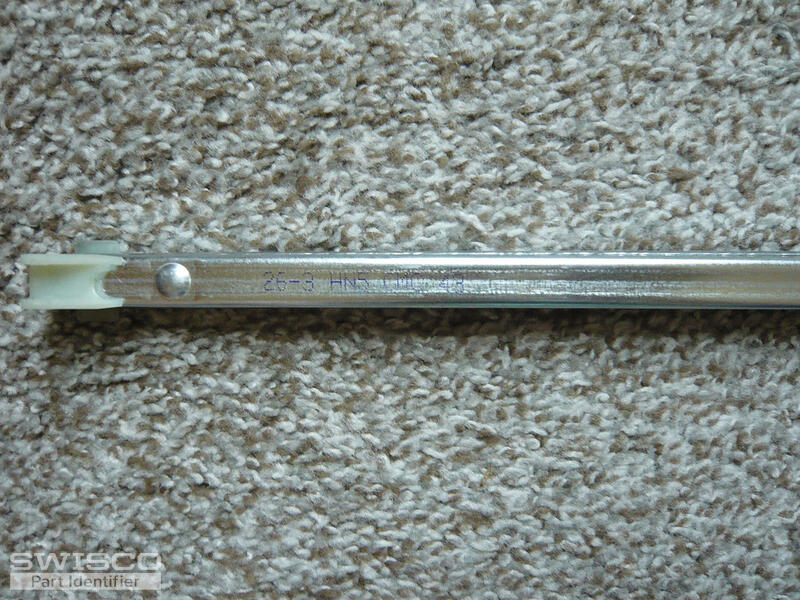

27 inch 3/8 26-3 HN5 CMC 43
Quick Learner from Window
Aug 26, 2021 3:14 pm

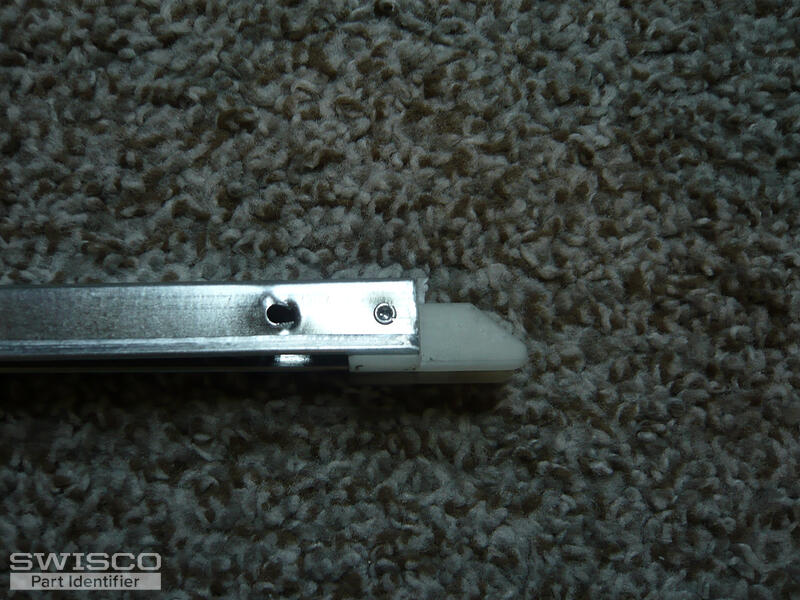

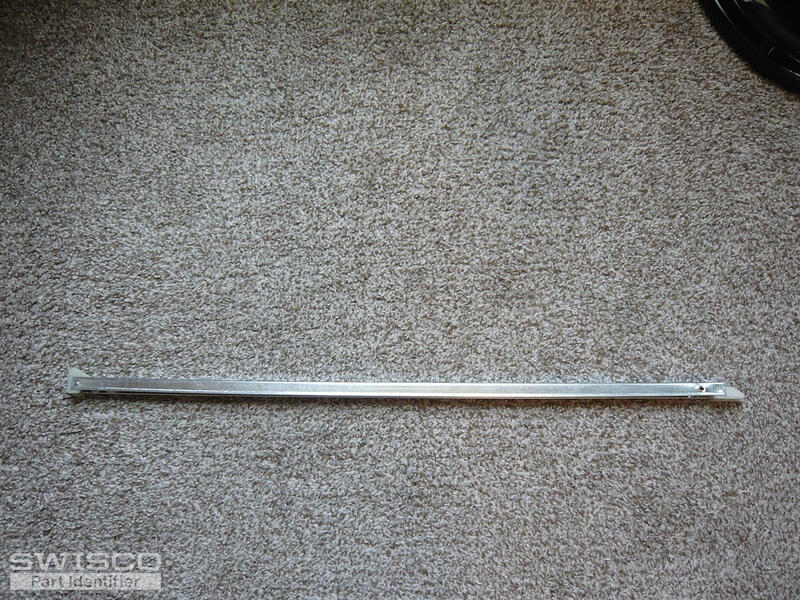

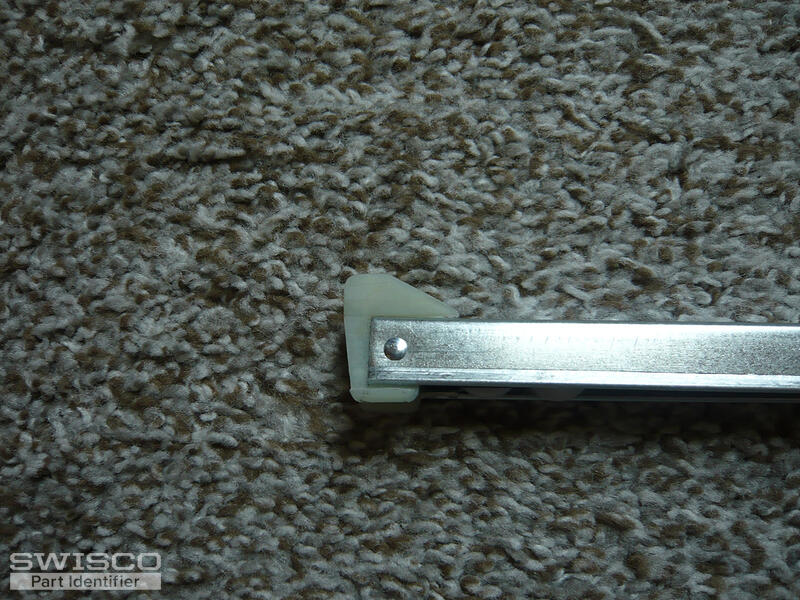

Need to known what part number to order? Non-Tilt Window Channel Balances.
5 user uploaded images
2 Replies
Emily from SWISCO
Aug 31, 2021 1:15 pm
Hi there!
With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2630.
If you have any further questions just let us know!

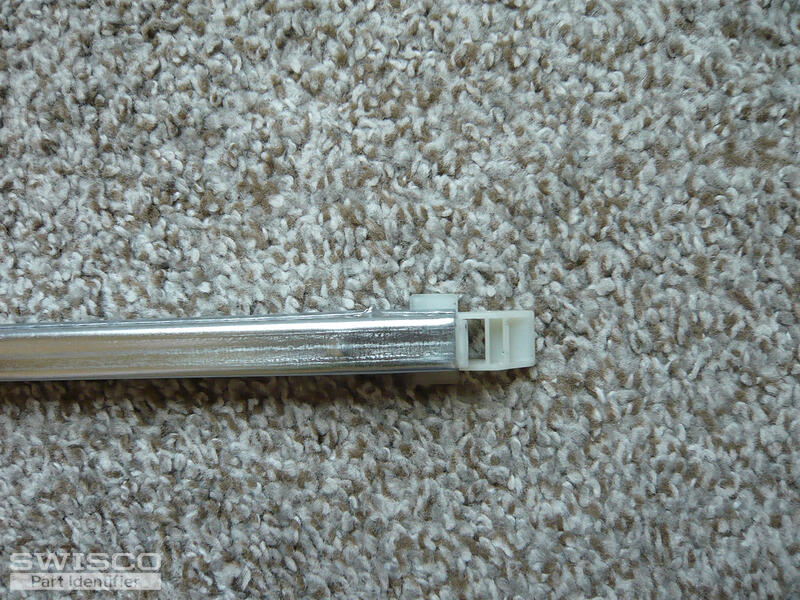

Comparison of the S380 and S385 balance shoes.
