27 inch Caldwell 26 4 KP stamped balance replacement

Home Owner from Ferndale, WA

Jul 28, 2024 5:54 pm

Hello

I would like to order two window balances to replace old ones. The old balances are stamped. "26 4 KP CALDWELL". They are 27 inches long. Any help with selecting the correct replacement would be wonderful.

Thanks
Tobin

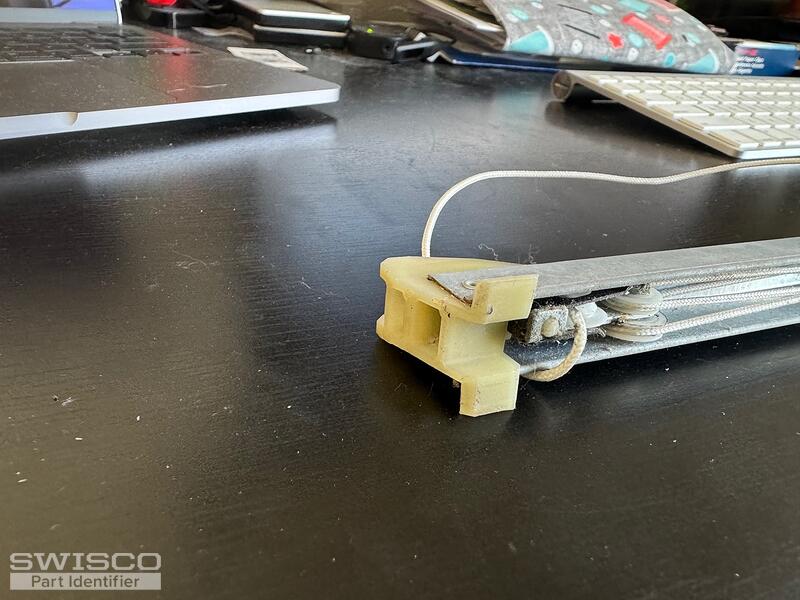

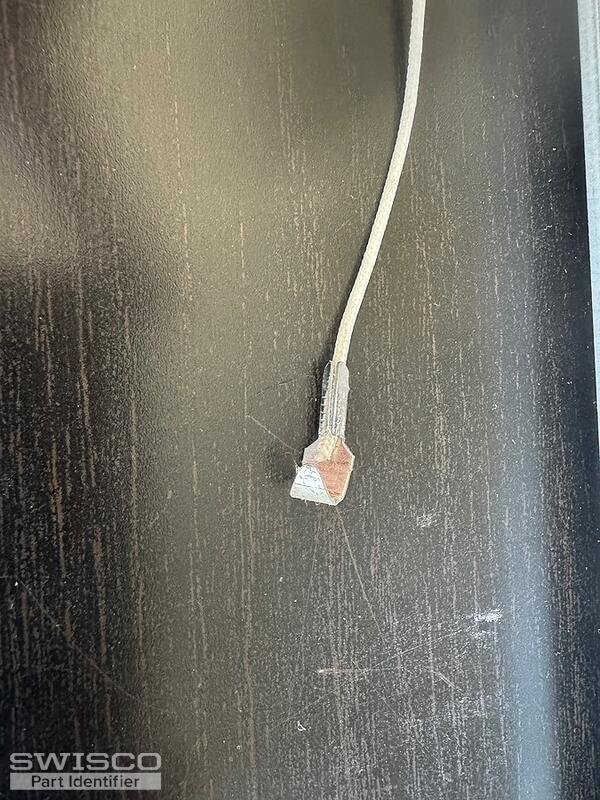

5 user uploaded images

4 Replies

Bob from SWISCO

Jul 28, 2024 10:38 pm

Hey Tobin. I'm sure we can help, but I'd like to clarify one further detail. Can you show me the point in the guts or underside of the metal channel where the metal spring and pulley system connect? Once I verify this one feature we should be able to move this along. Many thanks.

Home Owner from Ferndale, WA

Jul 31, 2024 8:33 pm

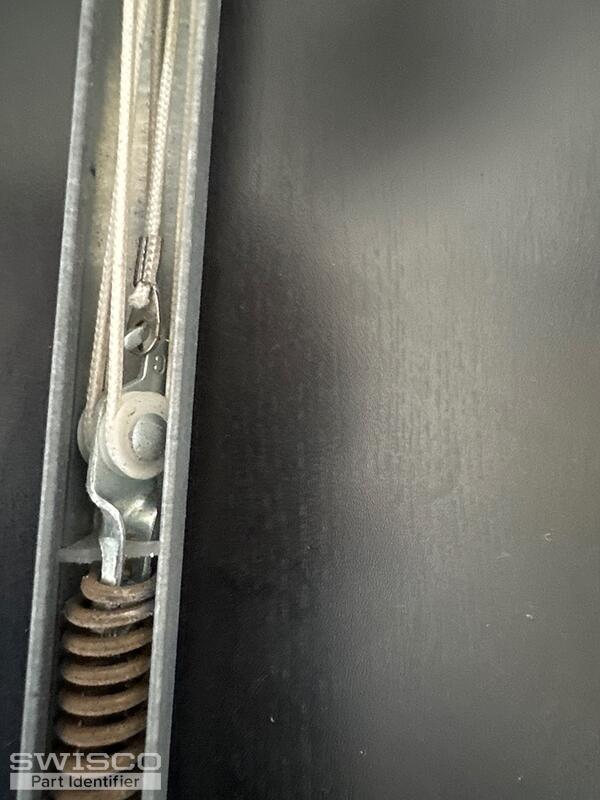

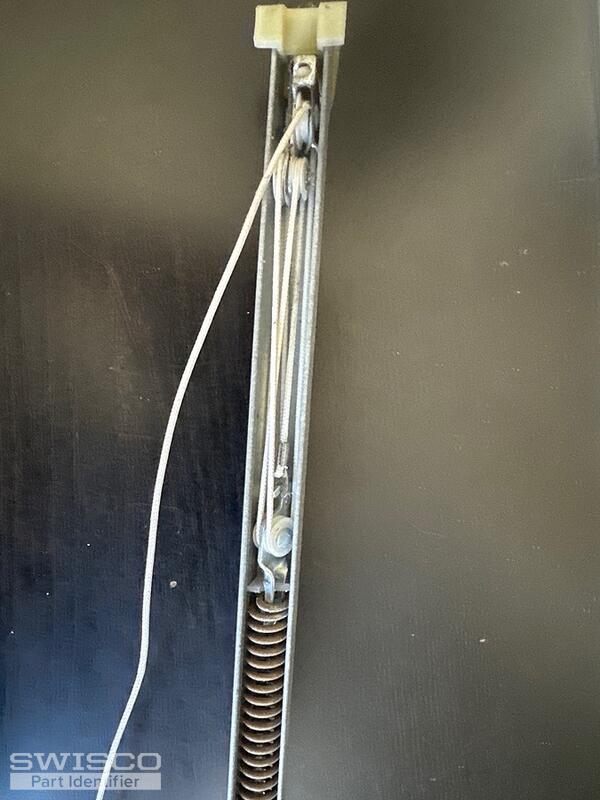

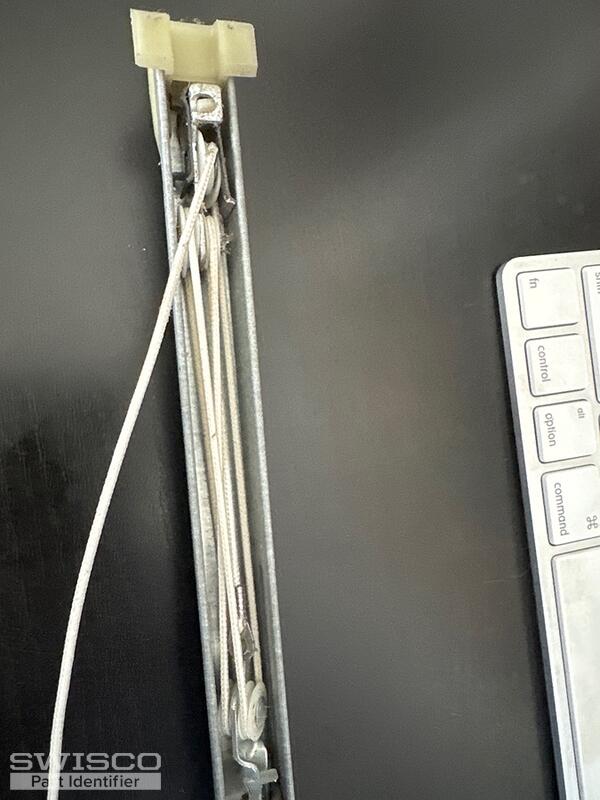

Added updated photos. Thanks - Tobin

3 user uploaded images

Bob from SWISCO

Aug 1, 2024 11:14 am

That's a huge help, thanks! Based on what I see here, you have either our S380-27 or S385-27, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
